BUILT-IN PRO 48 INTEGRATED WINE
Custom Panels—ICB424G
For model ICB424G, the custom door panel will attach
directly to the door frame with screws through a series of
pre-drilled holes.
Refer to the charts for panel requirements and dimensions.
PANEL REQUIREMENTS
PANEL WEIGHT MAX
ICB424G 5 kg
PANEL THICKNESS MIN
ICB424G 16 mm

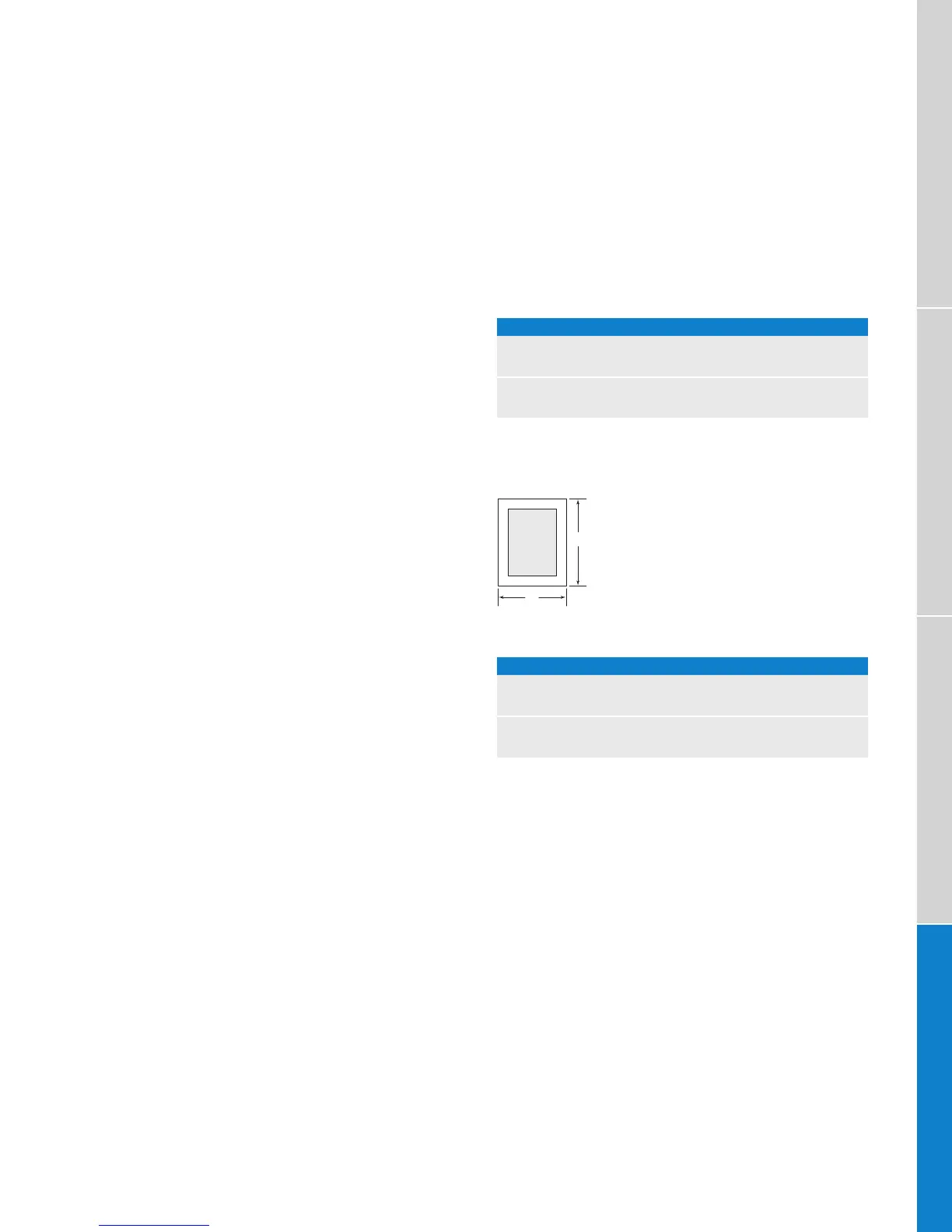

OVERLAY PANEL DIMENSIONS
H
W
AA
A
ICB424G
PANEL DIMENSIONS
MODEL W H
ICB424G 603 mm 764 mm
STILES / RAILS (MIN) A
ICB424G 57 mm
DOOR CLEARANCE
Model ICB424G can be installed ush with surrounding
cabinetry. Depending on the thickness of the overlay door
panel, it may be necessary to install the unit 6 mm beyond
the front surface of adjacent cabinetry to prevent interfer-
ence when the door is opened to 145°. Refer to the full-
scale template on page 65.
Custom Panels
For overlay, integrated and ush inset applications, custom
door panels must be provided. Handle hardware must also
be provided for overlay, integrated and ush inset applica-
tions. Refer to panel requirements and custom panel dimen-
sions charts for your specic model and design application.
Do not install a solid panel on a glass door unit. A solid door
is available as a sales accessory (except model ICBWS-30)
and must be installed if a solid panel is being specied.
Service may be required to install the door. Contact an
authorized Sub-Zero dealer for more information. Overall
dimensions are the same for glass and solid door panels.
Finish all sides of the custom panels. They may be visible
when the door is open or through the window of glass door
models.
Model ICB424FSG has a nished stainless steel exterior
that is designed to be used in a freestanding application.
