Overlay and Flush Inset Panels—ICBWS-30

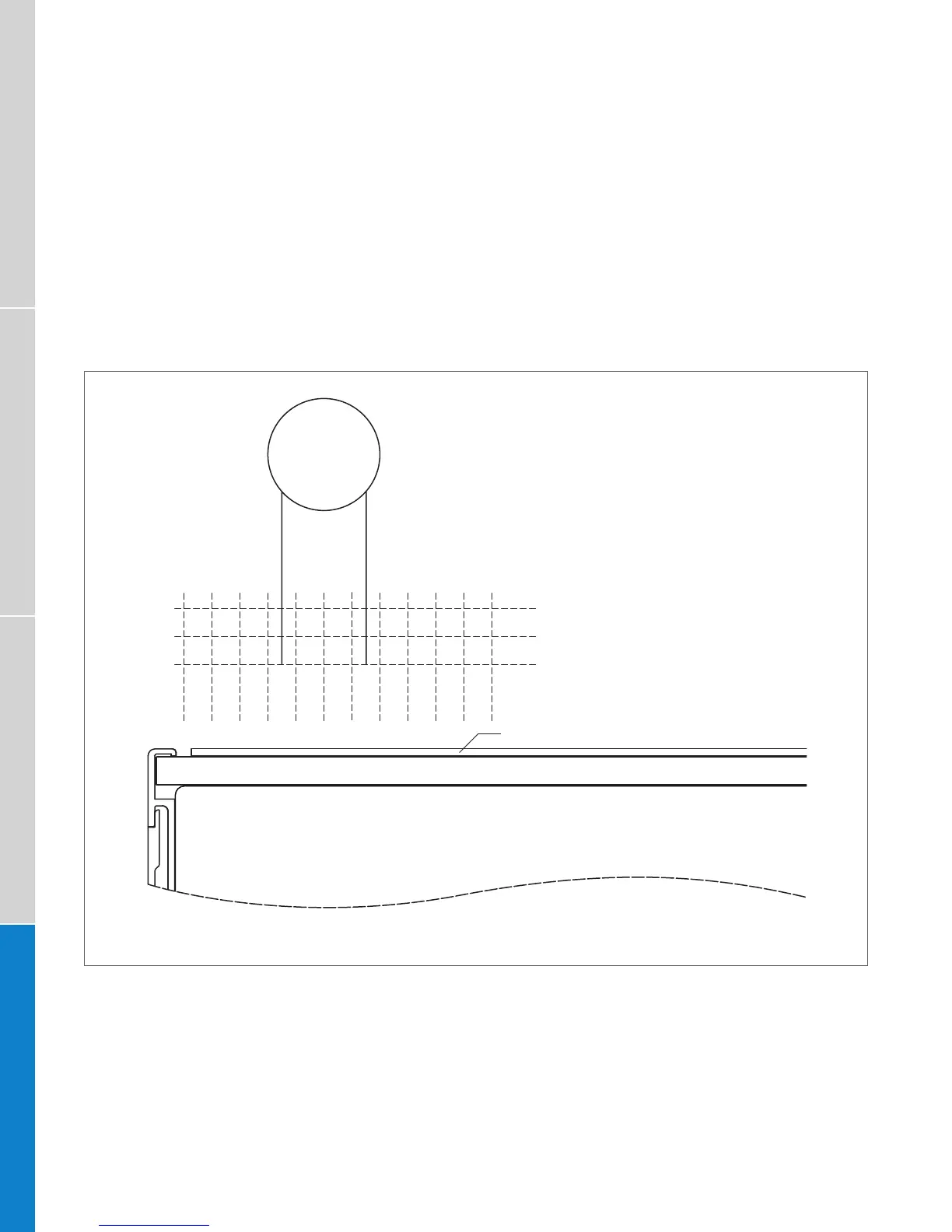

FULL-SCALE TEMPLATE
Overlay and ush inset panels must be a minimum of 16
mm thick to support mounting the handle. Panel thickness
does not include backer and spacer panel. Mount handle
close to the opening edge of the door.
Overlay and ush inset panel thickness.
6 mm BACKER PANEL
DOOR
DEPTH OF TUBULAR
AND PRO HANDLES
25
mm
76
mm
32 mm PANEL
25 mm PANEL
19 mm PANEL
51
mm
3 mm
SPACER PANEL
WINE STORAGE
WINE INTEGRATED PRO 48 BUILT-IN
