subzero.com | 67
BUILT-IN PRO 48 INTEGRATED WINE
WINE STORAGE
606 mm
TO REAR OF UNIT
OVERALL WIDTH OF UNIT
32 mm
38 mm
44 mm
0 mm
25 mm
51 mm
57 mm
63 mm
70 mm
76 mm
83 mm
89 mm
6 mm
13 mm
19 mm
19 mm
THICK OVERLAY PANEL
(TYPICAL)
6 mm
BACKER PANEL
25 mm
THICK PANEL
25 mm0
SCALE

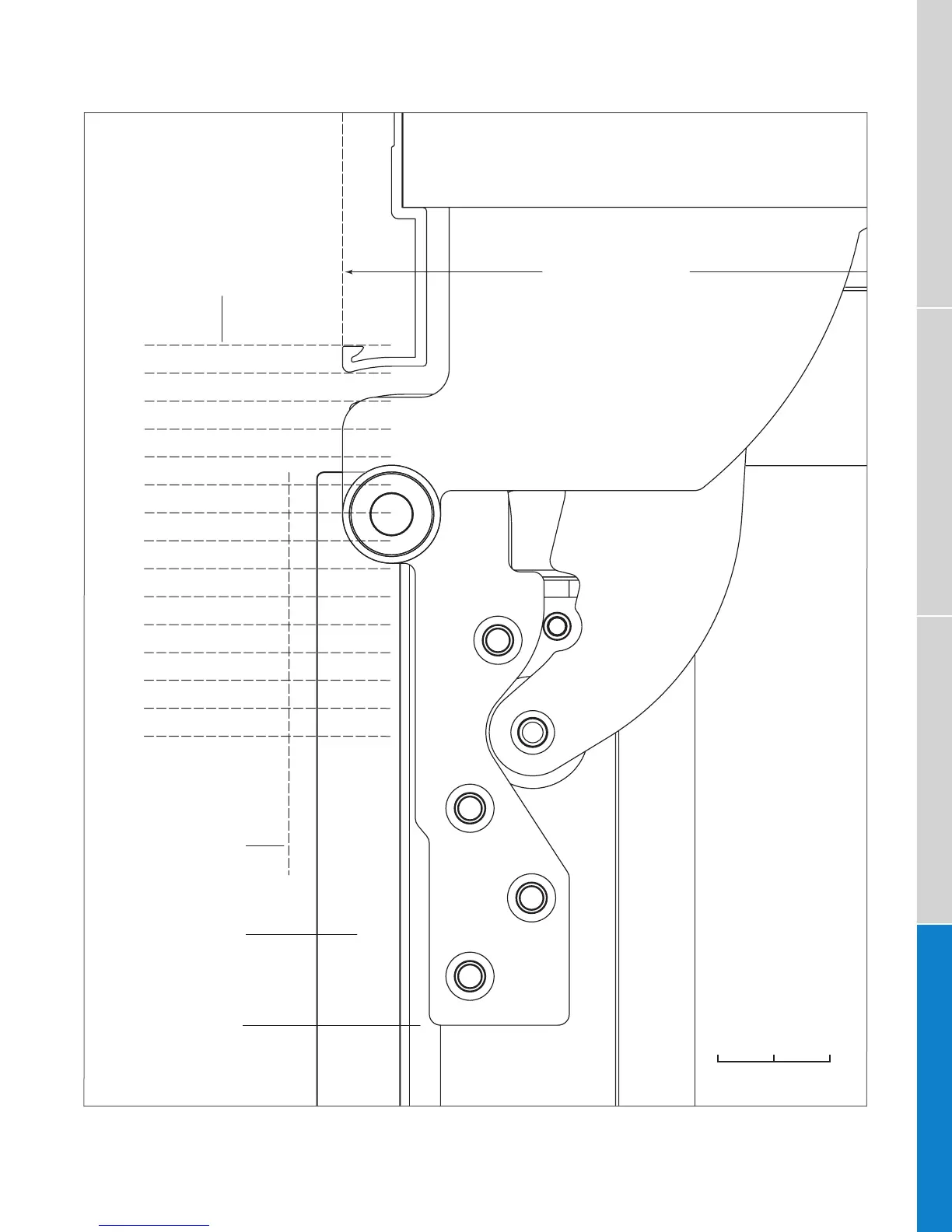

90° door opening (top view).
Overlay
Application—ICBWS-30
FULL-SCALE TEMPLATE
