BUILT-IN PRO 48 INTEGRATED WINE
WINE STORAGE
32 mm
FILLER STRIP
APPROX PROFILE OF
STAINLESS STEEL WRAPPED
DOOR AND HANDLE
DOOR
OPEN 110°
DOOR
CLOSED

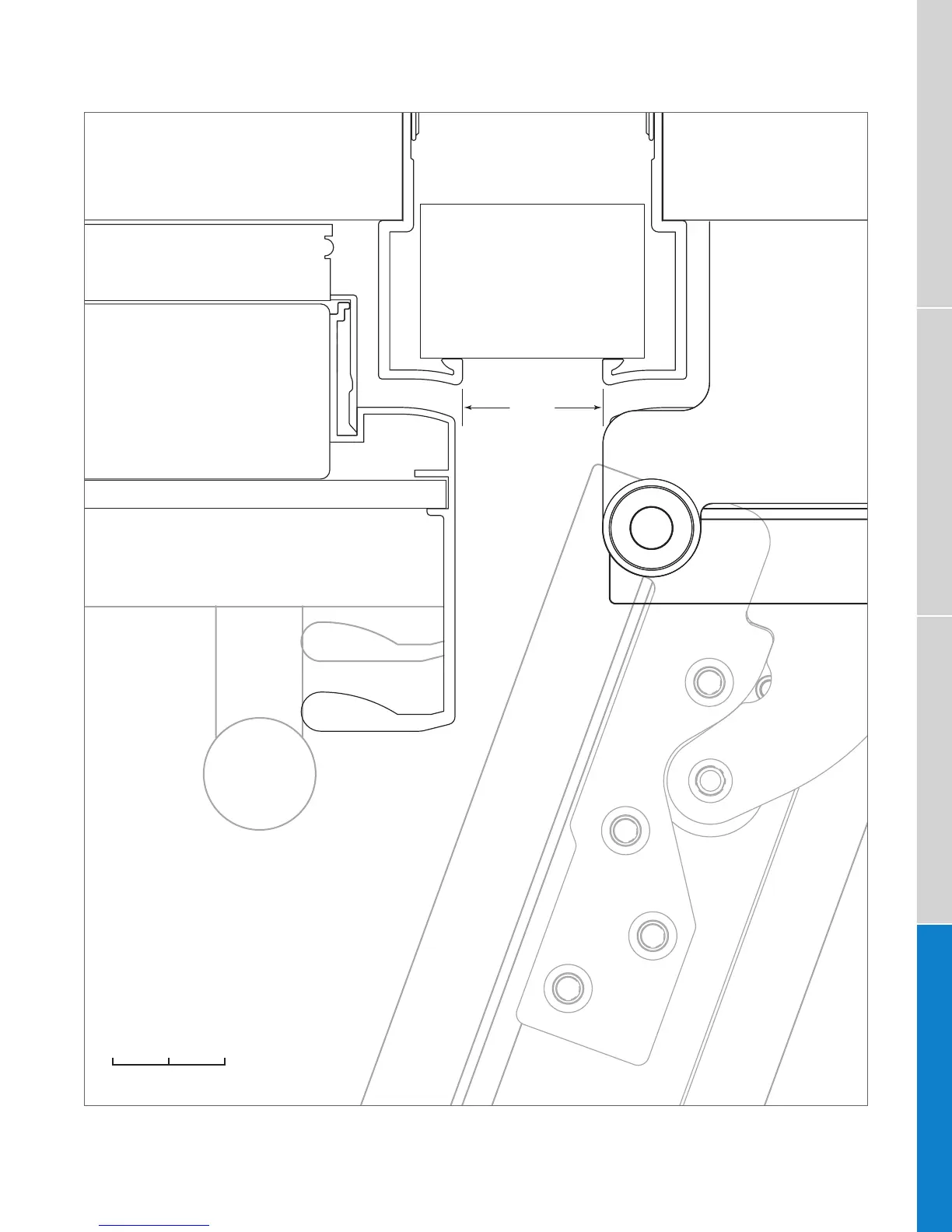

Dual standard installation (top view).
Dual Standard Installation—ICBWS-30
FULL-SCALE TEMPLATE
Typical overlay or stainless steel dual installation
with ller strip at maximum 110° door opening.
Panel thickness may require a 90° door stop.
25 mm0
SCALE
To Next Page
