Sub-Zero ICBBI-36R

70 | English
WINE STORAGE
38 mm
13 mm
FILLER STRIP
PROFILE OF
19 mm
FLUSH INSET PANEL
AND TUBULAR HANDLE
DOOR
CLOSED
DOOR
OPEN 110°

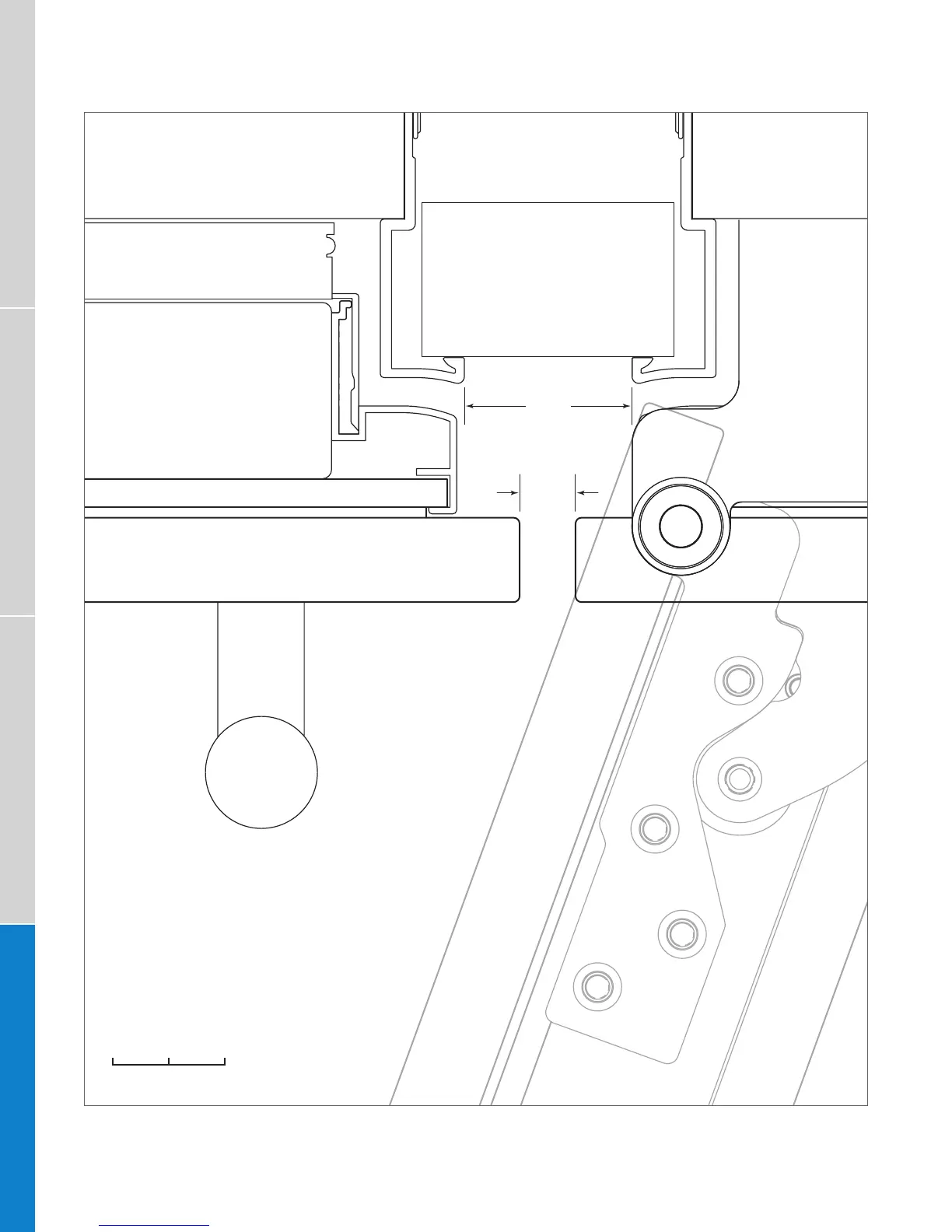

Dual ush inset installation (top view).
Dual Flush Inset Installation—ICBWS-30
FULL-SCALE TEMPLATE
Typical ush inset dual installation with ller strip at
maximum 110° door opening. Panel thickness may
require a 90° door stop.
25 mm0
SCALE
