S U B - Z E R O I C E M A C H I N E I N S T A L L AT I O N
I N S TA L L AT I O N
I N S T A L L AT I O N P R O C E D U R E
1)
Prepare the site by following the instruc-
tions under Electrical Requirements and
Plumbing Requirements on pages 7–9.
2)
Remove ice machine from carton.
3)
Inspect for damage.
4)
Remove literature/warranty packet and
drain hose from inside the ice machine.
5)
Adjust leg levelers. Refer to Leveling on
page 12.
6)
Reverse door if desired. See pages 12–13.
7) Gravity drain model:
Install drain hose to
drain on back of ice machine and route to
open site drain. Refer to Plumbing Require-
ments on pages 8–9.
Pump model:
Route drain tubing through
drain fitting on the back of the ice machine
and install drain hose on drain pump.
Route other end of drain tubing to drain
site. Refer to Plumbing Requirements on
pages 8–9.
8)
Use compression fitting to connect the
Water Inlet on back of ice machine to the
prepared
1
/4" ID cold water line. Refer to
Plumbing Requirements on pages 8–9.
9)
Open the shut-off valve on the water line.
10)
Check all visible connections for water
leakage. Failure to do so could cause
flooding.
11)
Connect electrical plug to grounded (three-
prong), polarized outlet. See Electrical
Requirements on page 7.
12)
Place ice machine back in position and
check leveling again. Make any necessary
adjustments.
Connect to drain
The ice machine must be grounded in
accordance with national and local
electrical codes. Do not use an extension
cord or adapter.
Improper water supply and drain connec-
tions can result in personal injury and
substantial property damage. These
connections are the responsibility of the
owner/operator.

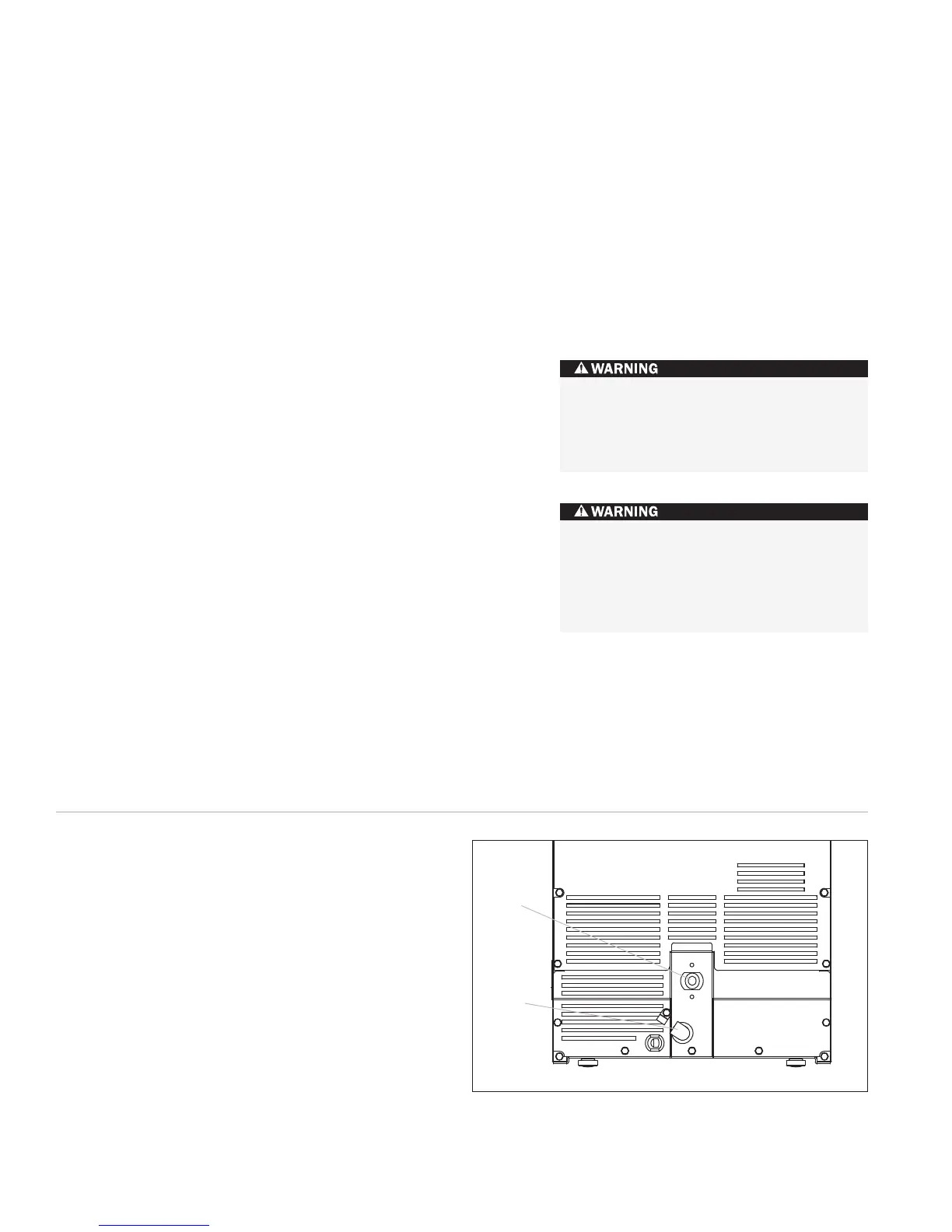

Drain
Fitting
Water
Inlet
To Next Page
