S U B - Z E R O I C E M A C H I N E I N S T A L L AT I O N
I N S TA L L AT I O N
13)
Prepare sanitizer solution and sanitize
the ice machine according to In Place
Cleaning/Sanitizing Steps 6 and 7 on
page 25.
14)
Put one gallon (4 L) of cold water into a
container that will easily pour under the
l
ifted water shutters. Refer to page 17 to
identify water shutters. Open shutters
and add one gallon (4 L) of cold water.
Watch for proper drainage.
15)
Press
POWER
button.
16)
At initial start-up, ice machine will need
approximately 30 minutes to freeze ice
and up to 5 minutes to harvest the ice.
Wait for first cycle of cubes to drop to
ensure proper installation.
The unit must be allowed to have ventilation
through these fins. The door panel may hang
in front of the fins, but a decorative kickplate
must not cover the fins.
The kickplate can be painted another color, if
you choose. Follow these easy steps:
Rough up surface to be painted with fine
grit sandpaper.
Wipe with alcohol to ensure it is clean
and dry.
Use an appliance or industrial grade, oil
base, high gloss enamel paint.
Do not cover the kickplate area.
15
1
/4"min
(387)
OPENING WIDTH
TOP VIEW
TOP VIEW
FRONT VIEW
1
/8" (3)
DRAIN
TUBE
WATER
INLET TUBE
SHUT-OFF
VALVE
DRAIN
TUBE
WATER
INLET
TUBE
SHUT-OFF
VALVE
DRAIN

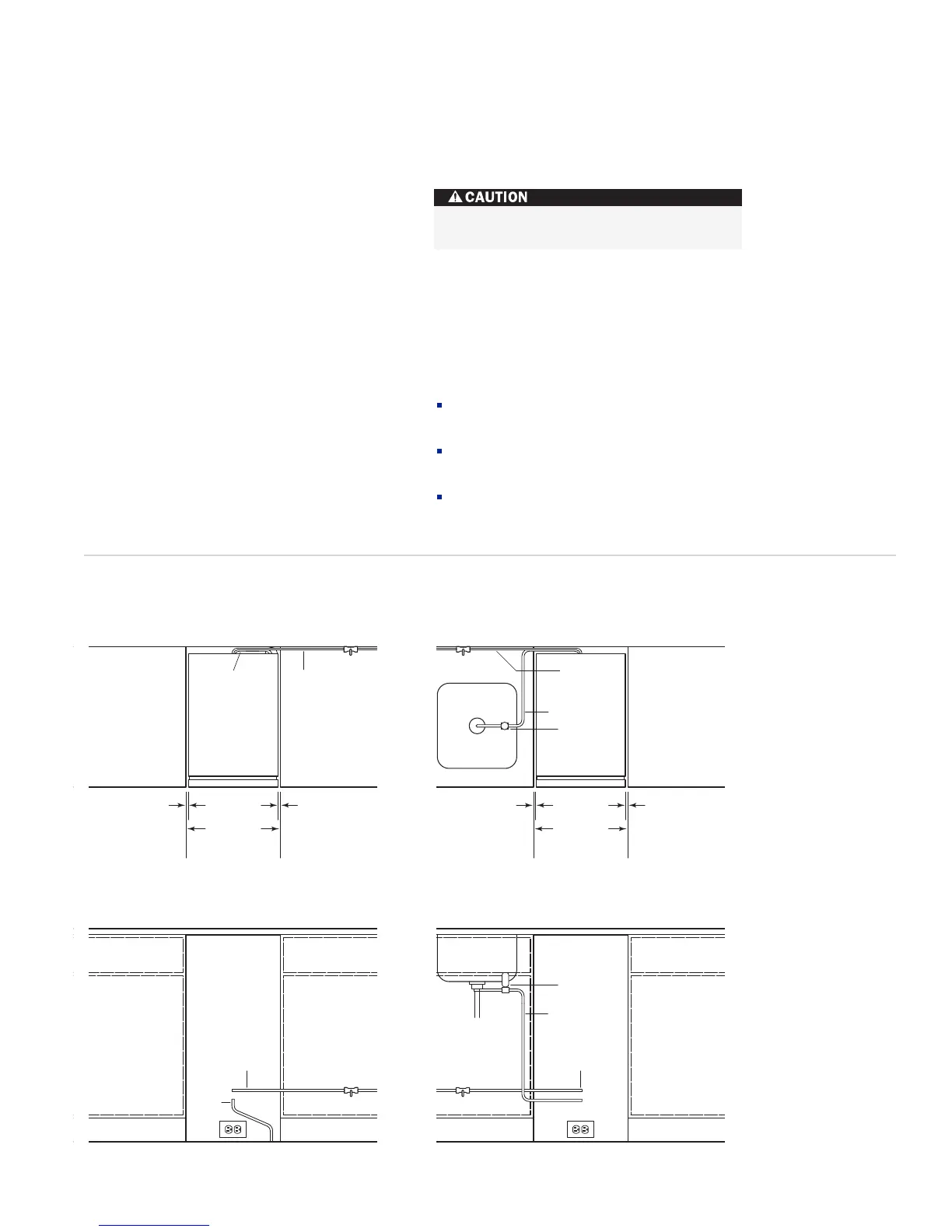

I N S T A L L AT I O N S P E C I F I C AT I O N S
Gravity drain model
15
1
/4"min
(387)
OPENING WIDTH
TOP VIEW
TOP VIEW
FRONT VIEW
1
/8" (3)
DRAIN TUBE
SHUT-OFF
VALVE
AIR GAP
DEVICE
DRAIN TUBE
AIR GAP
DEVICE
WATER
INLET TUBE
SHUT-OFF
VALVE
WATER
INLET TUBE
I N S T A L L AT I O N S P E C I F I C AT I O N S
Pump model
To Next Page
