12
S U B - Z E R O I C E M A C H I N E I N S T A L L AT I O N
I N S TA L L AT I O N
L E V E L I N G
1)
Adjust the levelers close to desired height.
2
)
M
ove the bin into its final position.
3)
Level the ice machine to assure that the bin
door closes and seals properly. Use a level
on top of the bin. Turn the base of each foot
as necessary to level the bin. Refer to the
illustration below.
S E C U R E T H E I C E M A C H I N E
To secure the ice machine, install two
#8 x
1
/2" flat head screws through each hinge.
Refer to the illustration below.
S I D E P A N E L S
With the Sub-Zero ice machine, you must
securely fasten the side panels to the adjacent
cabinets and floor.
Panels should be fastened to the floor and walls
using ’L’ brackets (hardware not provided). To
help you move the unit into place, rout out an
area in the floor so the ‘L’ bracket will sit flush
with the floor level. Brackets and screws are
provided for mounting the unit to adjoining
cabinets and side panels.
R E V E R S E T H E D O O R S W I N G
The hinged side of the door may be reversed
to the other side if desired.
The Sub-Zero ice machine is shipped with the
door hinged at the right. The door and hinges
a
re designed for placing the hinges on either
the right or the left side of the unit. Moving the
hinges to the left in the pre-drilled holes,
allows the door to pivot from the left side.
Refer to the illustrations below.
IMPORTANT NOTE:
The plastic molding
which covers the top area of the door,
packaged with the ice machine, is required for
this procedure.
1)
To begin, remove the four screws that
secure the door hinges to the ice machine.
Refer to the illustration below.
NOTE:
Remove the shim located between
the cabinet and bottom hinge, this shim
will transfer to the left side bottom hinge.
2)
Remove the hinges from the door by
removing the four screws (two each hinge)
that secure the hinges to the door. Refer to
the illustration below.

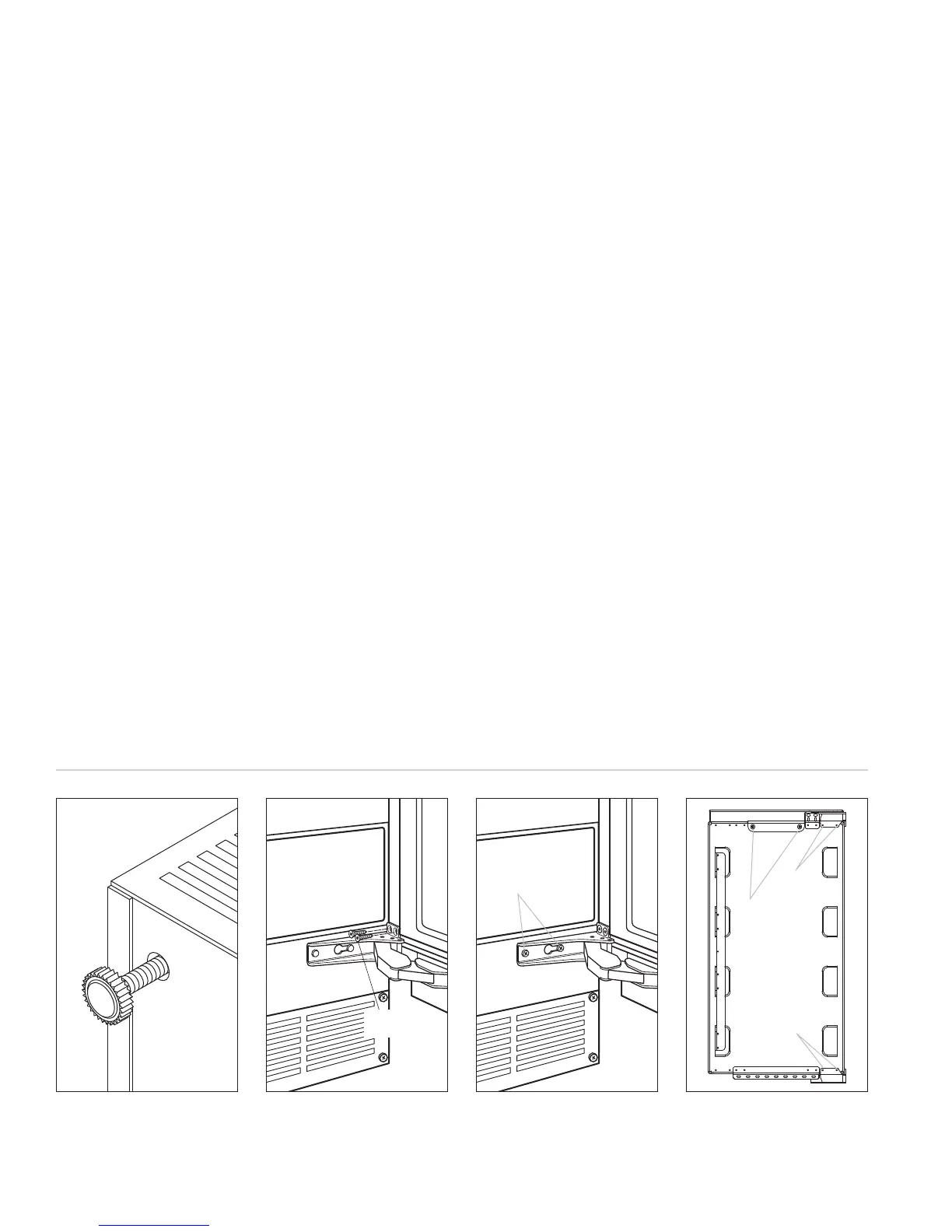

Leg leveler
Securing the ice machine Remove door Remove hinges and plastic
trim piece
Step 1
Step 2
Step 2
Step 3
