Ice Machine Installation 10
Reverse Door Swing
T
he hinged side of the door may be reversed to the other
side if needed.
The ice machine is shipped with the door hinged at the
right. The door and hinges are designed for placing the
hinges on either the right or the left side of the unit.
Moving the hinges to the left in the pre-drilled holes,
allows the door to pivot from the left side.
IMPORTANT NOTE: The plastic molding which covers the
top area of the door, packaged with the ice machine, is
required for this procedure.
1) To begin, remove the four screws that secure the door

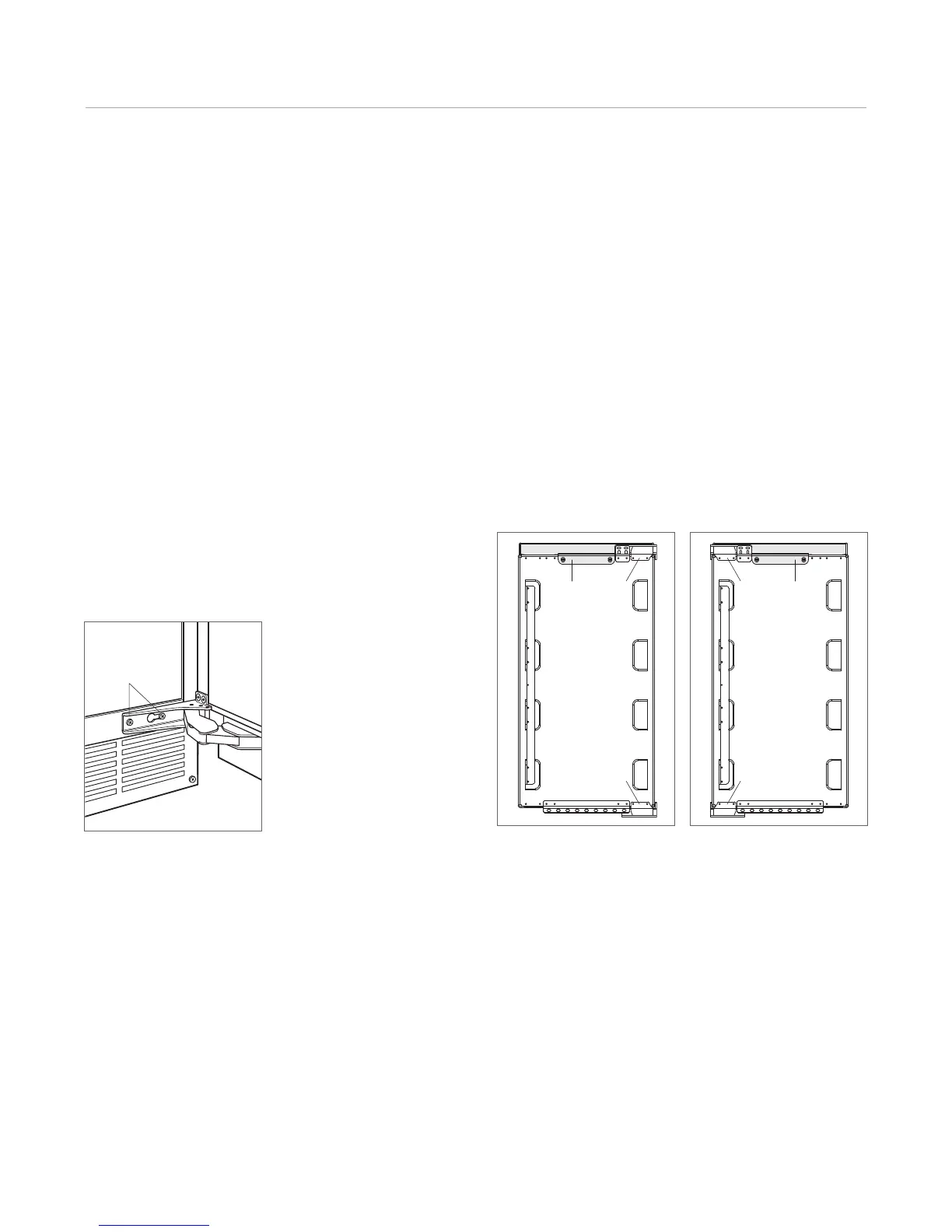

hinges to the ice machine. Refer to the illustration
below. Remove the door. Remove the shim located
between the cabinet and bottom hinge, this shim will
transfer to the left side bottom hinge.
Remove hinges and trim.
2
) Remove the hinges from the door by removing the four
screws (two per hinge) that secure the hinges to the
door. Refer to the illustration below.
3) Remove the right-hand upper trim (shaded area) from
the door by removing the two screws that secure it to
the door. Refer to the illustration below. Replace it with
the left-hand upper trim.
4) Transfer the hinges to the left side of the door and
reinstall. The upper hinge will now be in the lower hinge
position and the lower hinge will now be in the upper
hinge position. Refer to the illustration below.
Transfer hinges.
Remove door.
