Ice Machine Installation 9
subzero.com/specs
Installation
INSTALL THE ICE MACHINE
1) Adjust the leveling legs close to the desired height.
Refer to the illustration below.
2) Reverse the door swing if needed. Refer to steps
outlined on the following pages.
3) Gravity drain models: Install the drain hose (provided)
onto the drain fitting on the back of unit and route to
the open site drain. Refer to the illustration below and
plumbing requirements on pages 6–7.
Pump models: Route drain tubing through the drain
fitting on the back of the unit and install the drain hose
(provided) on the drain pump. Route the other end of
the drain tubing to the drain site. Refer to the illustra-
tion below and plumbing requirements on pages 6–7.
4) Use a compression fitting to connect the water inlet on
back of ice machine to the prepared
1
/4" (6) OD cold
water line. Refer to the illustration below.
5) Open the shut-off valve on the water line. Check all
plumbing connections for leaks. Failure to do so could
result in flooding.
6) Plug the power cord into the grounded receptacle.
7) Level the ice machine to assure that the door closes
and seals properly. Place a level on top of the unit and
turn each leveling leg to raise or lower as needed.
8
) Move the ice machine into its final position.
9) Secure the ice machine by installing two #8 x
1
/2" flat
head screws through each hinge. Refer to the illustra-
tion below.
10) Add 4 oz
(115 ml) of undiluted ice machine cleaner to a
container that will fit under the lifted water shutters.
Refer to the illustration below for location of the water
shuttters.
11) Press the CLEAN key pad. Wait three minutes until
the CLEAN light flashes, then add the prepared sani-
tizer by lifting the water shutters and pouring directly
into the spray area. The ice machine will automatically
time out a ten-minute sanitizing cycle, followed by
eight rinse cycles, and stop. The CLEAN light will turn
off to indicate that the sanitizing cycle is complete.
This entire cycle lasts approximately 30 minutes.
12) Add one gallon
(3.8 L) of cold water to a container that
will easily fit under the lifted water shutters. Lift the
water shutters and pour the water directly into the
spray area. Watch for proper drainage.
13) Press the POWER button.
14) At initial start-up, the ice machine will need approxi-
mately 30 minutes to freeze ice and up to five minutes
to harvest the ice. Wait for first cycle of cubes to drop
to ensure proper installation.

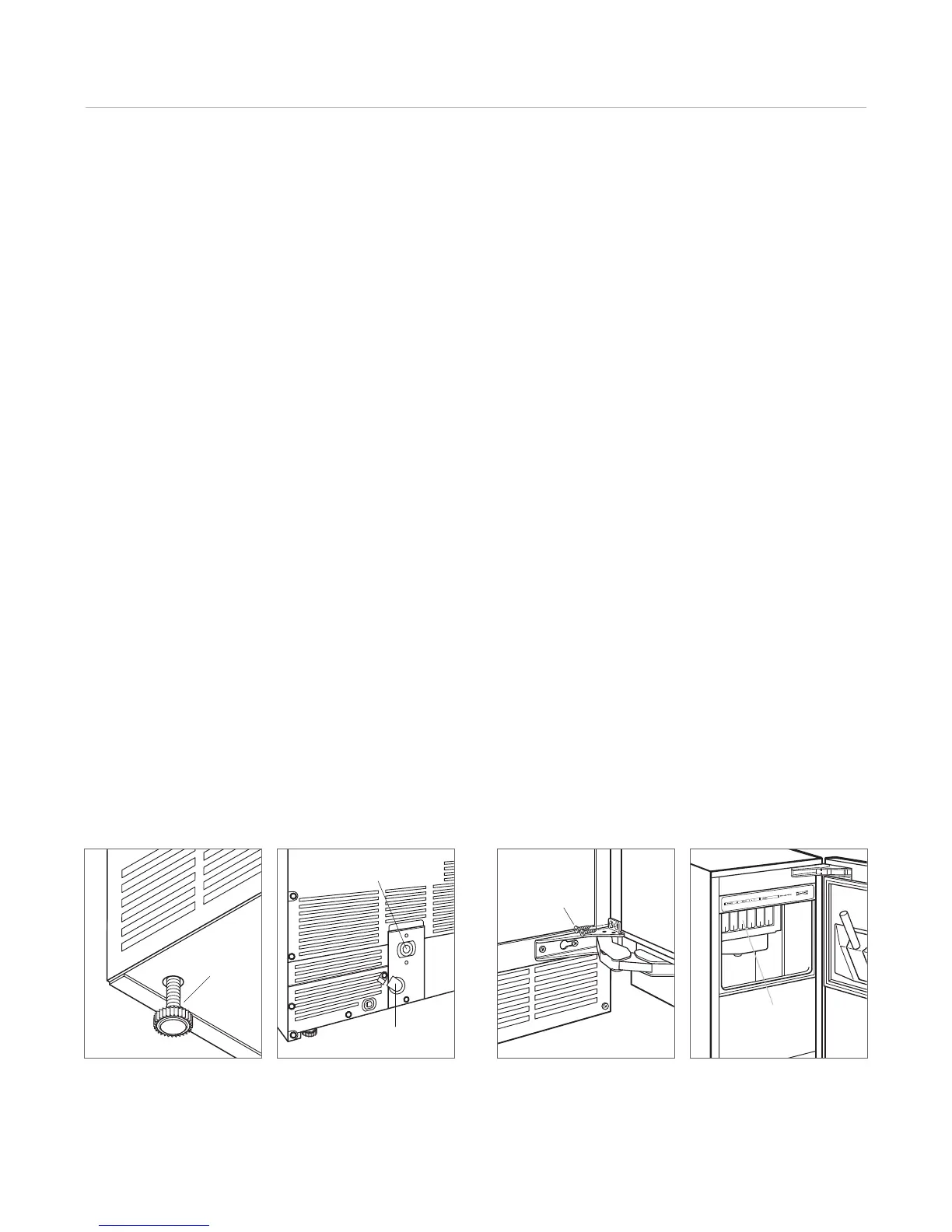

Drain connection.Leveling.
Location of water shutters.Secure ice machine.
WATER
SHUTTERS
To Next Page
