Sub-Zero WINE STORAGE User Manual

subzero.com | 19
MODEL WS-30 SITE PREPARATION

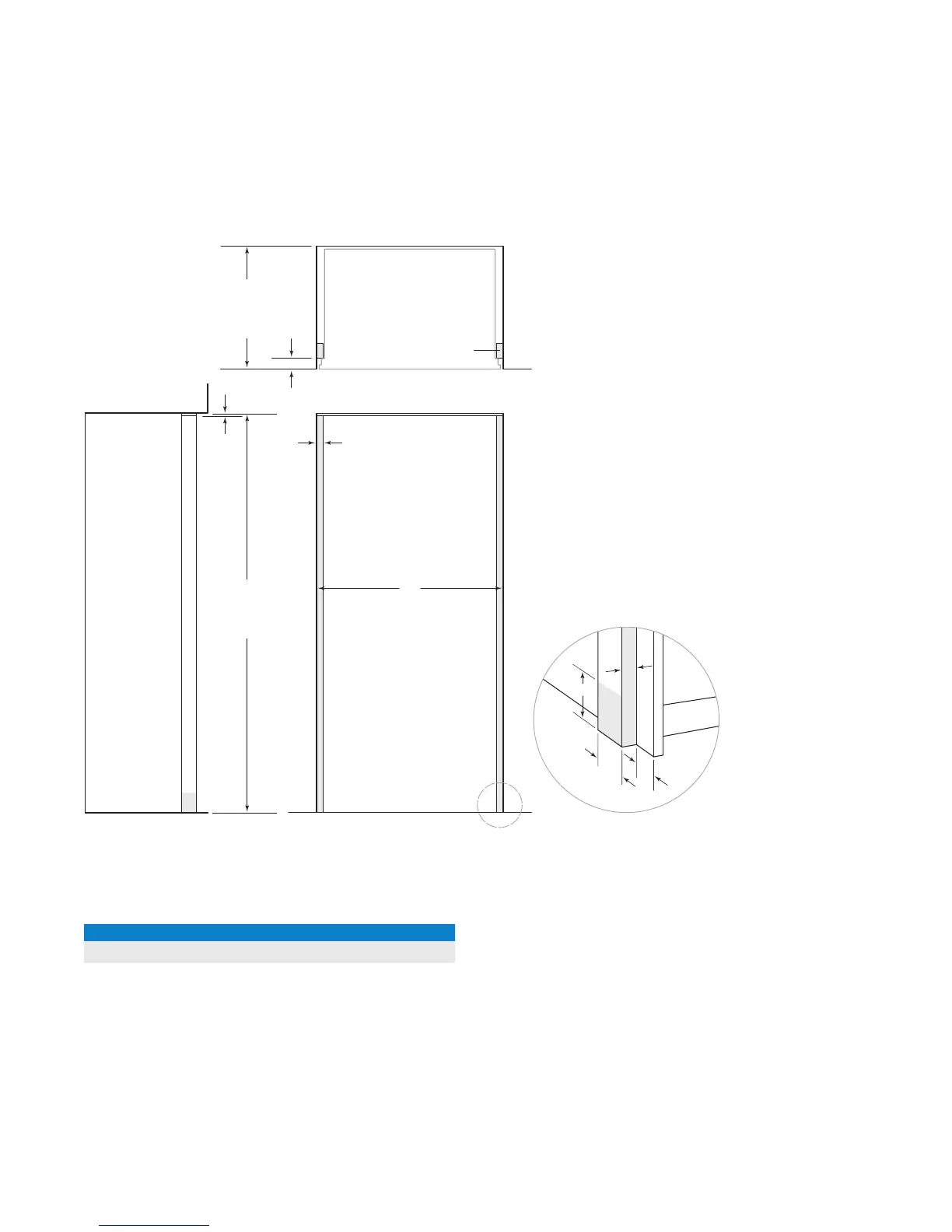

Opening Dimensions
FLUSH INSET INSTALLATION
Dimensions assume a
3
/4" (19) panel thickness. If two units
are installed side by side, refer to page 21.
FLUSH INSET WIDTH W
WS-30 32"
(813)
84"
(2134)
FLUSH
INSET
HEIGHT
1
/4"
(6)
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/16"
(56)
*3
" (76) typical depth. Shaded areas will be visible and should be finished to match cabinetry.
NOTE: Shaded line represents profile of unit with
3
/4" (19) panel.
FRONT VIEW
SIDE
VIEW
TOP VIEW
FINISHED
CLEATS*
1
1
/4"
(32)
W
FLUSH INSET WIDTH
4" (102)
1
1
/4"
(32)
2
3
/16"
(56)
3"
(76)*
TYPICAL
