23
Preparation
Uncrate the unit and inspect for damage. Remove the wood
base and discard shipping bolts and brackets. Remove and
recycle packing materials. Do not discard the kickplate, anti-
tip brackets and hardware.
Completely retract the front leveling legs to allow the unit to
be moved into position. The front and rear leveling legs can
be adjusted from the front once the unit is in position.
Remove the drain pan to avoid damage, and allow for
proper appliance dolly placement.

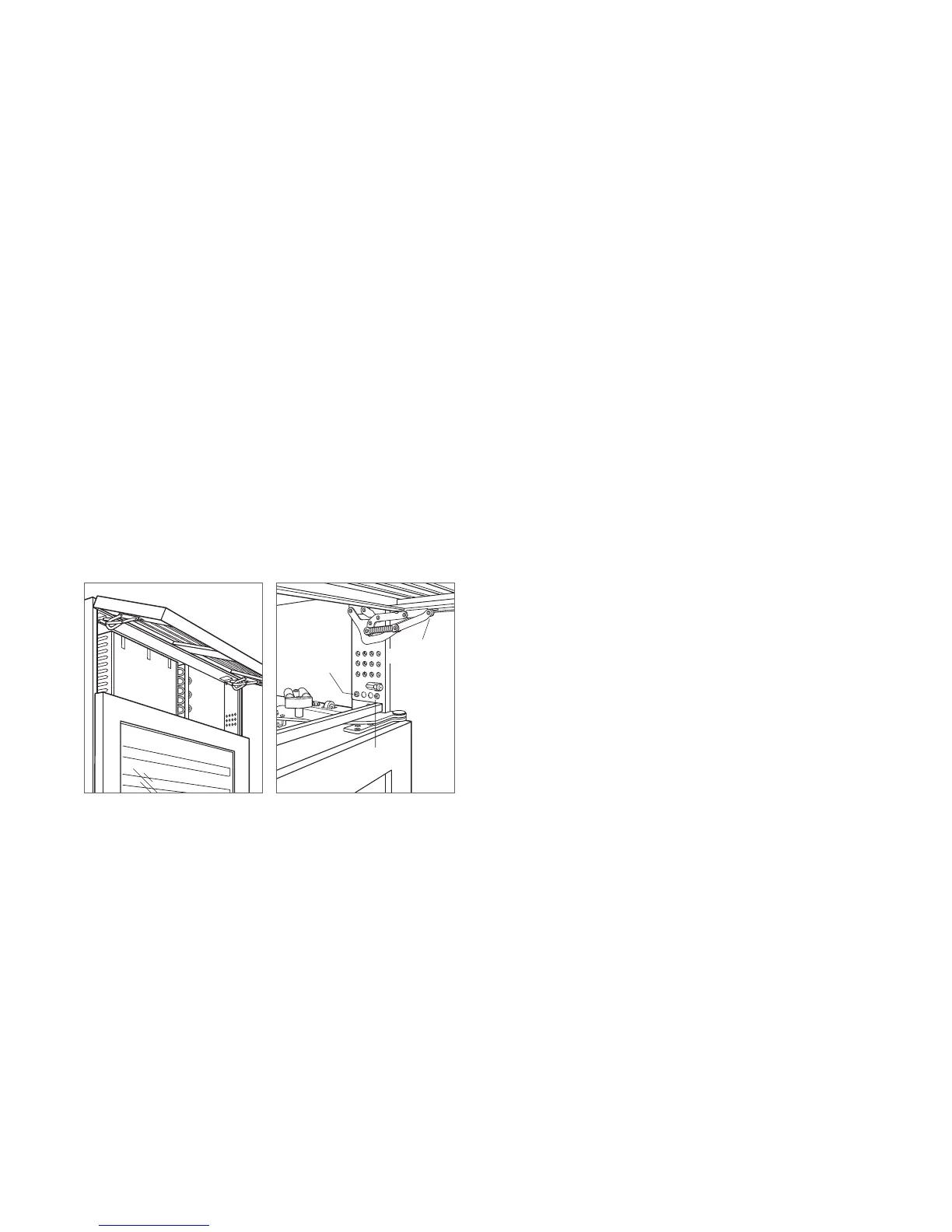

The grille assembly should be removed prior to moving the
unit. To remove, pull out on the bottom edge of the grille and
rotate upward. Loosen the two back grille mounting screws
and remove the two front grille mounting screws. With the
grille held rmly, pull forward to remove. Refer to the illustra-
tions below.
FRONT
GRILLE SCREW
BACK GRILLE
SCREW
GRILLE
ADJUSTMENT
SCREWS
Grille removal.
Grille mounting screws.
MODEL WS-30 SITE PREPARATION
