Sub-Zero WINE STORAGE User Manual

30 | Sub-Zero Customer Care 800.222.7820
MODEL WS-30 INSTALLATION
ANCHORING
After the unit has been leveled and door adjustment com-
pleted, anchor the unit to the opening to ensure a proper t
and secure installation.
To anchor the top of the unit, open the grille and install the
screws provided, through the grille frame into cabinetry.
There are several hole locations. Refer to the illustration
below. Check for proper door clearance by opening the
door.
To anchor the bottom of the unit, drive a screw through the
side hole inside each roller base assembly. The screw will
need to go in at an angle to attach properly. Refer to the
illustration below. Additional material may be needed behind
the cleat to ensure sufcient anchoring.
CAUTION
If the screws provided are not suitable for the installa-
tion, use adequate screws.
ANCHORING
SCREWS
ANCHORING
SCREW

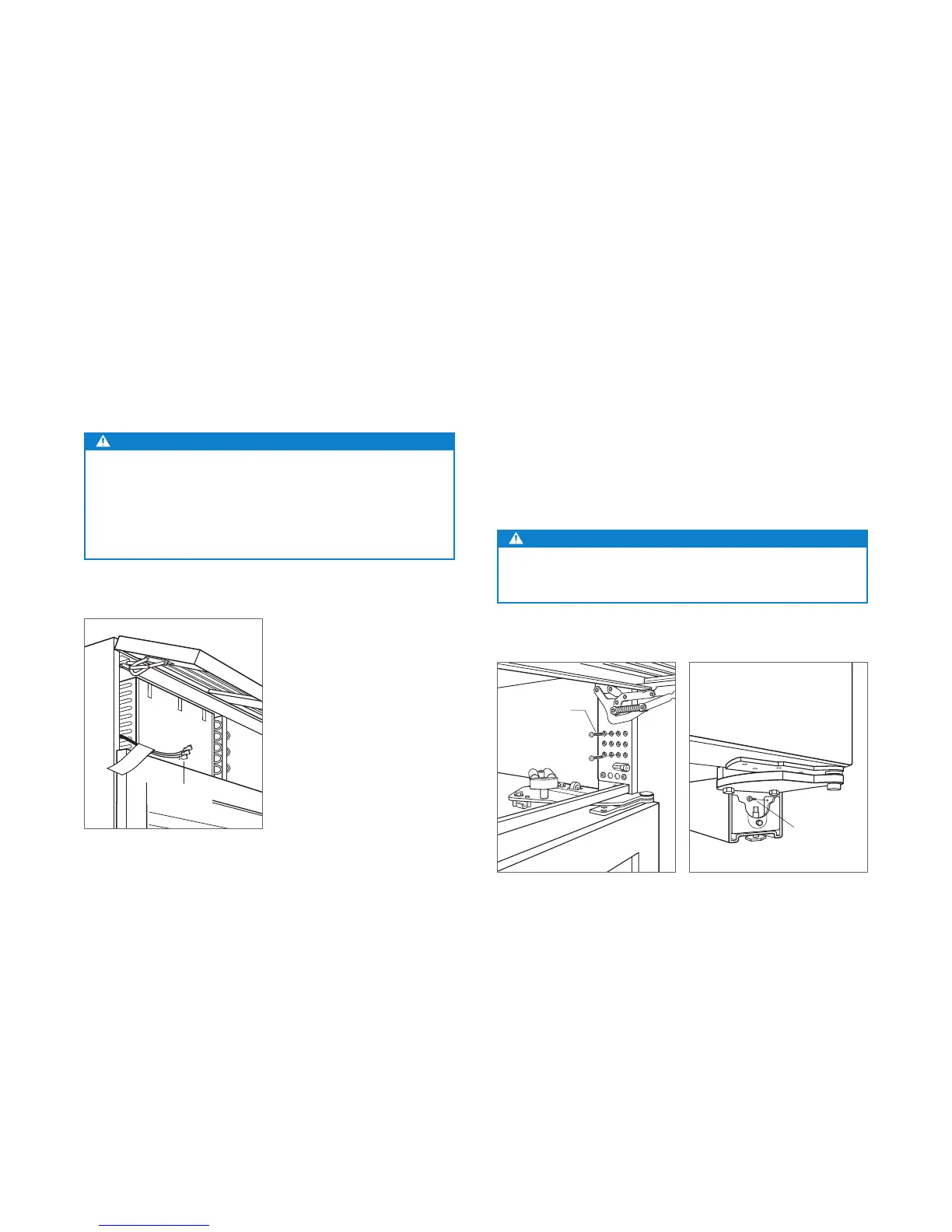

Top anchoring. Bottom anchoring.
Completion
HOME SECURITY CONNECTION
If the unit will be connected to a home security system,
make connections to the leads shown in the illustration
below. Refer to the following color codes:
• Normally open contacts—white with red stripe wire.
• Normally closed contacts—white with blue stripe wire.
• Common—gray with white stripe wire.
Use the spade terminals or wire nuts provided to make
proper wiring connections.
CAUTION
The alarm circuit in the unit is intended as a low-
voltage, low-current device only. It should not be used
to switch line power. Any unused terminals should be
completely insulated and all wires should be secured
away from conductive or moving components.
HOME SECURITY
LEADS
Home security connection.
