Sub-Zero Wolf ICB700 Series

Page 10
3-5
Electronic Control System
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
OFF
SERVICE
ICE

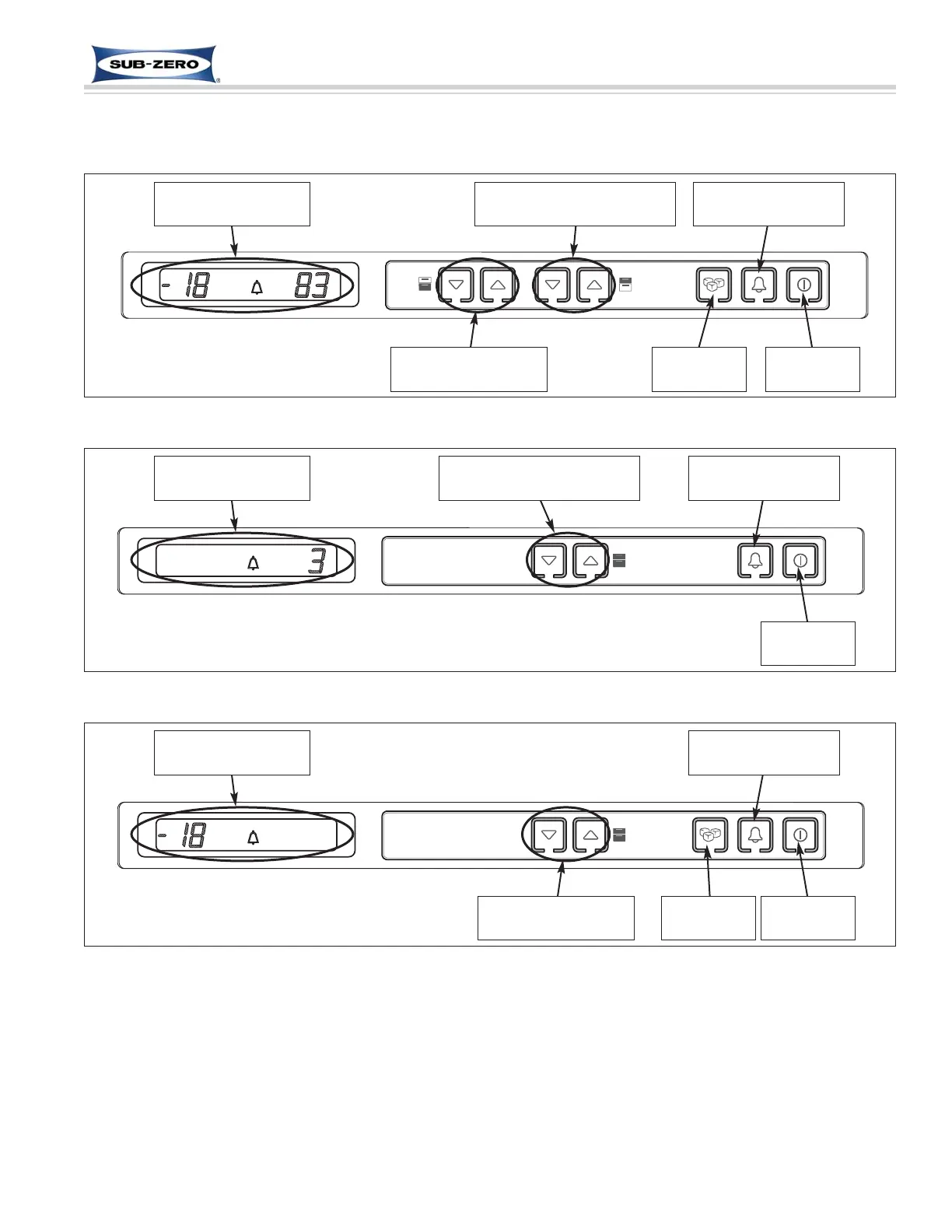

CONTROL PANEL LAYOUT
NOTE: The LCD on the base units is not back lit. It will appear darker than the LCD on tall units.
Figure 3-4. ICB700BCI Control Panel Layout
FREEZER SET-POINT
ADJUSTMENT KEYS
REFRIGERATOR SET-POINT
ADJUSTMENT KEYS
LCD
(Liquid Crystal Display)
DRAWER AJAR
ALARM ON/OFF KEY
UNIT POWER
ON/OFF KEY
ICE
ON/OFF KEY
OFF
SERVICE
ICE
Figure 3-5. ICB700BR Control Panel Layout
OFF
SERVICE
ICE
Figure 3-6. ICB700BFI Control Panel Layout
REFRIGERATOR SET-POINT
ADJUSTMENT KEYS
LCD
(Liquid Crystal Display)
DRAWER AJAR
ALARM ON/OFF KEY
UNIT POWER
ON/OFF KEY
FREEZER SET-POINT
ADJUSTMENT KEYS
LCD
(Liquid Crystal Display)
DRAWER AJAR
ALARM ON/OFF KEY
UNIT POWER
ON/OFF KEY
ICE
ON/OFF KEY
