Airflow & Fan Blade Spacing
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series

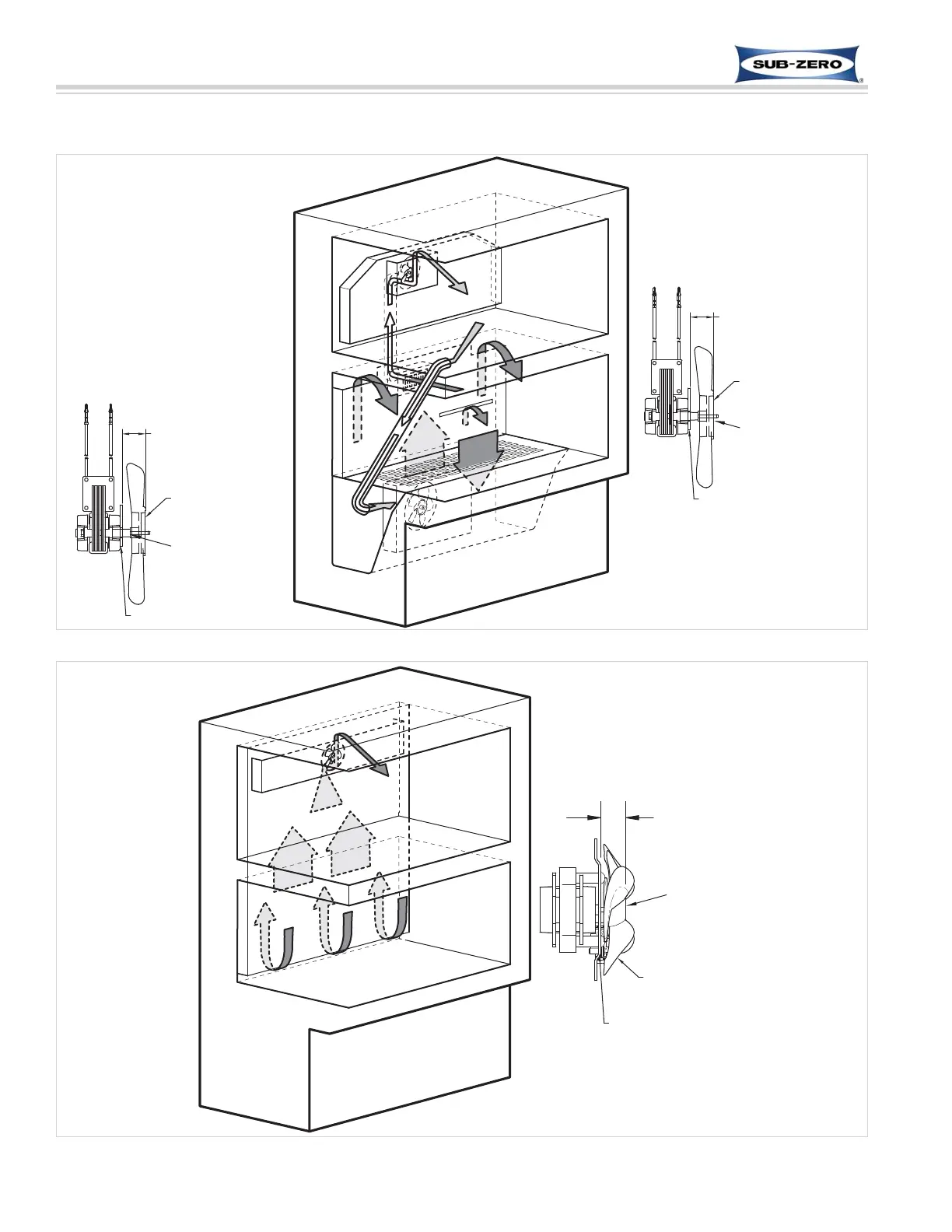

AIRFLOW AND FAN BLADE SPACING DIAGRAMS
Figure 5-1. ICB700BC/I Airflow and Fan Blade Spacing
Blade
Bracket
Clamp
Back
EVAPORATOR
FAN BLADE HUB
TO FAN BRACKET
SPACING
Blade
Bracket
Clamp
Forward
REFRIGERATOR
COMPARTMENT
FAN BLADE HUB
TO FAN BRACKET
SPACING
NOTE: Refrigerator Fan blade
spacing with production motor is
same as service motor shown
above, but measurement is from
fan blade hub to fan motor face.
Figure 5-2. ICB700BR Airflow and Fan Blade Spacing
REFRIGERATOR
EVAPERATOR
FAN BLADE HUB
TO FAN BRACKET
SPACING
Blade
Bracket
Clamp
Forward
17.46 mm ± 1.59 mm
(11/16'' ± 1/16'')
20.64 mm ± 1.59 mm
(13/16'' ± 1/16'')
19.05 mm ± 1.59 mm
(3/4'' ± 1/16'')
