Do not over torque. Use lowest torque setting on
any power screwdriver. Do not turn rear leveling
legs by hand, doing so will damage the assembly.
2-3
Installation Information
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series

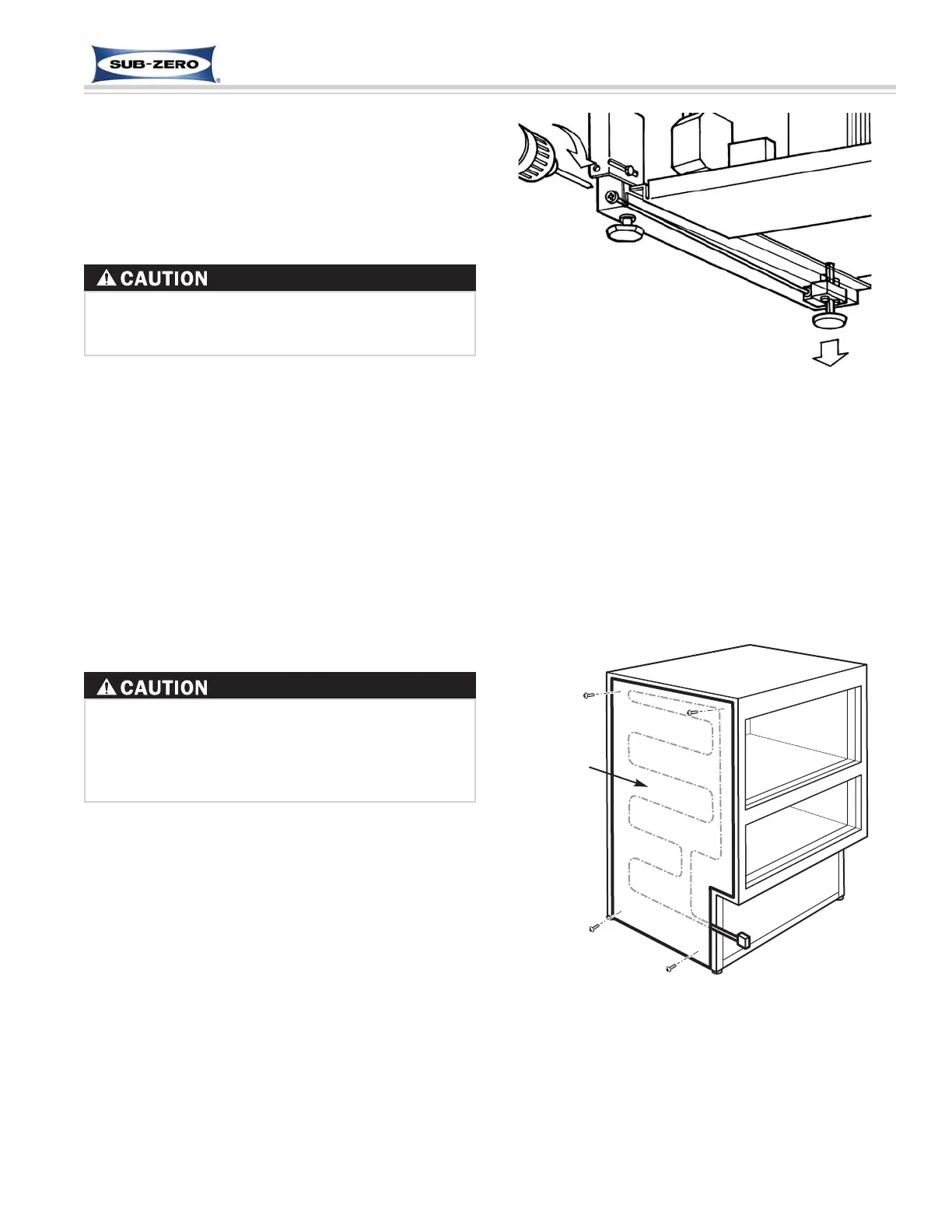

Figure 2-4. Adjusting Rear Levelers
Rear levelers are adjusted at front of base by turning
Phillips head adjusting rod, which engages rear leveler
assembly. Turn rod clockwise to raise rear or counter-
clockwise to lower it (See Figure 2-4).
NOTE: Rear leveling legs will only move 1.6 mm
(1/16”) for every 18 revolutions of Phillips head adjust-
ing rod.
Door and Drawer Adjustment
Doors and drawers on ICB700 Series units are non-
adjustable. Instead, door and/or drawer panels must be
adjusted if there are alignment problems. Refer to
Installation Manual and/or installation video for panel
installation and adjustment.
NOTE: Unit must be level before attempting to adjust
door and drawer panels.
Figure 2-5. Dual Unit Heater Installation
Apply heater
to left side
of right hand
unit
Dual Unit Installations
• If two Base units are installed side by side and are
51 mm (2”) or less apart, then part #7010382
(ICBBBDUAL Heater Kit) should be used.
• If a Tall unit is installed next to a Base unit and they
are 51 mm (2”) or less apart, then part #7010382
(ICBBBDUAL Heater Kit) should be used.
Complete installation instructions are supplied with the
Dual Unit Heater Kits.
If two or more units are placed side by side and are
51 mm (2”) or less apart, a dual unit heater kit must
be applied to the left side of the right hand unit.
Failure to install the dual unit heater package could
result in exterior condensation between the units.
