7-17
Component Access/Removal
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
Icemaker Water Valve Removal
(ICB700BCI, ICB700BFI Only)
The icemaker water valve assembly is located at the
right side of the compressor area, and is attached to
the valve bracket with screws.
NOTE: Before accessing the icemaker water valve,
turn off the water supply to the unit.
To remove the water valve, the kickplate/grill will need
to be removed first. Then, extract the two screws that
secure the unit tray to the unit and slide the tray out
(See Figure 7-36), then (See Figure 7-37).
1. Disconnect inlet water tube from the valve inlet by
pushing collar around tube toward valve, while
pulling inlet water tube away from valve.
2. With a Phillips screwdriver, remove screws from
valve bracket.
3. Lower valve and pull forward.
4. Unplug valve electrical leads.
5. Disconnect outlet tube from the valve outlet by
pushing collar around tube toward valve, while
pulling outlet water tube away from valve.

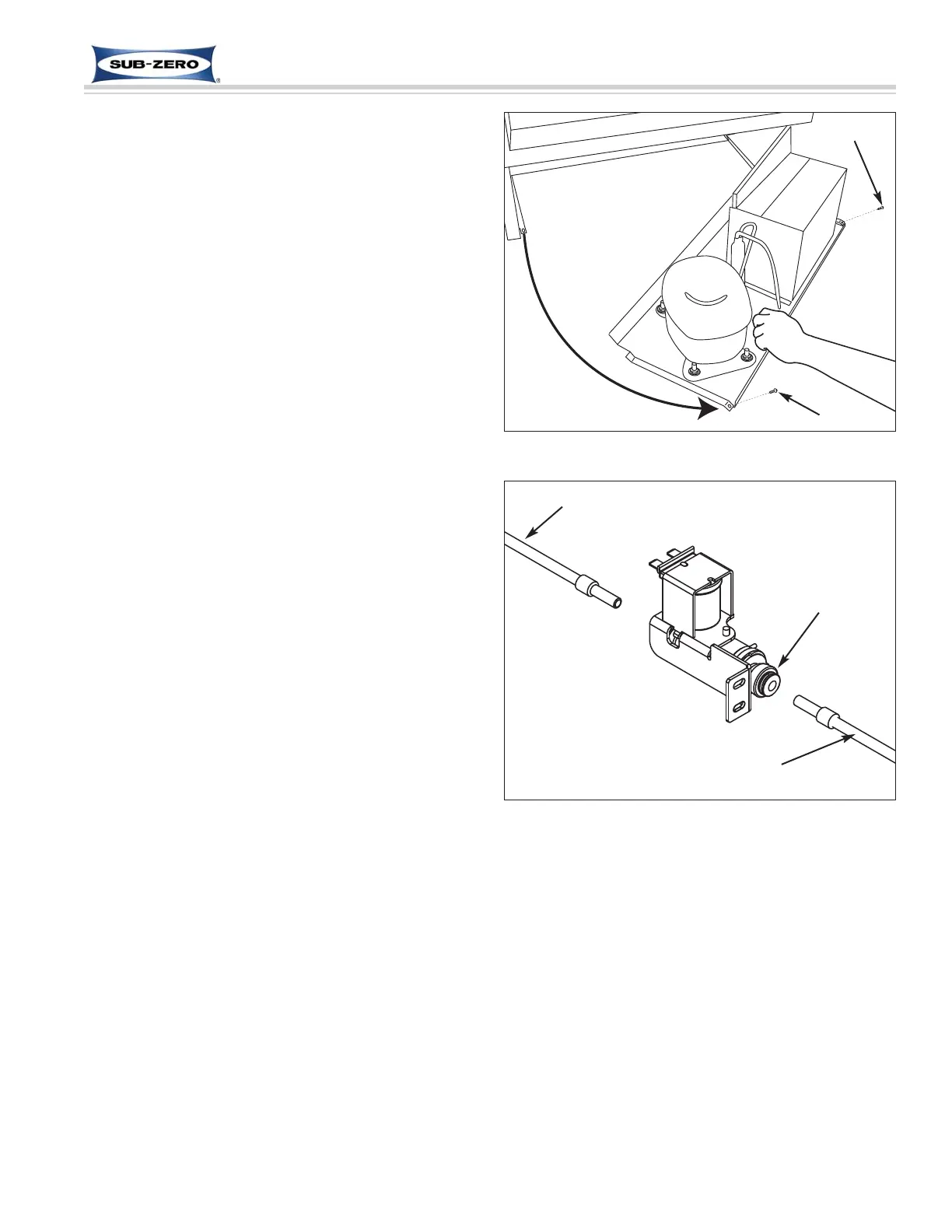

Figure 7-36. Sliding Unit Tray Out
Screw
Screw
Figure 7-37. Water Valve Removal
Inlet tube
Outlet tube
Collar
