Sub-Zero Wolf ICB700 Series

Page 94
PIN 1
PIN 1
J3
J2
DISPLAY BOARD
DISPLAY
MEMBRANE KEYPAD
THERMISTOR EVAPORATOR
BLUE W/YELLOW STRIPE
BLUE W/YELLOW STRIPE
BLUE W/RED STRIPE
ORANGE W/RED STRIPE
BLUE
ORANGE
WHITE
BLACK
YELLOW
RED
THERMISTOR FRE SECTION
MAIN BOARD
PIN 1
PIN 1
PIN 1
PIN 1
PIN 1
J5
J3
J4
J6
P2
J2
P1
P3
P4
THERMAL
CUT-OUT
COMPRESSOR
STARTING RELAY
RUNNING
CAPACITOR
OVERLOAD
PROTECTOR
FRZ FAN MOTOR
DEFROST HEATER
25 - 29 OHMS
ICEMAKER VALVE
DRAIN HEATER
1700 - 2100 OHMS
FILL TUBE HEATER
2300 -2900 OHMS
DEFROST TERMINATOR
REF (TOP)
DRAWER LIGHT
REF LIGHT
SWITCH
FRZ (BOTTOM) DRAWER LIGHT
FRZ LIGHT SWITCH
ICEMAKER SWITCH
THERMAL FUSE
M
M
M
CONDENSER FAN
COMPRESSOR
ICEMAKER
L1
NEUTRAL
YELLOW
ORANGE W/BLACK STRIPE
PINK
ORANGE
BLUE
RED
PURPLE
BLACK
WHITE
TAN
WHITE
GRAY W/WHITE STRIPE
WHITE
BLUE
GRAY W/WHITE STRIPE
TAN
TAN
ORANGE
ORANGE W/BLACK STRIPE
ORANGE
GRAY W/WHITE STRIPE
220-240 VOLTS
50/60 CYCLES

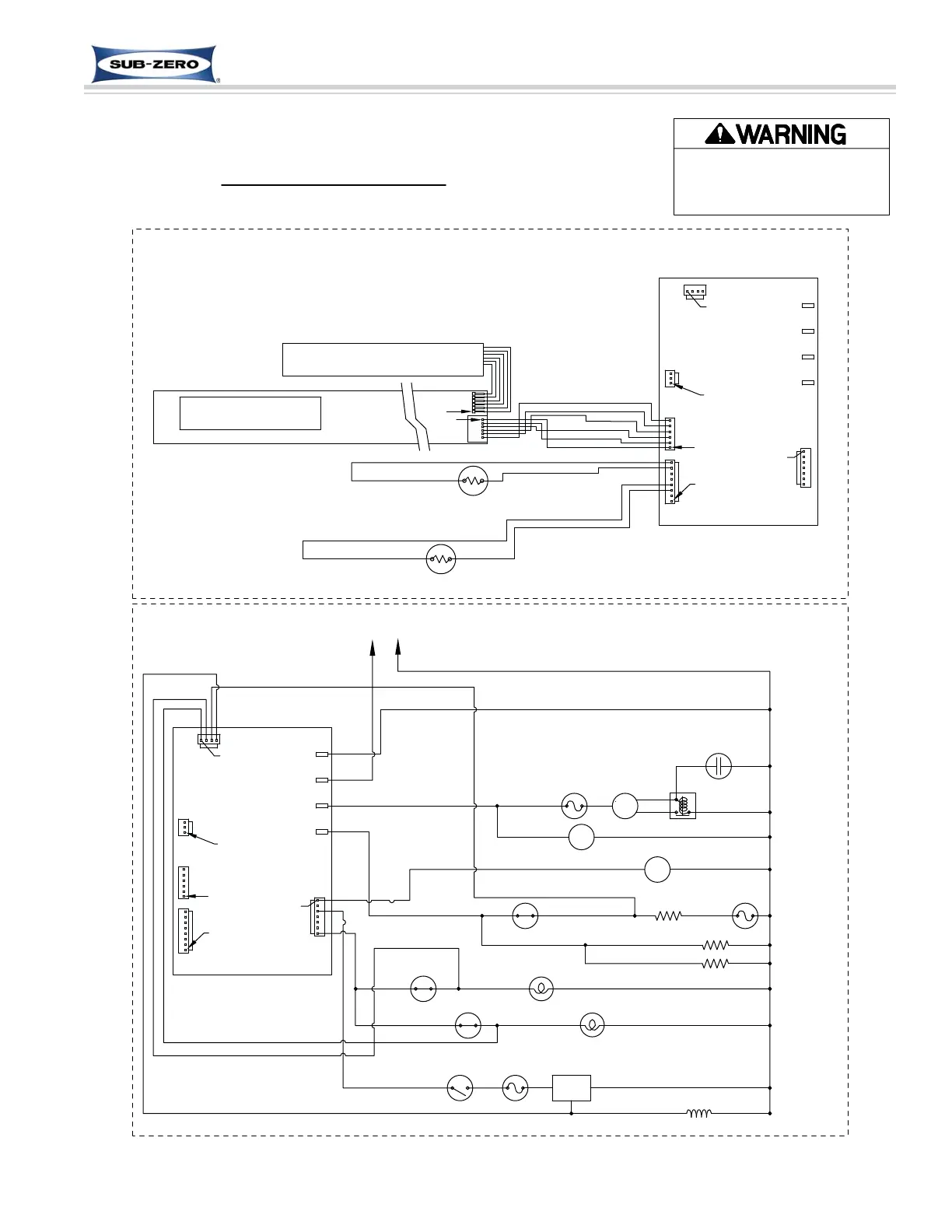

HIGH VOLTAGE SCHEMATIC
LOW VOLTAGE SCHEMATIC
WIRING SCHEMATIC
MODEL ICB700BFI
Schematic Part Number 7004933 Rev A
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
MAIN BOARD
PIN 1
PIN 1
PIN 1
PIN 1
PIN 1
J5
J3
J4
J6
P2
J2
P1
P3
P4
-This wiring information is provided for use by qualified
service personnel only.
-Disconnect appliance from electrical supply before
beginning service.
-Be sure all grounding devices are connected when
service is complete.
-Failure to observe the above warnings may result in
severe electrical shock.
10-7
Wire Diagrams & Schematics
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
