Component Removal
Microwave Drop-down Door Series
Microwave Drop-down Door Series
3-7
#826151 - Revision A - March, 2016
Hinge Assembly
To remove the hinge assembly, first remove the door
panel, then (See Figure 3-13):
1. Use a T-20 Torx drive to extract the screws from the
door panel.
2. Remove the hinge.
Outer Wrapper
To remove the outer wrapper, first uninstall the unit,
then (See Figure 3-14):
1. Remove the control cover.
2. Use a T-20 Security Torx drive to extract the screws
from the outer wrapper.
3. Remove the outer wrapper.

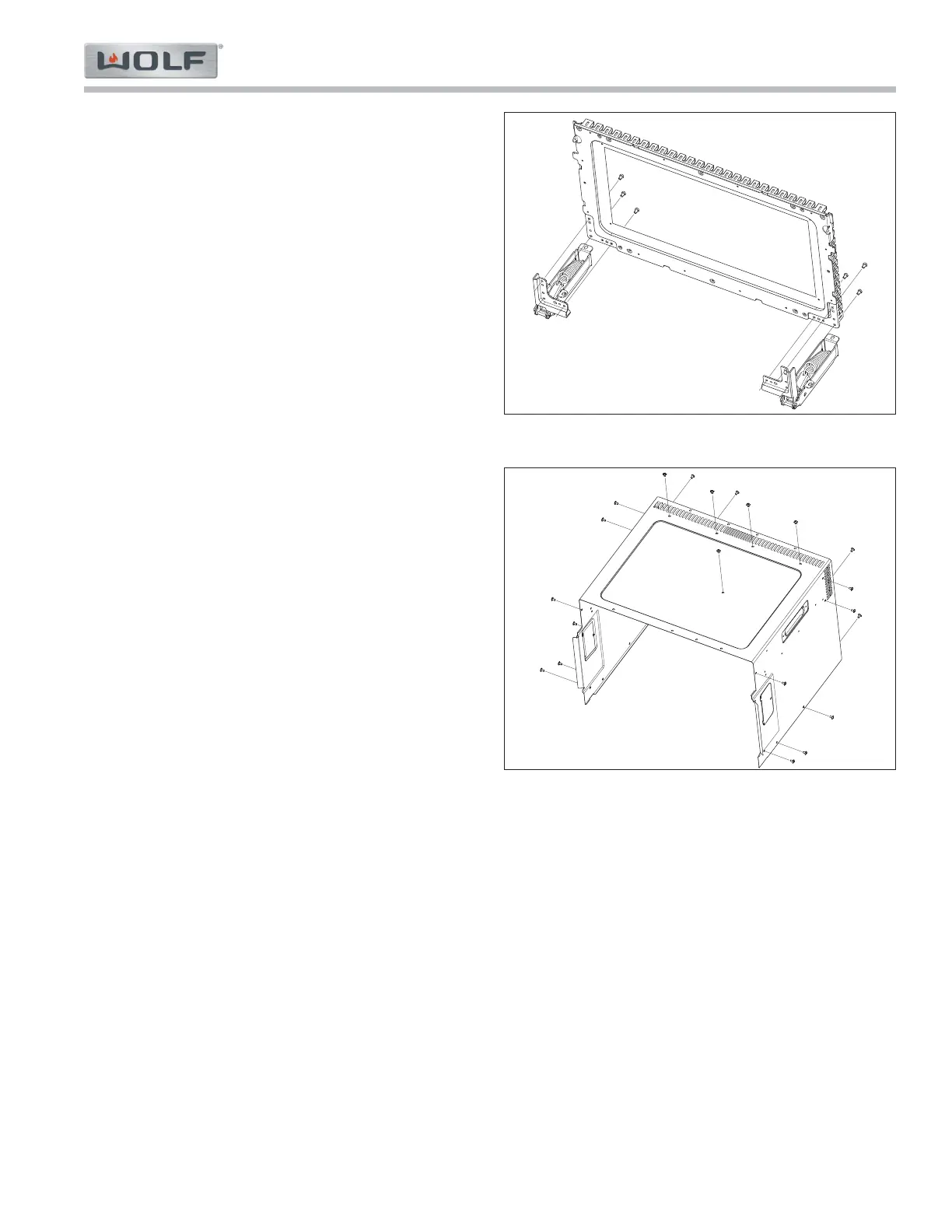

Figure 3-13. Hinge Assembly
Figure 3-14. Outer Wrapper
