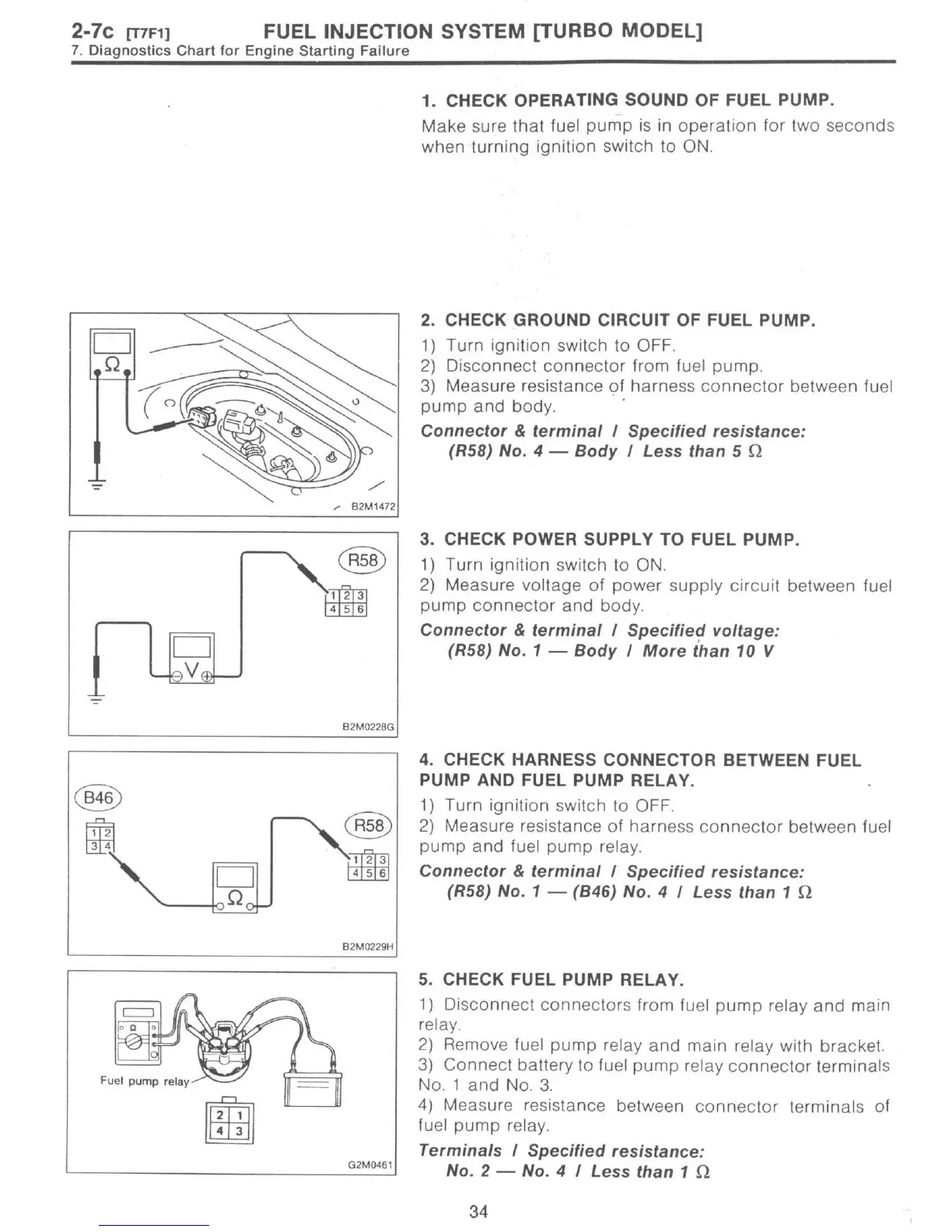

Subaru 1997 Impreza - Check Operating Sound of Fuel Pump; Check Ground Circuit of Fuel Pump; Check Power Supply to Fuel Pump; Check Harness Connector between Fuel Pump and Fuel Pump Relay
