FORESTER (72F) NA (E) A8040B
1-32

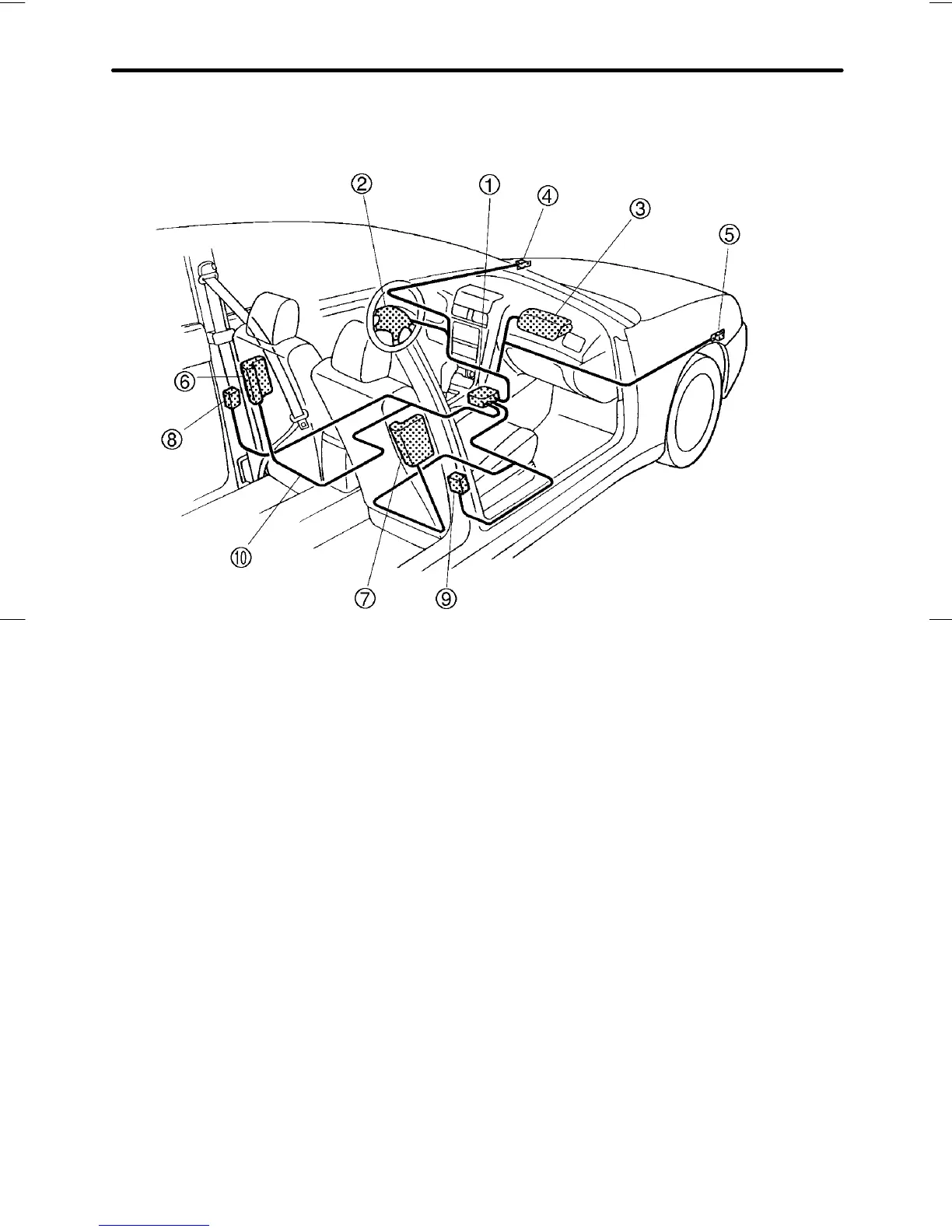

B Components
1 Airbag control module
(including impact sensors)
2 Airbag module (driver’s side)
3 Airbag module
(passenger’s side)
4 Front sub sensor
(left hand side)
5 Front sub sensor
(right hand side)
6 Side airbag module
(driver’s side — if equipped)
7 Side airbag module
(passenger’s side — if
equipped)
8 Side airbag sensor
(driver’s side)
9 Side airbag sensor
(passenger’s side)
Q Airbag wiring (yellow)
HS1027DB
