11-55
Maintenance and service
– CONTINUED –

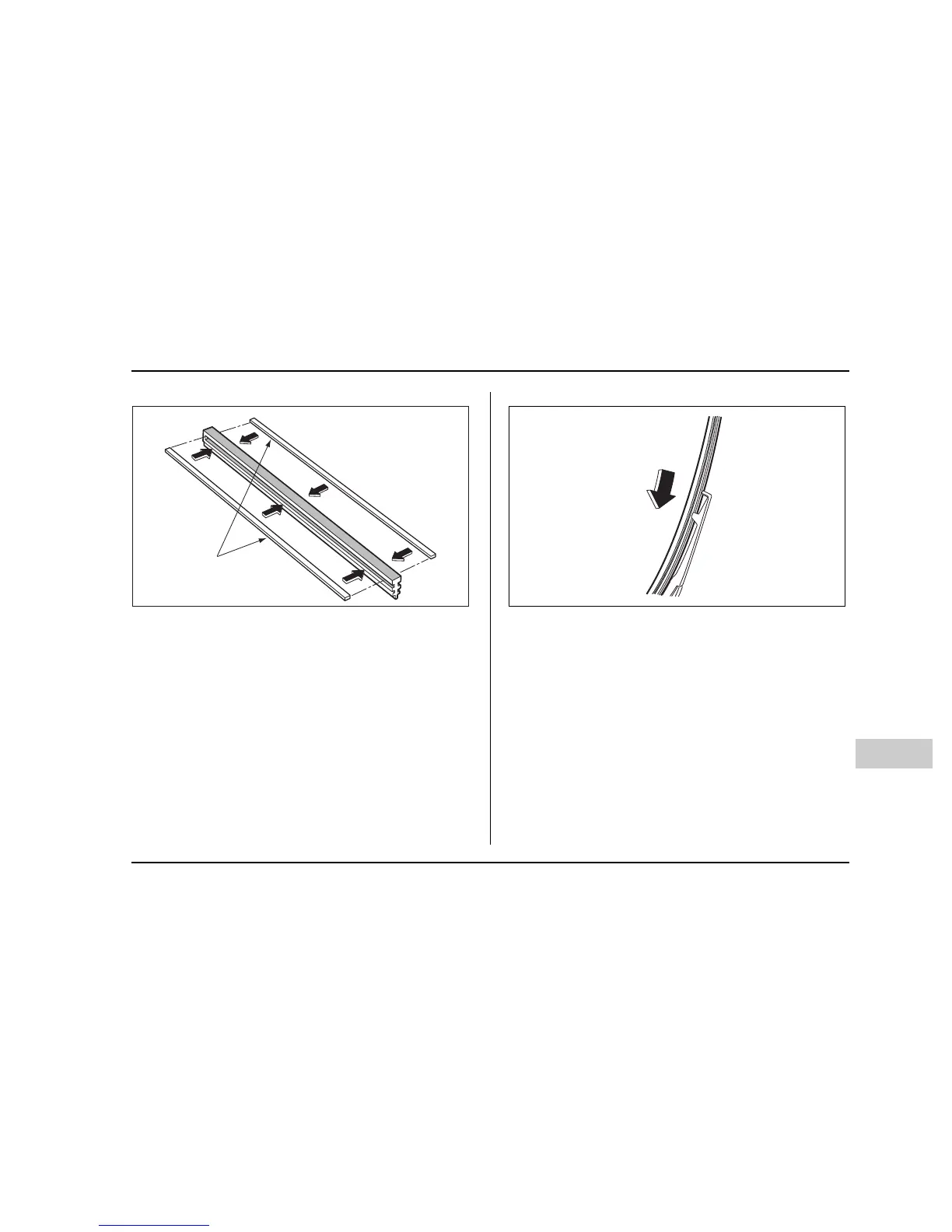

1) Metal spines
6. If the new blade rubber is not provided with two
metal spines, remove the metal spines from the old
blade rubber and install them in the new blade rubber.
7. Align the claws of the plastic support with the
grooves in the blade rubber assembly, then slide the
blade rubber assembly into place.
1
USB583BB USB586CA
To Next Page
