12-6
Specifications
îš„

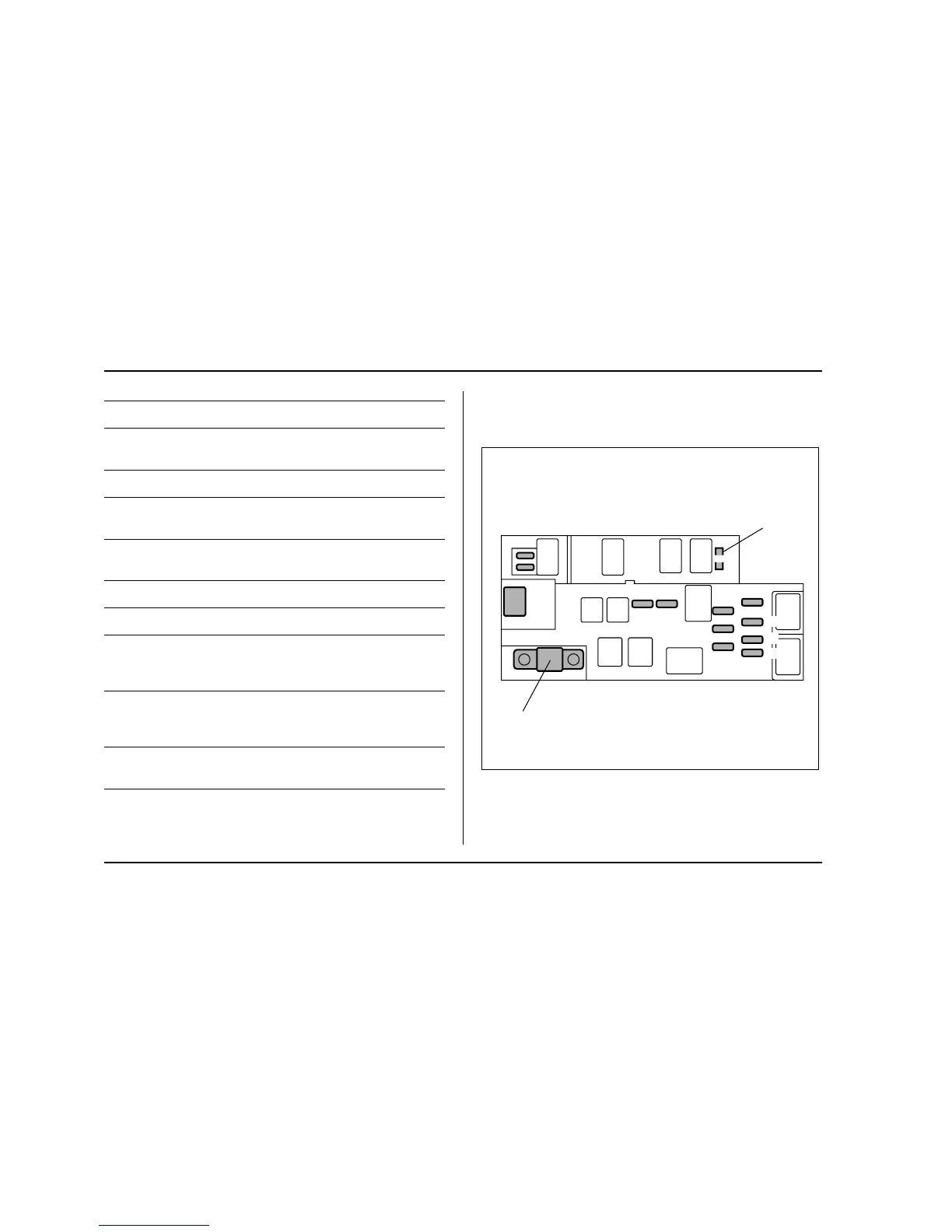

Fuse panel located in the engine com-
partment
A)
FWD socket
B)
Main fuse
12
10A
y
Illumination brightness
control
13
15A
y
Fuel pump
14
10A
y
Rear window
wiper and
washer
15
30A
y
Windshield wiper and
washer
16
20A
y
Brake light
17
15A
y
Air conditioner
18
15A
y
Backup light
y
Cruise control
y
ABS control
19
20A
y
Wipe
r deicer
y
Sports activity light
y
Cargo lamp
20
20A
y
Accessory power outlet
y
Seat heater
Fuse panel
Fuse rating
Circuit
A
B
1
2
3
4
5
6
7
8
9
10
11
12
UBC003BB
436
438
