Subaru 2005 Impreza - Fuse Panel Located in the Engine Compartment

12-9
Specifications
– CONTINUED –

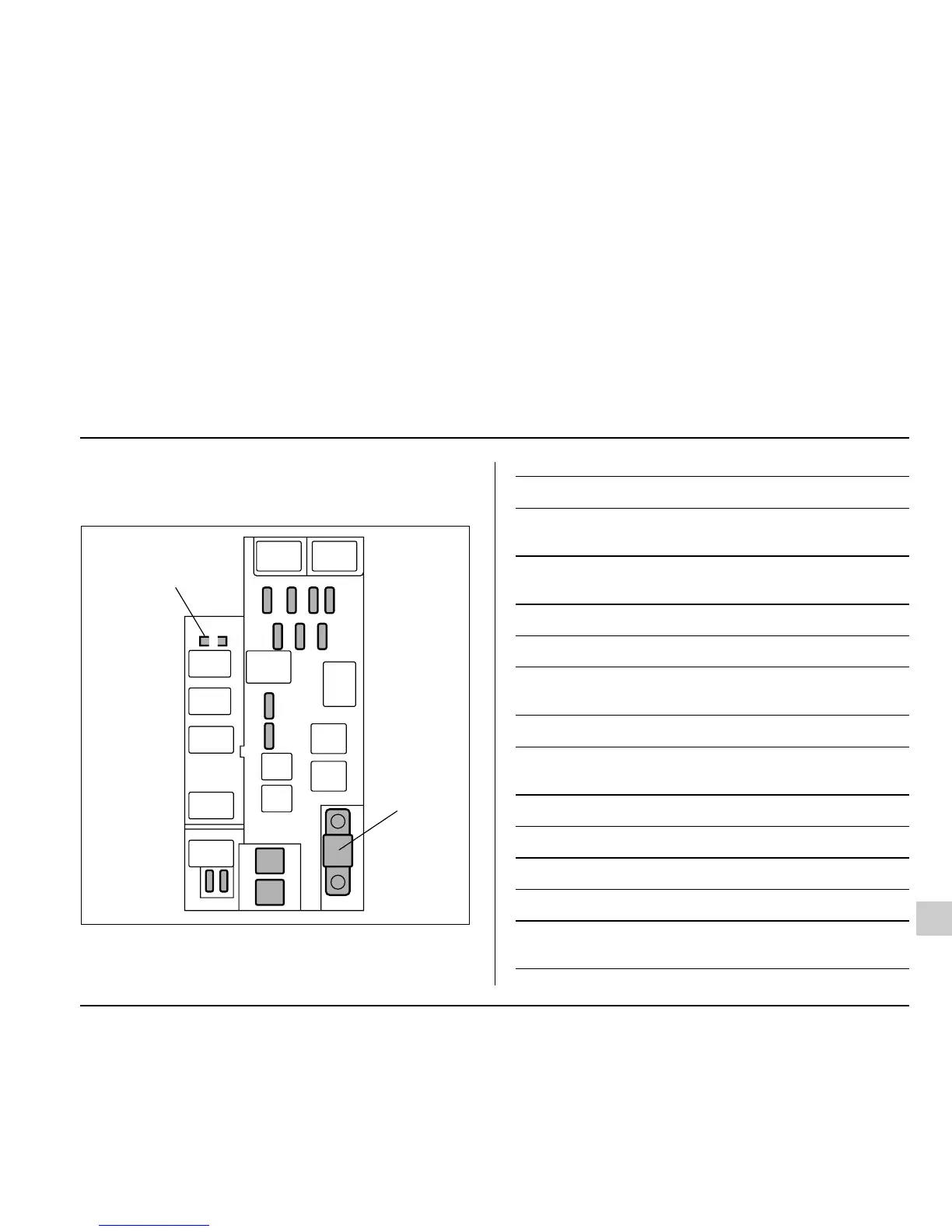

 Fuse panel located in the engine com-
partment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
A
1
2
3
C
B
4
5
6
7
8
91011
12
UGC012BB
Fuse panel Fuse rating Circuit
1 20A y Radiator cooling fan
(Main)
2 20A y Radiator cooling fan
(Sub)
3 30A y ABS motor
4 20A y Rear window defogger
5 15A y Hazard warning flasher
y Horn
6 15A y Turn signal lights
7 10A y Automatic transmis-
sion control unit
8 10A y Alternator
9 15A y Headlight (right side)
10 15A y Headlight (left side)
11 20A y Lighting switch
12 20A y Clock
y Interior light
