Subaru 2005 Impreza - Page 83

1-56
Seat, seatbelt and SRS airbags
2
1
4
3
5
12
9
7
10
11
8
6

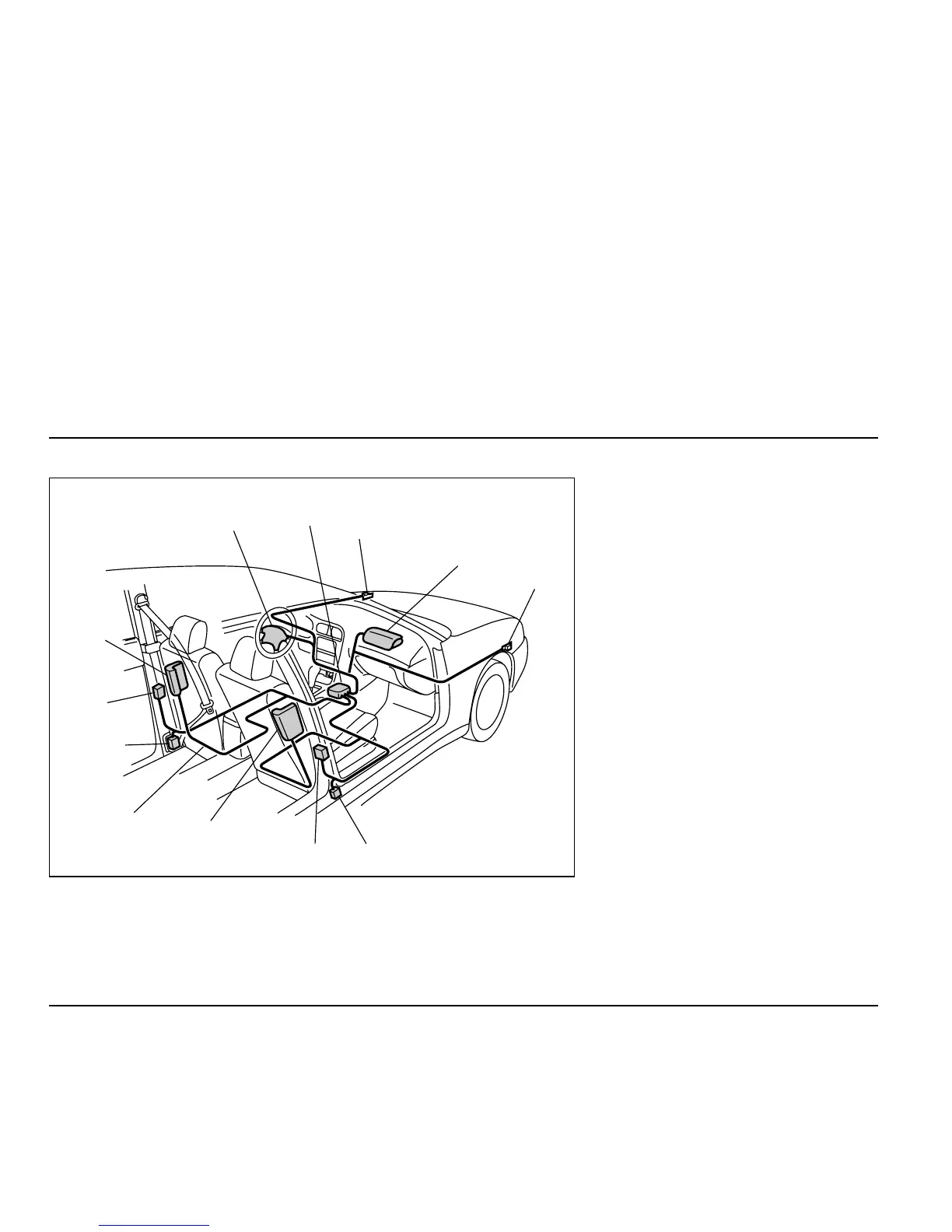

UG1034BB
1) Airbag control module (including
impact sensors)
2) Airbag module (driver’s side)
3) Airbag module (passenger’s
side)
4) Front sub sensor (left hand side)
5) Front sub sensor (right hand
side)
6) Side airbag module (driver’s
side – if equipped)
7) Side airbag module (passen-
ger’s side – if equipped)
8) Side airbag sensor (driver’s side
– if equipped)
9) Side airbag sensor (passenger’s
side – if equipped)
10) Airbag wiring (yellow)
11) Seatbelt pretensioner (driver’s
side)
12) Seatbelt pretensioner (passen-
ger’s side)
