Subaru 2007 Impreza - Page 35

2007 New Model Update (916)
2007 Subaru B9 Tribeca Page 35
* Refer to STIS (Subaru Technical Infromation System) *** New Feature
June 2006
Wire ColorWire Color
Wire ColorWire Color
Wire Color
DescriptionDescription
DescriptionDescription
Description
Value For Each TerminalValue For Each Terminal
Value For Each TerminalValue For Each Terminal
Value For Each Terminal

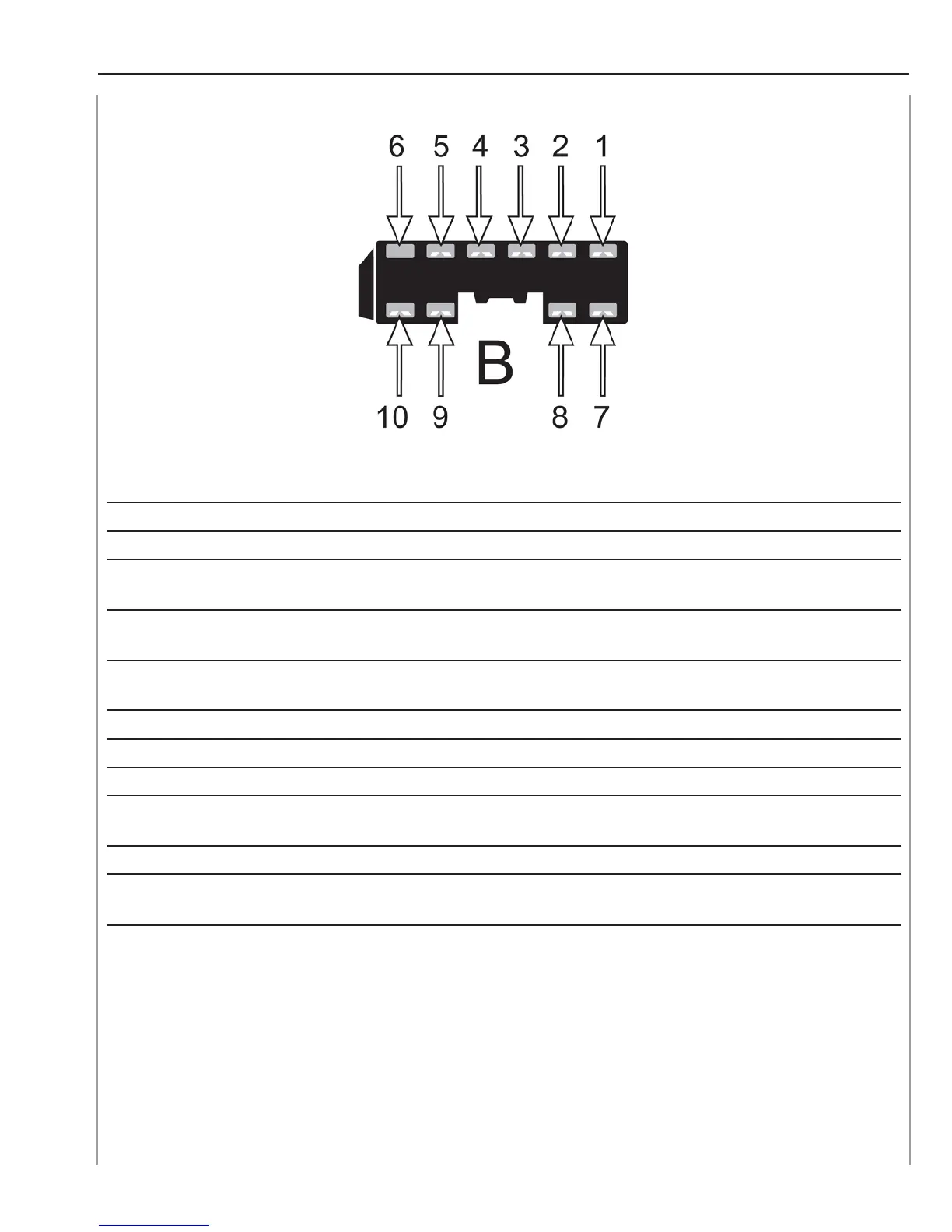

1. White Battery Continuous Battery Voltage
2. White Battery Continuous Battery Voltage
3. Blue Ignition 2 Battery voltage during RES operation
Battery voltage during normal operation
4. Yellow Acc 1 Battery voltage during RES operation
Battery voltage during normal operation
5. Yellow Acc 2 Battery voltage during RES operation
Battery voltage during normal operation
6. Blank
7. Brown Brake Switch Input 0 voltage brake off
Battery voltage brake on
8. Black/White Key Sensor Input Battery voltage key in for less than 10 seconds
Tracer during RES start
9. Violet Tachometer Circuit Square wave pattern average 2.3 volts (5 volts)
10. Pink Encryption output Square wave pattern less than 5 seconds,
Immobilizer interface prior to starter engagement
