1-48 Seat, seatbelt and SRS airbags
T Components
1
2
3
4
5
21
22
9
7
10
12
20
17
13
6
18
19
24
23
8
11
14
15
16
100644

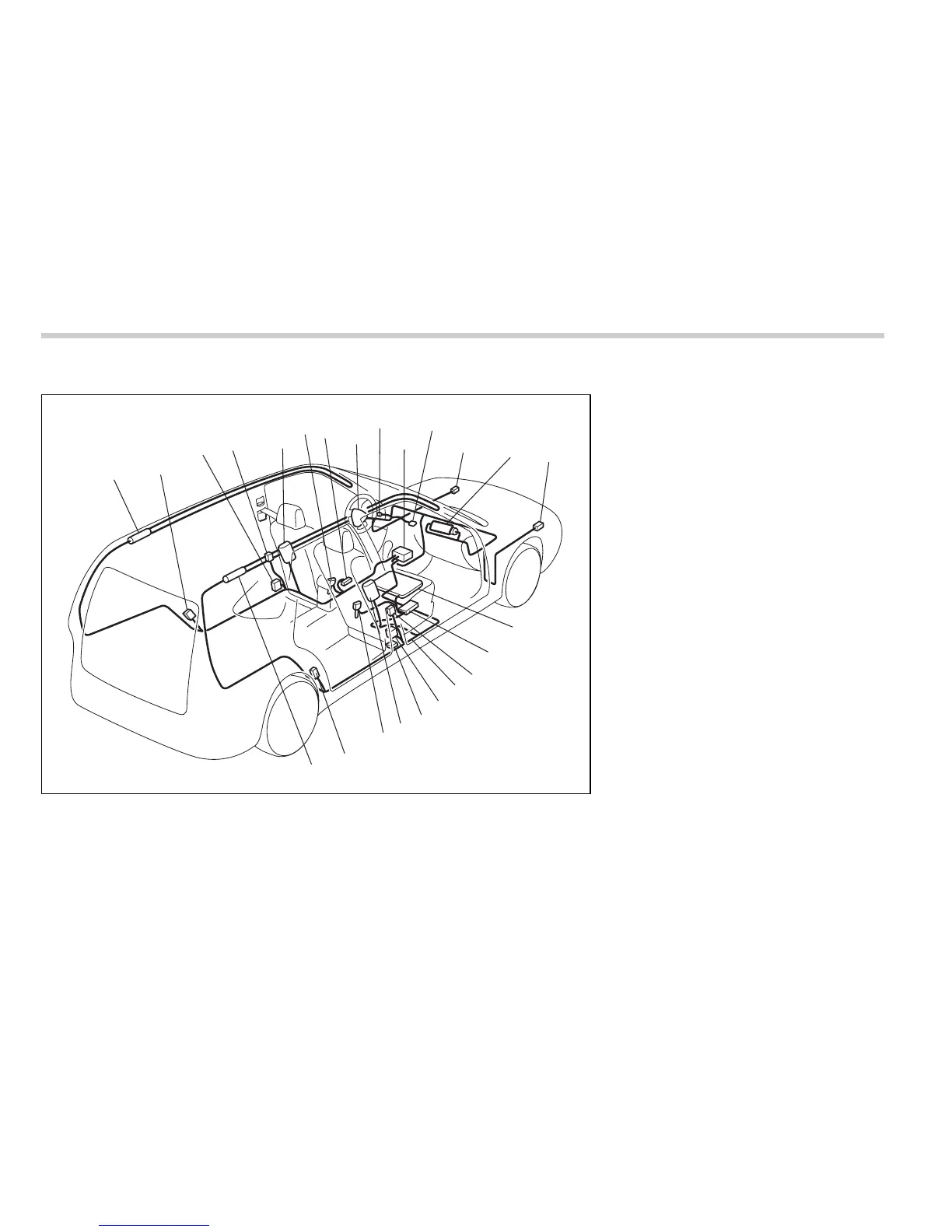

1) Airbag control module (including impact
sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passen-
ger’s side)
4) Front sub sensor (left-hand side)
5) Front sub sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s
side)
8) Side airbag sensor (center pillar left-
hand side)
9) Side airbag sensor (center pillar right-
hand side)
10)Airbag wiring (yellow)
11)Seatbelt pretensioner (driver’s side)
12)Seatbelt pretensioner (front passenger’s
side)
13)Curtain airbag sensor (rear wheel house
right-hand side)
14)Curtain airbag sensor (rear wheel house
left-hand side)
15)Curtain airbag module (right side)
16)Curtain airbag module (left side)
17)Seatbelt buckle switch (front passen-
ger’s side)
18)Seatbelt buckle switch (driver’s side)
19)Driver’s seat position sensor
20)Front passenger’s seatbelt tension sen-
sor
21)Front passenger’s occupant detection
system weight sensor
22)Front passenger’s occupant detection
control module
23)Front passenger’s frontal airbag ON and
OFF indicator
24)SRS airbag system warning light
