21
-

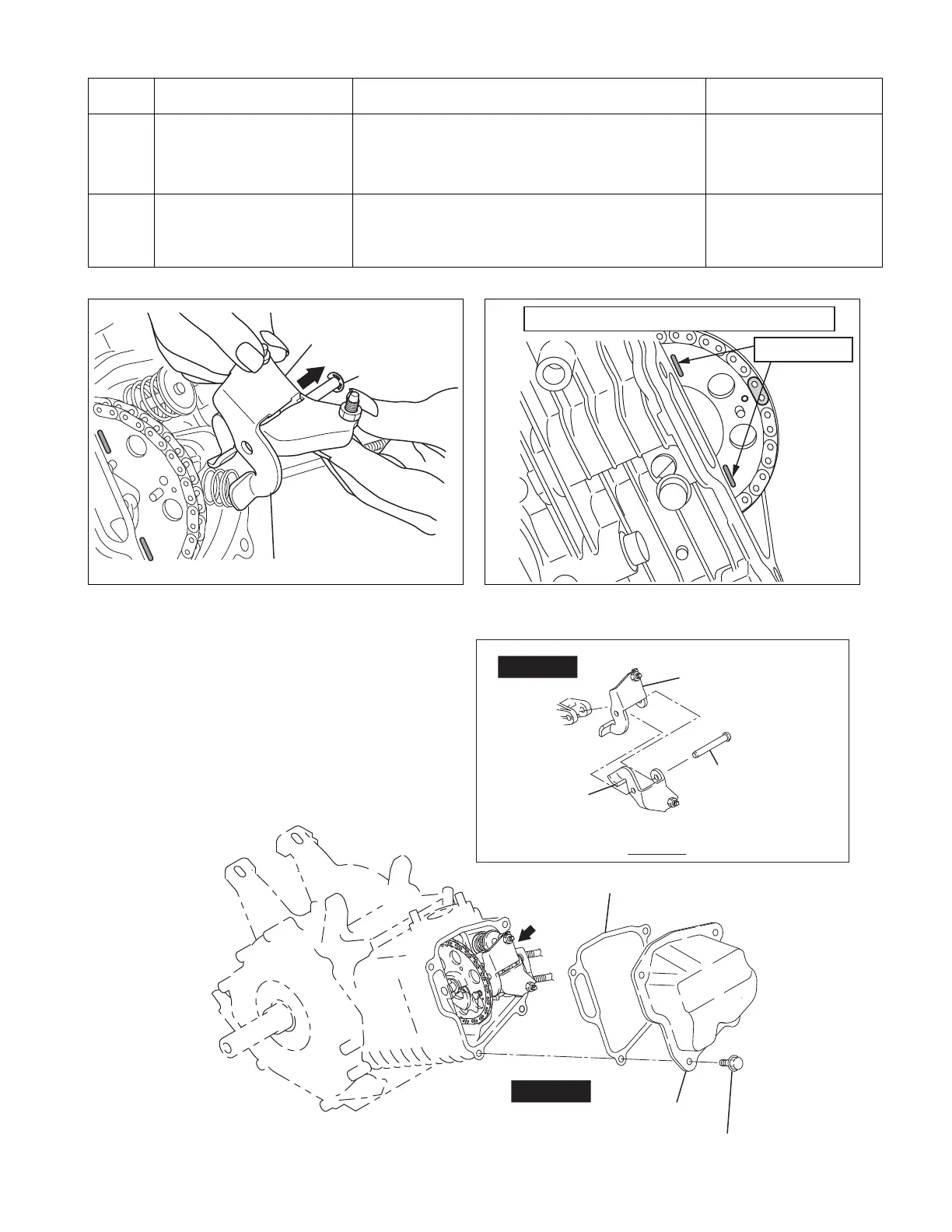

Fig.5-15
Step Parts to remove Remarks and procedures Fasteners
20
Rocker cover (1) Remove the rocker cover from the cylinder head.
(2) Remove the gasket (rocker cover).
10 mm box spanner
M6 x 12mm : 4 pcs.
21
Rocker arm Remove the pin (rocker arm) and the rocker arm from
the cylinder head at the compression top dead center.
(See Fig. 5-16)
ROCKER ARM
(EXHAUST VALVE SIDE)
ROCKER ARM (INTAKE VALVE SIDE)
PIN
(ROCKER ARM)
Punch marks
The position of compression top dead center
Fig.5-16
ROCKER ARM
(EXHAUST VALVE SIDE)
PIN
(ROCKER ARM)
VIEW A
A
ROCKER ARM
(INTAKE VALVE SIDE)
ROCKER COVER
GASKET(ROCKER COVER)
M6 x 12 BOLT : 4 pcs.
STEP 20
STEP 21
Fig.5-14
To Next Page
