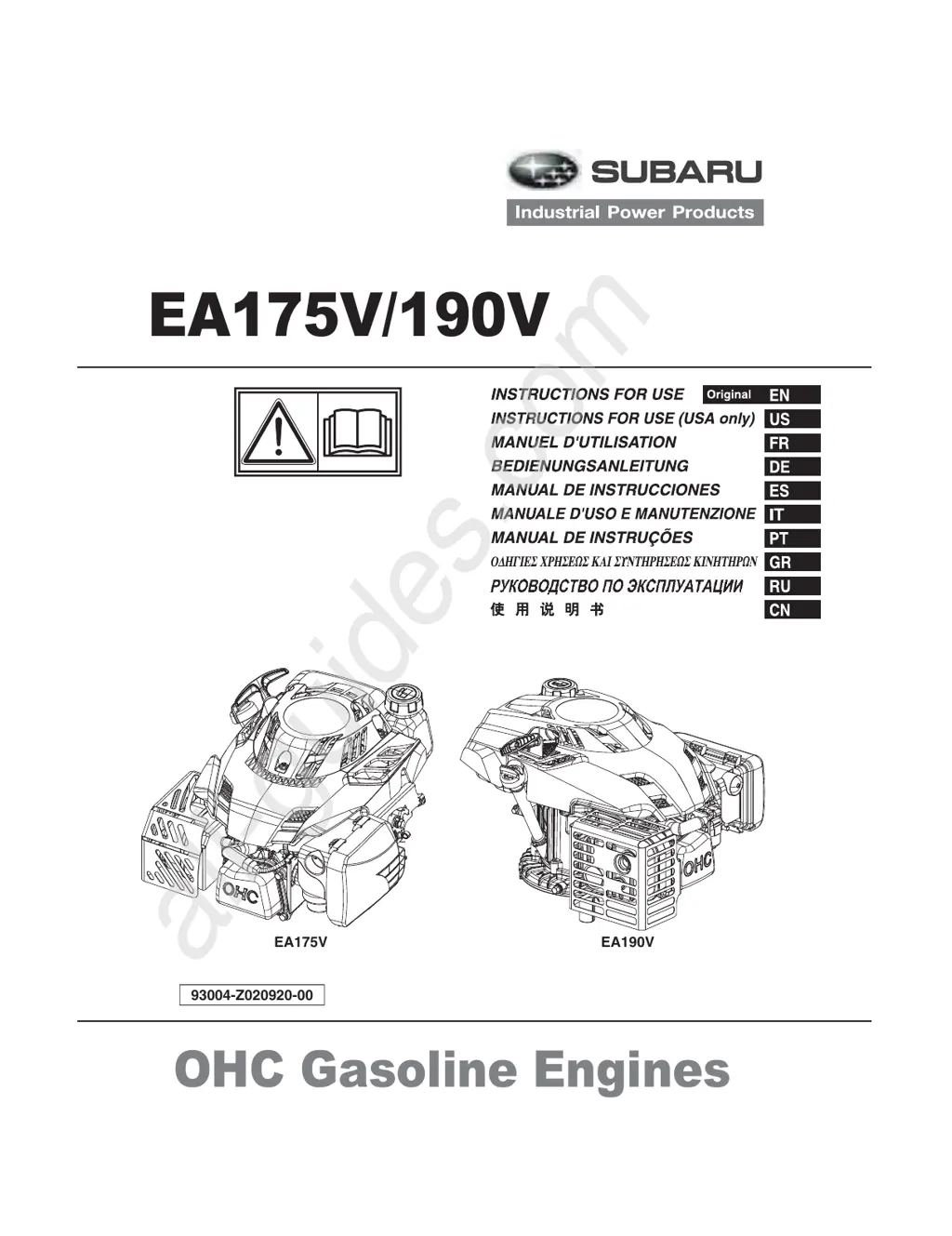

Subaru EA190V User Manual (English)

Other manuals for Subaru EA190V

Questions and Answers:

J
Jessica PageAug 18, 2025
What to do if my Subaru EA190V Engine will not start?
- G
  gcarterAug 18, 2025
  If your Subaru Engine won't start, begin by ensuring the stop switch is in the “I” (ON) position. Next, remove and inspect the spark plug, cleaning or replacing it if the electrode is fouled. Check for a strong spark across the electrode; if weak or absent, try a new spark plug. If there's still no spark with a new plug, the ignition system may be faulty. Also, verify that the fuel valve is open. If the spark plug is wet with gasoline, it indicates fuel is being supplied to the engine.
M
michelle01Aug 20, 2025
Why is my Subaru Engine overheating?
- N
  Nicholas WatsonAug 20, 2025
  Your Subaru Engine might be overheating due to several reasons. It could be due to insufficient oil or an incorrect oil ratio in the gasoline, so refill the engine oil. A blocked exhaust pipe can also cause overheating, so clean it. Other potential causes include shroud leaks (repair the damaged part), blocked cooling fins (clear them), or a loose cooling fan (reinstall it properly). Additionally, internal issues like a deformed connection rod, worn cylinder/piston/piston ring, improper engine governor adjustment, or a burnt-out crankshaft main bearing can lead to overheating, requiring parts replacement or readjustment.
S
snguyenAug 26, 2025
What to do if my Subaru EA190V has normal cylinder compression but won't start?
- J
  Joshua MurrayAug 26, 2025
  If your Subaru Engine has normal cylinder compression but isn't starting, the issue might be related to the fuel system. Start by filling the fuel and opening the fuel cock. Check for a clogged air vent in the fuel filler cap and dredge it if necessary. Inspect for an improper or clogged main oil flow hole and readjust or clean it. Also, the needle valve might not be closing properly, or the start hole could be clogged, requiring dismantling and cleaning. Check for a damaged or sticking float and repair it. Replace the fuel if it's too filthy, deteriorated, or contains water. If there's too much fuel in the engine, drain the excess and dry the spark plug electrodes. Finally, ensure you're using the correct fuel brand according to the engine's requirements.
T
Thomas BlackAug 27, 2025
What to do if my Subaru EA190V Engine overheat?
- L
  Lisa PriceAug 27, 2025
  If your Subaru Engine is overheating, begin by checking the oil level and quality, as abnormal oil volume or inferior oil can cause this. A blocked exhaust pipe can also lead to overheating, so clean it thoroughly. Inspect the shroud for leaks and repair any damaged parts. Ensure the cooling fins are free from obstructions, and check that the cooling fan is properly installed and functioning correctly.
W
William KellyAug 30, 2025
What to do if my Subaru EA190V is unable igniting?
- I
  ikramerAug 30, 2025
  If your Subaru Engine is unable to ignite, first ensure that there is enough fuel by refilling the fuel tank. A clogged carburetor can also prevent ignition, so check the fuel line and clear any blockages. If the float is leaking, it will need to be repaired. Additionally, a stuck needle valve can cause ignition problems; dismantle the float chamber and clean or replace the needle valve.
A
Alexis PowersSep 1, 2025
Why my Subaru EA190V Engine has an abnormal sound?
- W
  wsmithSep 1, 2025
  If your Subaru Engine is producing abnormal sounds, it could be due to several reasons. Worn piston, piston ring, or cylinder can cause unusual noises; replace the worn parts. Similarly, worn connection rod, piston pin, or piston pin hole can be the culprit; replace these worn parts as needed. A worn crankshaft main neck can also lead to abnormal sounds, so replace the bearing.
K
kristinaobrienSep 4, 2025
What to do if my Subaru Engine is unable to ignite?
- M
  Michele DavisSep 4, 2025
  If your Subaru Engine won't ignite, there could be several reasons. Check if the fuel supply system needs a refill. A clogged carburetor could also be the culprit, so inspect the fuel line and clear any blockages. Other potential issues include a leaking or stuck float or needle valve, which may require dismantling and cleaning or replacement. Also, the ignition system may be faulty, and the spark plug may need replacing. Finally, check the parking wire and insulate if needed.
L
Lisa WillisSep 6, 2025
How to fix power loss in my Subaru EA190V Engine?
- K
  Kara IngramSep 6, 2025
  If your Subaru Engine is experiencing a lack of power, consider these potential causes: There might be air in the fuel line or a clog, so exhaust the air or clear the fuel line. The main oil flow hole may need readjustment. A clogged needle valve hole or main oil flow hole in the carburetor should be cleaned. A clogged fuel cock should be cleaned or the damaged parts replaced. Excessive carbon fouling in the muffler and exhaust pipe or in the combustion chamber needs to be cleared away. Check the air cleaner for clogs and clean the filter element if necessary. Repair any leaks in the intake pipe, and replace worn piston, cylinder, or piston rings. Replace the cylinder gasket if there's air leakage and readjust too big or too small valve clearance.
C
Cynthia NicholsSep 8, 2025
Why does my Subaru EA190V Engine have abnormal exhaust gas color?
- E
  eric95Sep 8, 2025
  Abnormal exhaust gas color in your Subaru Engine could be due to several reasons. Excessively worn piston, cylinder, or piston rings might be the cause and require replacement. Too much carbon deposit in the combustion chamber should be cleared away. Using an improper gasoline brand or low-quality gasoline can also lead to this issue, so replace it with qualified gasoline. Additionally, a clogged air cleaner can contribute to abnormal exhaust gas color, so clean the air cleaner filter element.
A
Andrew ShawSep 12, 2025
How to fix a Subaru EA190V that is starting difficult?
- J
  Jennifer SanchezSep 12, 2025
  If your Subaru Engine is difficult to start, several factors could be at play. First, ensure the fuel system is functioning correctly by filling the fuel tank and opening the fuel cock. A clogged air vent in the fuel filler cap can also cause this issue; try dredging the air vent. Additionally, the carburetor might have an improper or clogged main fuel channel, which can be resolved by readjusting or cleaning it. Make sure to blow through it to clear any blockages.

Subaru EA190V Specifications

General

Compression Ratio	8.5:1
Lubrication System	Splash
Ignition System	Transistorized Magneto Ignition
Starting System	Recoil Starter
Oil Capacity	0.6 liters
Fuel Type	Unleaded gasoline
Engine Oil Type	SAE 10W-30
Engine Type	4-Stroke, Air Cooled, OHV
Fuel Tank Capacity	3.6 L

Summary

Limited Engine Warranty

Warranty Periods

Details warranty duration for different engine uses, distinguishing between private/residential and commercial.

Warranty Qualification

Outlines the requirements for obtaining warranty coverage for Subaru engines.

Warranty Limitations and Exclusions

Lists conditions and situations not covered by the engine warranty.

WORLD WIDE SUPPORT

Global Distributor Locator

Provides a link to find Subaru engine distributors worldwide.

Regional Support Contacts

Contact information for Subaru engine support in North America, Asia, Europe, and Australia.

FOREWORD

Product Registration

Instructions and a web link for registering your Subaru engine for warranty and updates.

Important Notices

Key information regarding emission labels and compliance with US regulations.

SAFETY PRECAUTIONS

Exhaust Gas Precautions

Warnings and guidelines for safe handling of hazardous exhaust gases.

Refueling Precautions

Safety measures to follow when refueling the engine to prevent fire hazards.

Fire Prevention

Safety advice and distance requirements to prevent fires during engine operation.

Other Safety Precautions

General safety advice covering rotating parts, hot surfaces, and adjustments.

PRE-OPERATION CHECKS

Fuel and Fluid Checks

Inspect fuel hoses, joints, oil, and fuel levels before starting the engine.

Fastener and Cleaning Checks

Verify bolt tightness and clean cooling fins and recoil starter.

Operational Safety Precautions

Advice on appropriate clothing and handling of warning labels.

SYMBOLS

General and Control Symbols

Explanation of common operational symbols and engine control indicators.

Regional Warning Symbols

Specific warning symbols designated for the United States and Canada.

COMPONENTS

Engine Component Identification

Diagram and labels identifying key components of the Subaru engine.

ENGINE OIL AND FUEL CHECKS

Engine Oil Check Procedure

Steps for checking engine oil level, capacity, and recommended grades.

Fuel Check Procedure

Guidelines for checking fuel type, capacity, and safety during refueling.

Fueling Safety Precautions

Essential safety warnings and best practices for refueling the engine.

OPERATING PROCEDURES

TYPE 1: Cable Choke Control

Detailed steps for operating the engine with a cable choke control system.

Choking for Cable Control

Specific choking actions required for starting engines with cable choke systems.

STARTING AND STOPPING

Engine Starting Procedure

Step-by-step guide for starting the engine using the recoil starter.

Electric Starter Starting

Specific instructions for starting engines equipped with an electric starter.

Throttle Setting and Stopping

Adjusting engine speed and procedures for stopping the engine.

ENGINE STOPPING METHODS

Stopping with Fuel Valve

Method for stopping the engine by closing the fuel valve.

Stopping for Other Applications

Engine stopping procedures for various applications like washers.

TYPE 2: Manual Choke Operation

Instructions for operating engines with a manual choke system.

MANUAL CHOKE OPERATION

Manual Choke Starting

Steps for choking and starting an engine with a manual choke.

Throttle Setting

Adjusting engine speed after starting with a manual choke.

Stopping the Engine (Manual Choke)

Procedure for safely stopping the engine when using a manual choke.

AUTO CHOKE OPERATION

TYPE 3: Auto Choke Control

Instructions for operating engines equipped with an automatic choke system.

Auto Choke Starting

Steps for starting an engine that uses an automatic choke.

VARIABLE AND FIXED SPEED OPERATION

Throttle Setting for Variable Speed

Adjusting the throttle control for variable engine speed models.

Throttle Setting for Fixed Speed

Operating instructions for fixed engine speed models.

Stopping for Mower and Washer

Procedures for stopping engines on mowers and washers.

PRIMER BULB OPERATION

TYPE 4: Primer Bulb System

Instructions for operating engines utilizing a primer bulb system.

Primer Bulb Starting

Steps for starting an engine using the primer bulb feature.

Stopping for Other Applications

Stopping procedures for various engine applications using primer systems.

ENGINE OPERATION AND STOPPING

Primer Bulb Operation and Precautions

Caution on primer bulb use for warm engines and starting steps.

Throttle Setting and Stopping (Primer)

Adjusting throttle and stopping procedures for primer-equipped engines.

STOPPING PROCEDURES

Stopping Washer and Other Applications

Procedures for stopping engines on washers and other machine types.

Electric Starter Stopping

Stopping procedures specifically for electric starter models.

MAINTENANCE

Routine Maintenance Checks

Covers daily and periodic inspection items for engine upkeep.

Spark Plug and Oil Change

Procedures for inspecting the spark plug and changing the engine oil.

ENGINE OIL AND MAINTENANCE SCHEDULE

Oil Capacity and Type

Specifications for engine oil capacity and recommended grades.

Periodic Maintenance Schedule Table

Table detailing maintenance tasks and recommended intervals.

Air Cleaner Cleaning

Importance and methods for cleaning the engine's air cleaner element.

AIR CLEANER MAINTENANCE

Air Cleaner Element Types and Cleaning

Instructions for cleaning paper, urethane foam, and dual air cleaner elements.

Blade, Hose, and Fastener Checks

Maintenance checks for mower blades, fuel hoses, and engine fasteners.

High Altitude Operation

Considerations and modifications for operating the engine at high altitudes.

PREPARATIONS FOR STORAGE

Fuel Discharge for Storage

Procedure for draining fuel to prevent issues during long-term storage.

Engine Oil and Cleaning for Storage

Adding oil to the cylinder and cleaning the engine before storage.

Spark Arrester Maintenance

Guidelines for cleaning and maintaining the optional spark arrester.

EASY TROUBLESHOOTING

Engine Won't Start: Spark Check

Diagnosing no-start issues by checking for spark across the spark plug electrode.

Engine Won't Start: Compression Check

Troubleshooting no-start conditions by checking engine compression.

Engine Won't Start: Fuel Check

Diagnosing no-start issues by checking fuel supply to the spark plug.

SPECIFICATIONS

Engine Model Specifications

Detailed technical specifications for EA175V and EA190V engine models.

Dimensions, Weight, and Emissions Period

Physical dimensions, dry weight, and emissions durability period of the engines.

FEDERAL EMISSIONS WARRANTY

Warranty Coverage and Parts

Details on what the federal emissions warranty covers and lists covered parts.

Owner's Responsibilities and Service

Owner's duties for maintenance and how to obtain warranty service.

Warranty Exclusions

Lists conditions and circumstances not covered by the federal emissions warranty.

CALIFORNIA EMISSIONS WARRANTY

Warranty Rights and Obligations

Explanation of warranty rights and obligations specific to California emissions.

Manufacturer's Coverage and Owner Duties

Details FUJI's warranty coverage and owner's responsibilities for California.

EMISSIONS WARRANTY DETAILS

Warranted Parts List

Comprehensive list of warranted exhaust and evaporative emission-related parts.

Warranty Exclusions and Conditions

Conditions that may exclude warranty coverage for emissions parts.
