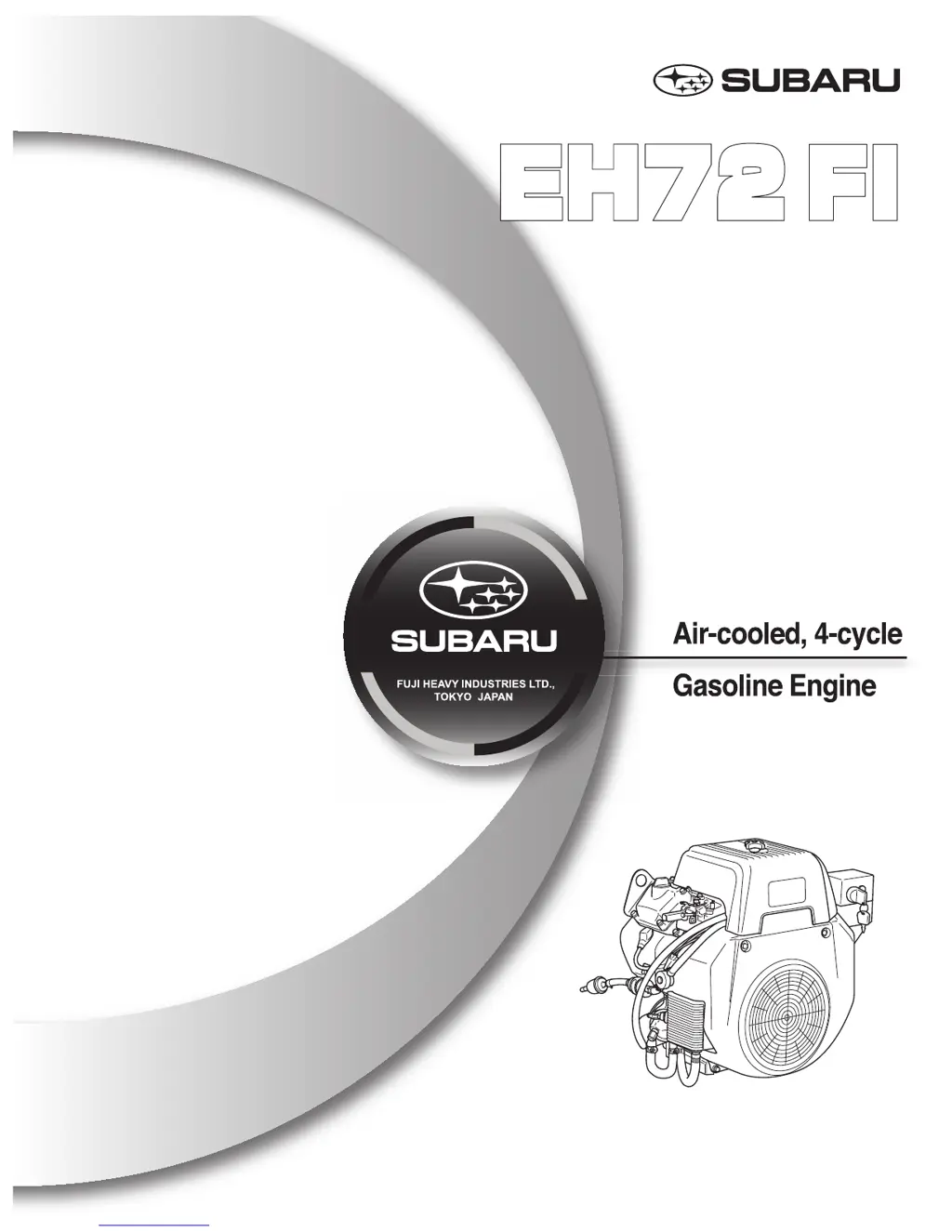

Subaru EH72 FI - User Manual

Questions and Answers

T
Tiffany BaileyAug 16, 2025
What to do if my Subaru EH72 FI won't start?
- D
  Daryl SmithAug 16, 2025
  If your Subaru Engine isn't starting, several factors could be at play. Begin by inspecting the key switch wiring for poor connections, and repair or replace as necessary. Also, examine the wiring between the key switch and starter motor, as well as between the battery and starter motor, replacing any discontinuities. Check the battery itself, ensuring it's not low capacity or discharged; charge or replace it if needed. Next, verify the battery terminal connections, cleaning or replacing them if they're poor. The starter magnetic switch and motor could also be faulty, requiring inspection, cleaning, repair, or replacement. In more severe cases, crankshaft or piston/cylinder seizure might be the cause, necessitating a check, repair, or replacement.
D
David PerryAug 19, 2025
What to do if electric starter operates but Subaru EH72 FI does not start?
- J
  Julia ArnoldAug 19, 2025
  If the electric starter operates but your Subaru Engine doesn't start, first ensure that you have fuel and refill if necessary. Then, check the ignition system wirings for poor connections or discontinuities, and repair or replace them as needed. Finally, the electric starter itself could be faulty and might need repair or replacement.
M
Michael FisherAug 21, 2025
Why is my Subaru Engine consuming so much oil?
- V
  Veronica JonesAug 22, 2025
  High engine oil consumption in your Subaru Engine can stem from several issues. You may have oil leakage that requires tightening of components, a damaged drain plug gasket, an incorrectly fitted oil filter, or loosened main bearing cover bolts. Damaged components like the main bearing cover gasket or crankshaft oil seal can also be culprits. Other potential causes include oil dilution, a faulty piston oil ring, piston rings seizure, wear, or poor contact, excessive wear of the piston and cylinder or valve stem, a high oil level, or a faulty breather. Addressing these issues involves actions such as tightening components, replacing damaged parts, adjusting the oil level, or repairing/replacing the breather.
H
hicksmaryAug 25, 2025
Why is my Subaru Engine fuel consumption so high?
- J
  Julian RossAug 26, 2025
  High fuel consumption in your Subaru Engine can be attributed to several factors. A faulty throttle body, pulsation damper, or fuel pump could be the cause. Additionally, low compression or overcooling might contribute to the issue. Resolving this involves checking and potentially replacing the faulty components, as well as checking and adjusting the load and/or engine speed to address overcooling.
G
greenangelaAug 30, 2025
What causes starting difficulties in a Subaru EH72 FI?
- P
  Parker LeeAug 31, 2025
  Starting difficulties with your Subaru Engine can stem from a discharged battery, which requires charging. Other potential causes include poor connections between the battery and starter motor, or between the battery and ground, both of which necessitate cleaning or repair. A faulty electric starter will need repairing or replacing. Finally, using improper engine oil can also lead to starting issues, so replace it with the recommended type.
R
Richard ThomasSep 3, 2025
Why is my Subaru EH72 FI misfiring?
- C
  Carrie McdowellSep 3, 2025
  Engine misfire in your Subaru can be caused by several factors. Check for an improper spark plug gap or damaged electrode, and clean, adjust, or replace as necessary. A faulty ignition coil or damaged ignition system wirings can also be the cause; replace the coil and check/replace any damaged wirings. Other potential issues include a lean or rich air/fuel mixture, a clogged or faulty throttle body, a faulty pulsation damper or fuel pump, and improper gasoline or water infiltration. Addressing these involves checking and replacing the throttle body, pulsation damper, and fuel pump, as well as replacing the gasoline if it's contaminated.
R
Rebekah MartinezSep 5, 2025
What causes Subaru EH72 FI Engine core components malfunction?
- M
  Maria GuzmanSep 5, 2025
  Malfunctions in the core components of your Subaru Engine can arise from several issues. Insufficient tightening of cylinder head bolts needs checking and retightening. Wear of the piston, piston ring, and/or cylinder requires repair or replacement. Improper contact or seizure of the valve and seat also necessitate repair. Other causes include improper valve clearance, which should be adjusted, and intake or throttle body gasket leakage, addressed by retightening bolts or replacing the gasket. Finally, insufficient tightening of the spark plug should be resolved by retightening.
J
Joe ReedSep 9, 2025
What causes fuel system malfunction in Subaru Engine?
- N
  ncookSep 9, 2025
  Fuel system malfunctions in a Subaru Engine can stem from various causes. These include having no fuel in the fuel tank (refill as needed), a clogged fuel pump or fuel hose (clean or replace), air mixing into fuel lines (check and adjust the connecting portion), and improper gasoline or water infiltration (replace the fuel). Other potential issues involve the throttle body (repair or replace, check with failure diagnosis system, clean or replace, check and adjust or replace), poor connection of fuel pump wiring (check with failure diagnosis system), an improper pulsation damper (replace), and an improper temperature sensor (check with failure diagnosis system and replace).
B
brownjenniferSep 12, 2025
What causes insufficient output in a Subaru EH72 FI?
- T
  tyler44Sep 12, 2025
  Insufficient output in a Subaru Engine can be due to several factors. Low compression or cylinder head gasket leakage may require retightening or replacing the gasket. Piston ring(s) seizure or wear, as well as piston or cylinder wear, often necessitate replacement or repair. Incorrect valve and seat contact or valve stem seizure should be addressed through repair or replacement. Additionally, improper valve clearance should be adjusted.
C
Christopher GriffinNov 27, 2025
What causes detonation in a Subaru Engine?
- J
  Julie Nelson PhDNov 27, 2025
  Detonation in a Subaru Engine can arise from several issues. These include poor connection of ignition system wirings, improper or damaged spark plugs, lean or rich air/fuel mixture, and a damaged throttle body. Clogged or damaged fuel lines, air mixing from the air intake system, carbon deposits in the combustion chamber, and a faulty cylinder head gasket can also contribute. Additional factors are improper valve clearance, valve heat deterioration, valve spring deterioration, and improper valve timing. Solutions involve properly connecting wirings, cleaning or replacing spark plugs and the throttle body, cleaning or replacing fuel lines, properly connecting the air intake system or replacing the gasket, removing and cleaning carbon deposits, replacing the cylinder head gasket, and adjust...

Summary

Preface

1. Specifications

2. Features

Higher Power Output

Explains the engine's increased power output due to increased inlet air volume.

Environmentally Friendly

Details fuel efficiency improvements and compliance with emission regulations.

Compact Design

Notes the compact design achieved by integrating the ECU into the throttle body.

User Friendly

Covers excellent startability and better response due to electronic fuel injection.

3. Description of Fuel System

Electric Fuel Pump

Describes the electric fuel pump, its location, and actuation by the DC battery.

Fuel Pressure Regulator

Explains the function of the diaphragm-type fuel pressure regulator.

Fuel Injector

Details the fuel injector's role in metering and injecting fuel into the throttle bore.

Engine Control Unit (ECU)

Explains the ECU's monitoring of engine conditions and control of fuel injection.

4. Disassembly and Reassembly

Preparations and Suggestions

Offers advice and preparation steps for safe and organized disassembly.

Special Tools

Lists the necessary specialized tools for engine disassembly.

Disassembly Procedures (Difference)

Details specific steps for disassembling certain engine parts.

Reassembly Procedures (Difference)

Details specific steps for reassembling certain engine parts.

Break-in Operation

Explains the proper procedure for running in a new or overhauled engine.

5. Diagram

Wiring

Illustrates the engine's electrical wiring connections.

System Block

Shows the flow and interconnections within the engine system.

6. Throttle Body

Specifications

Lists the technical specifications for the throttle body.

Functions and Construction

Explains the operational principles and build of the throttle body.

Fuel System Outline

Provides an overview diagram of the fuel system.

Fuel System Testing and Diagnosis

Details procedures for troubleshooting the fuel system.

7. Installation

Installing

Covers engine mounting, positioning, and connection to machinery.

Ventilation

Stresses the importance of proper ventilation for engine cooling and operation.

Exhaust Gas Discharge

Advises on safe handling and discharge of noxious exhaust gases.

Fuel System

Outlines fuel system installation requirements for remote fuel tanks.

Power Transmission to Driven Machines

Explains methods for connecting engine power to driven equipment.

8. Troubleshooting

No Engine Operation

Addresses common issues preventing the engine from starting.

Starting Difficulties

Lists common causes and remedies for engine starting problems.

Insufficient Output

Covers causes and solutions for reduced engine performance.

Overheat

Details troubleshooting for engine overheating.

Rough Idling

Explains causes and fixes for uneven engine idling.

High Engine Oil Consumption

Addresses reasons for excessive engine oil usage.

High Fuel Consumption

Discusses factors leading to increased fuel usage.

Detonation

Covers causes and remedies for engine detonation.

Engine Misfire

Lists causes and solutions for engine misfires.

Diagnosis Code

Information on the engine's failure diagnosis system.

How to Operation

Instructions on using the failure diagnosis system.

Failure Code

Table of diagnostic codes and their corresponding issues.

9. Maintenance and Storage

Daily Maintenance

Essential daily checks for engine operation.

Periodic Maintenance Schedule

Scheduled maintenance tasks for engine longevity.

Spark Arrester (Optional)

Details on the spark arrester's function, cleaning, and maintenance.

Engine Storage

Procedures for preparing and storing the engine for inactivity.

Subaru EH72 FI Specifications

General

Brand	Subaru
Model	EH72 FI
Category	Engine
Language	English
