4-3 DISASSEMBLY PROCEDURES (DIFFERENCE)
Step Parts to remove Remarks and procedures Parts Fasteners
8 Choke lever Choke lever not applicable.
9
Governor rod (1) Remove the governor rod spring from rod holder.
(2) Pick up the rod holder and remove the governor rod.
(See Fig.4-1)
(3) Remove the governor rod and the rod spring from
the governor lever.
(4) Loosen the bolt and remove the governor lever.
M6 bolt and washer : 1pc.
GOVERNOR ROD
ROD HOLDER
Turn the rod holder
clockwise to loosen.
VIEW A

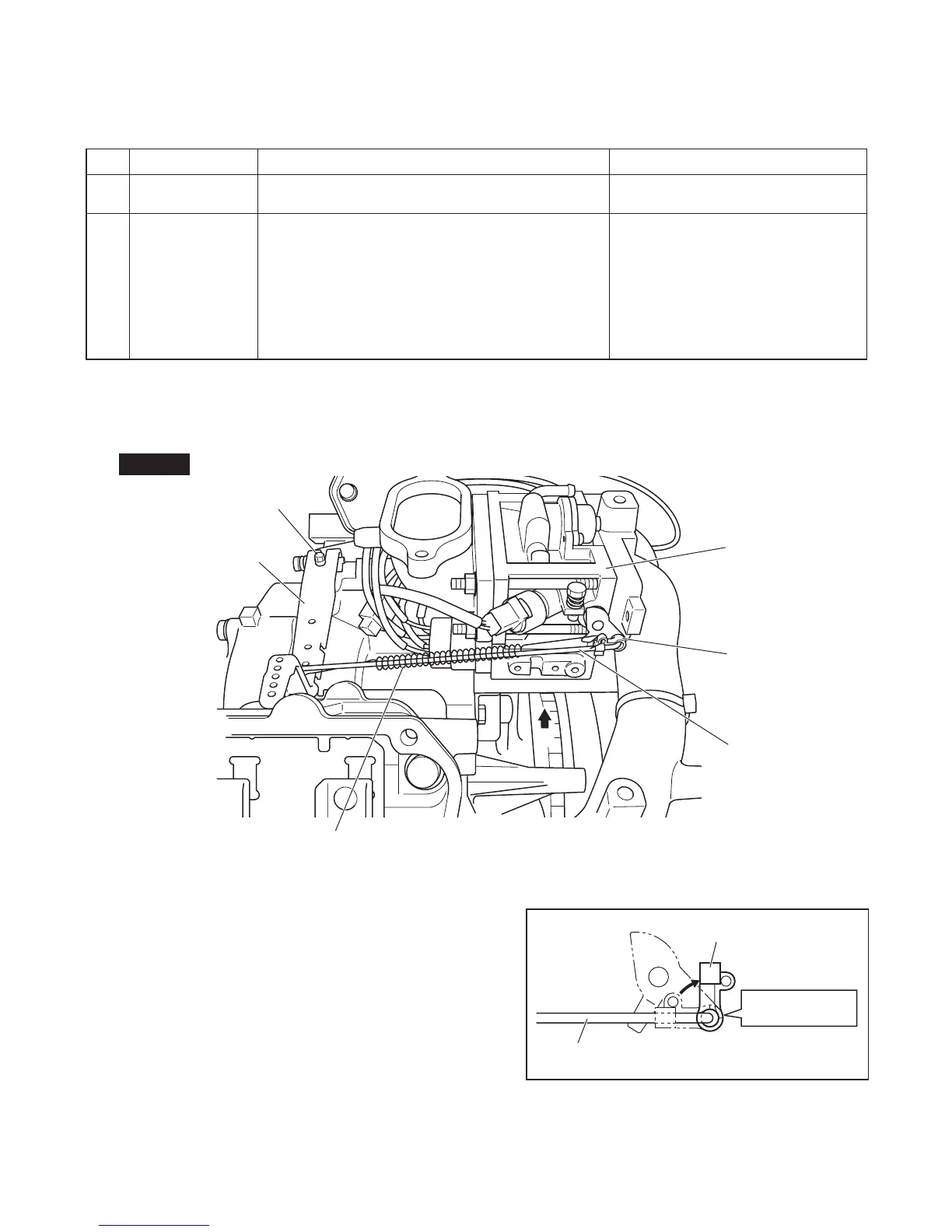

Fig. 4-1
STEP 9
GOVERNOR SHAFT
GOVERNOR LEVER
ROD SPRING
GOVERNOR
ROD
ROD HOLDER
THROTTLE BODY
A
L
R
