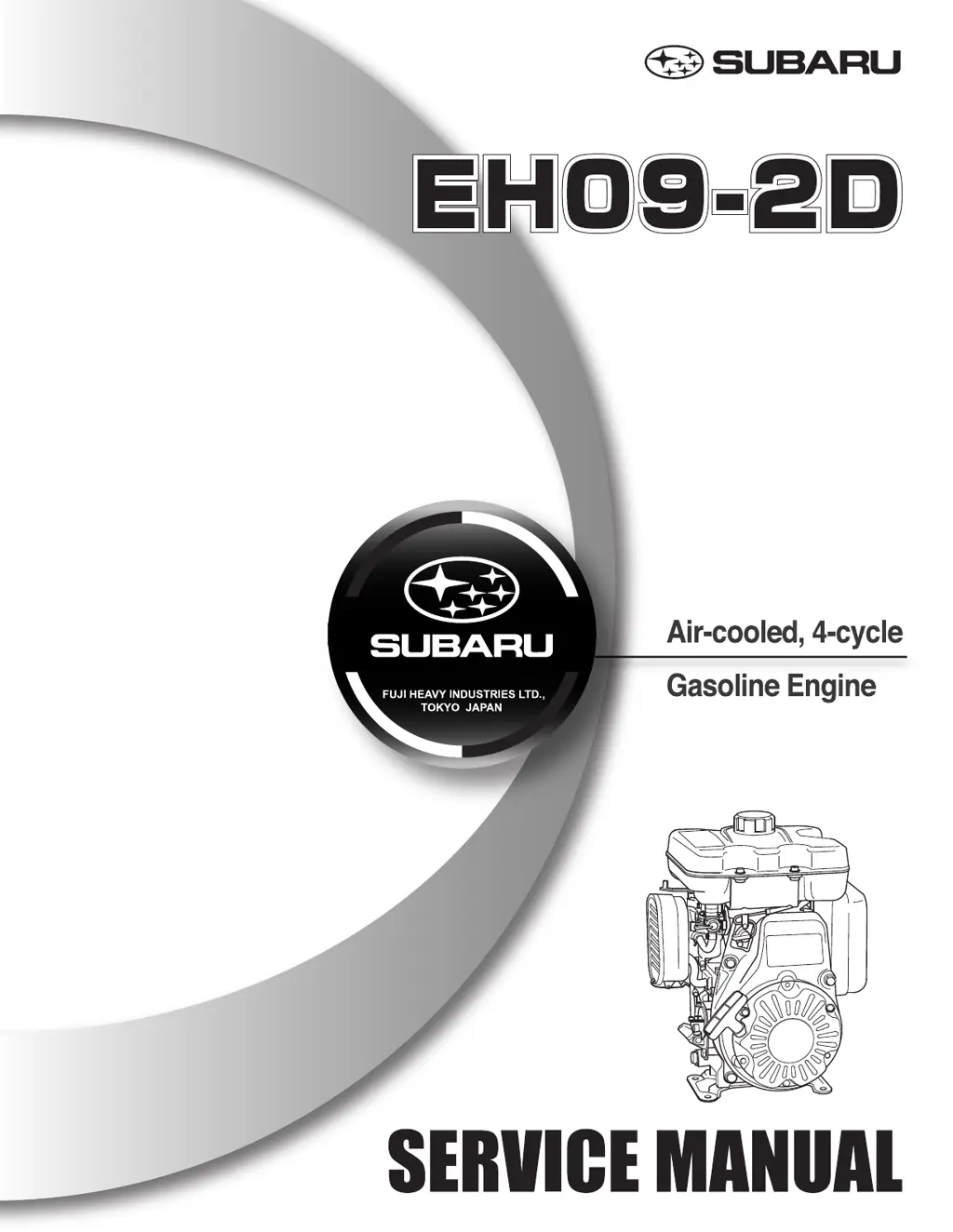

Subaru EH09-2D - User Manual

Questions and Answers

T
Tamara PerezAug 5, 2025
How to fix abnormal engine noise in my Subaru EH09-2D?
- I
  Ian MitchellAug 5, 2025
  Abnormal engine noise in your Subaru Engine can be caused by several factors. Check the ignition system for any issues and inspect and tighten the components, or clean or replace them as needed. Issues with the fuel system may also be the culprit; clean, adjust, or replace the carburetor, or overhaul and clean the system. Additionally, abnormal noise can stem from the cylinder head, which may require cleaning or replacement, or from valve system problems, which may need adjustment or replacement.
J
John EdwardsAug 10, 2025
Why is my Subaru Engine having starting difficulties?
- J
  Jason VazquezAug 10, 2025
  Starting difficulties in your Subaru Engine can stem from several issues. Check the ignition system; you may need to adjust the gap, clean, or replace components. Fuel system problems could also be the cause; try refilling, cleaning, or replacing parts, and ensure all joints are properly tightened. Engine core components might also be at fault; inspect and retighten them, and repair or replace as necessary. Adjust components, retighten, and replace gaskets where needed.
A
Amber SummersAug 17, 2025
Why is my Subaru EH09-2D experiencing high fuel consumption?
- M
  Michelle AcevedoAug 17, 2025
  High fuel consumption in your Subaru Engine can be attributed to a few factors. It could be related to the fuel system; try cleaning or replacing components. Issues within the engine core components may also be responsible; in that case, check and repair them. Also, check and adjust the load and/or engine speed.
W
williamkellyAug 23, 2025
What to do if my Subaru EH09-2D Engine has poor output?
- B
  brenda61Aug 23, 2025
  If your Subaru Engine has poor output, consider these potential causes: insufficient compression, which may require retightening, gasket replacement, or parts replacement; ignition system problems, addressable by replacing or adjusting components; fuel system malfunction, which may need an overhaul, cleaning, or parts replacement; or low air intake volume, which can be resolved by cleaning or replacing the air intake components.
M
Monica MccoyAug 29, 2025
How to solve rough idling on a Subaru Engine?
- T
  timothy50Aug 29, 2025
  To address rough idling in your Subaru Engine, you can try the following: * Adjust the carburetor system or check and clean it. * Inspect the intake system, tightening it and replacing the gasket if needed. * Replace the cylinder head if necessary. * Adjust, repair, or replace components of the valve system. * Check, adjust, or replace the spark plug in the ignition system.

Summary

1. SPECIFICATIONS

2. DISASSEMBLY AND REASSEMBLY

2-1 DISASSEMBLY PROCEDURES

Step-by-step instructions for disassembling engine components.

2-2 TIGHTENING TORQUE CHART

Provides torque specifications for various engine fasteners during assembly.

2-3 REASSEMBLY PROCEDURES

Detailed steps for reassembling engine parts after disassembly.

2-4 BREAK-IN OPERATION

Guidance on running in a new or overhauled engine to ensure proper performance.

2-5 ENGINE SPEED ADJUSTMENT

Procedures for adjusting the engine's high and low speed settings.

3. TROUBLESHOOTING

4. SERVICE DATA

4-1 CLEARANCE DATA AND LIMITS

Provides standard and limit dimensions for engine parts, including clearances.

4-2 TORQUE SPECIFICATIONS

Lists tightening torque values for critical engine fasteners.

4-3 OIL GRADE CHART

Guide for selecting engine oil based on ambient temperature and viscosity.

Subaru EH09-2D Specifications

General

Fuel System	Carburetor
Cooling System	Air-cooled
Engine Type	4-stroke, OHV, air-cooled, single-cylinder gasoline engine
Bore x Stroke	54 mm x 38 mm
Fuel	Unleaded gasoline
Oil Capacity	0.4 L
Ignition System	Transistorized Magneto
