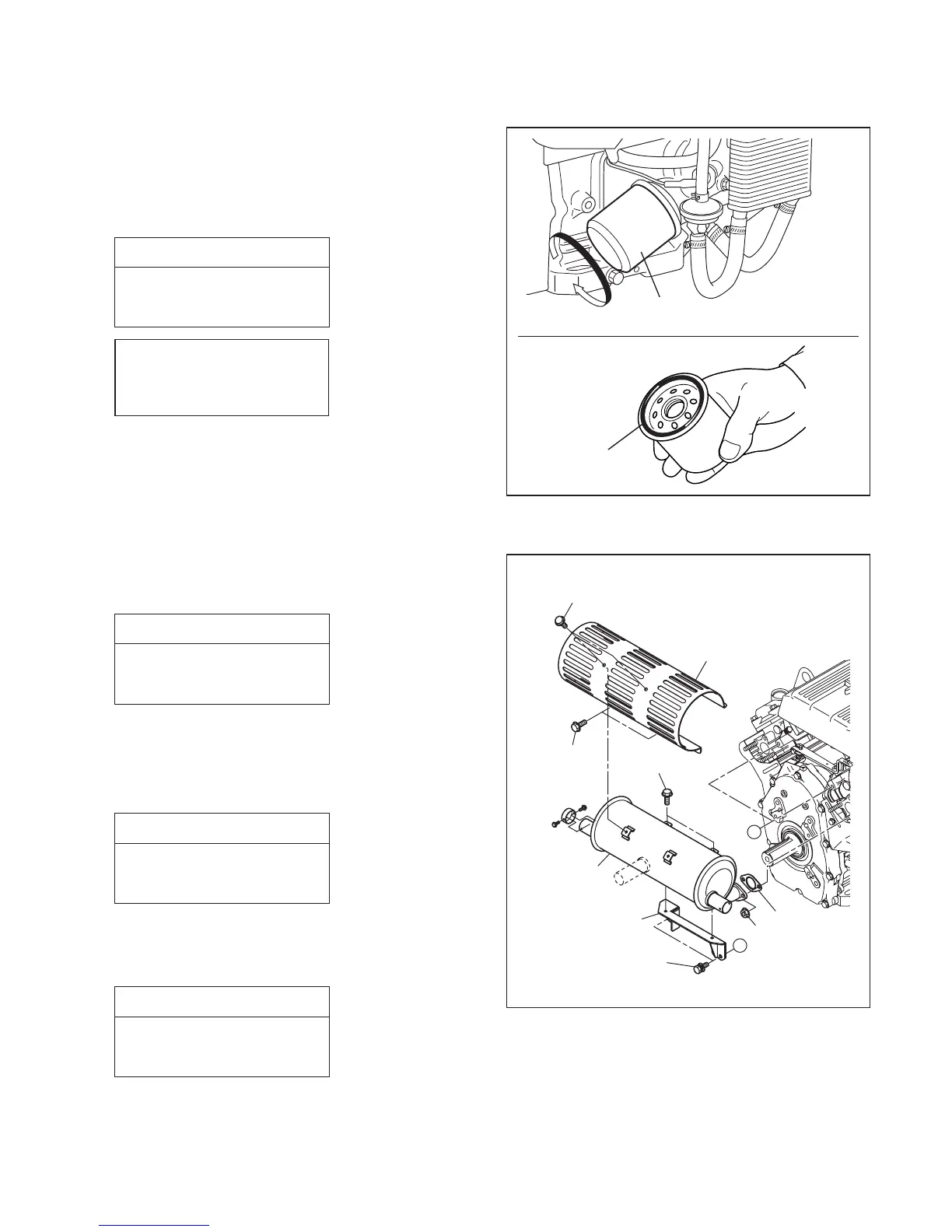

31) MUFFLER
(1) Install Muffler bracket onto Cylinder head.
M8 x 20 bolt & washer : 2 pcs.
30) OIL FILTER
Apply oil to O-ring and install oil filter by
tightening about 3/4 turns after attaching
crankcase surface.
(2) Install Muffler onto Muffler bracket and
Cylinder head.
M8 SUS flange nut : 4 pcs.
(3) Install Muffler cover onto Muffler.
M6 Flange bolt : 6 pcs.
A
M6 FLANGE BOLT
A
MUFFLER
BLACKET
MUFFLER
COVER
M6 FLANGE
BOLT
M8 BOLT & WASHER
M6 FLANGE BOLT
GASKET
MUFFLER
M8 SUS
FLANGE NUT
O RING
OIL FILTER
3/4 TURNS
Tightening torque
16.6 - 18.6 N•m
(170 - 190 kgf•cm)
(12.3 - 13.7 ft•lb.)
Tightening torque
9.9 - 14.7 N•m
(100 - 150 kgf•cm)
(16.3 - 19.8 ft•lb.)
Tightening torque
16.6 - 18.6 N•m
(170 - 190 kgf•cm)
(12.3 - 13.7 ft•lb.)
Tightening torque
6.8 - 8.8 N•m
(70 - 90 kgf•cm)
(5.0 - 6.5 ft•lb.)
NOTE ;
Start engine after assembling,
and check for no oil leakage
from oil filter.
