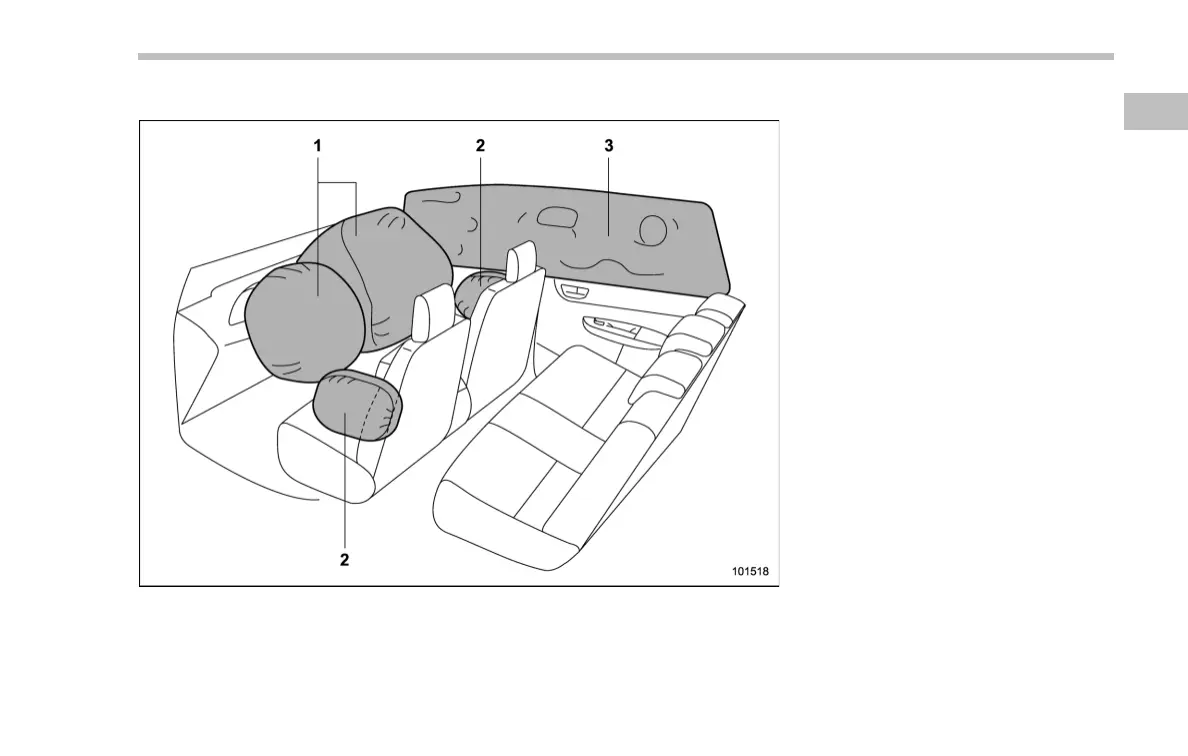

& Components
1) SRS frontal airbag
2) SRS side airbag
3) SRS curtain airbag
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
Front passenger’s SRS frontal airbag:
near the top of the dashboard under an
“SRS AIRBAG” mark
SRS side airbag: in the door side of each
front seat seatback which bears an “SRS
AIRBAG” label
SRS curtain airbag: in the roof side
(between the front pillar and a point over
the rear seat)
An “SRS AIRBAG” mark is located at the
top of each center pillar.
Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)
1-45
– CONTINUED –
To Next Page
