ABS(diag)-10
ABS (DIAGNOSTICS)

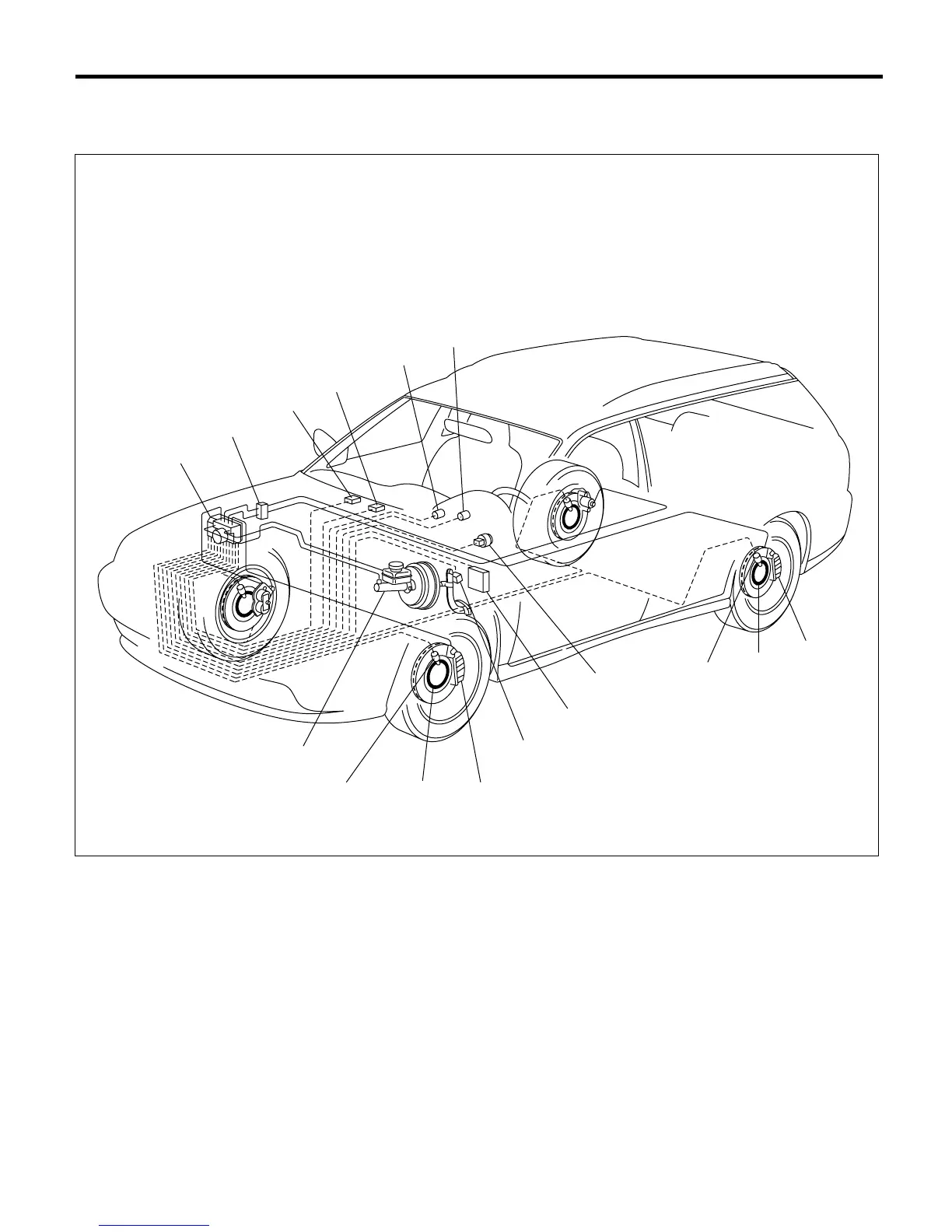

Electrical Component Location
4. Electrical Component Location
A: LOCATION
(1) ABS control module and hydraulic
control unit (ABSCM&H/U)
(5) Data link connector
(For Subaru Select Monitor)
(9) Caliper body
(10) G sensor
(2) Two-way connector (6) Transmission control module
(TCM) (AT model)
(11) Stop light switch
(3) Diagnosis connector (Used for
ABS sequence control.)
(12) Master cylinder
(7) Magnetic encoder seal (13) Brake and EBD warning light
(4) ABS warning light (8) ABS wheel speed sensor
ABS00458
(1)
(12)
(2)
(6)
(4)
(13)
(11)
(8)
(7) (9)
(3)
(10)
(5)
(8)
(7)
(9)
To Next Page
