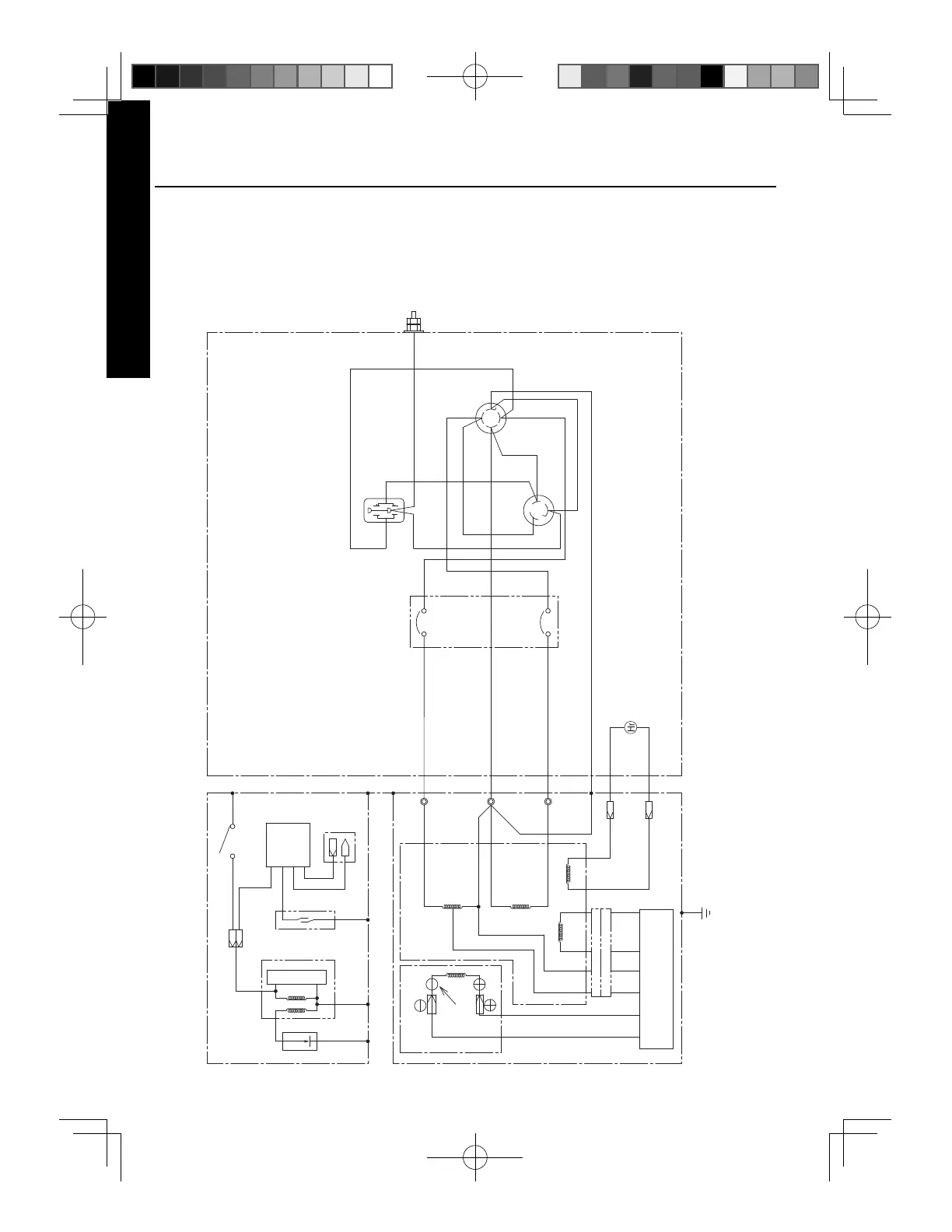

12. WIRING DIAGRAM
AC winding 2 AC
winding 1
Grn
Org
Y/R
Blk
R
R
R R
R
R
Blk Blk
Grn GrnGrn
Blk
Ignition coil
Oil sensor switch
Spark plug
Oil sensor unit
Y
Blk
Blu
Blu
Blu
Blu
Grn
Grn
Blk Blk
ROTOR S
TATOR
Slip ring
Sub coil
AVR unit
Earth (Ground)
terminal
AC circuit
breaker
Blk Blk
W
Grn
GENERATOR
CONTROL PANEL
ENGINE
Engine switch
W
W W
GrnGrn
20A
20A
W
X
W
X
W
X
W
X
Y
R
W
Blk Blk
W W W
R W
R Y
Hour meter
SGX3500 (60Hz-120/240V)
“THERE IS A PERMANENT CONDUCTOR BETWEEN THE GENERATOR
(STATOR WINDING) AND THE FRAME”
Blk : Black Wiring color code Blk/W : Black/White Blu : Blue LBlu : Light blue
Brn : Brown
Brn/W : Brown/White Grn : Green Grn/W : Green/White
Org : Orange Gry : Gray R : Red W : White
Y : Yellow Grn/Y : Green/Yellow W/Blk : White/Black Pur : Purple
