31
-
13. ASSEMBLY PROCEDURES

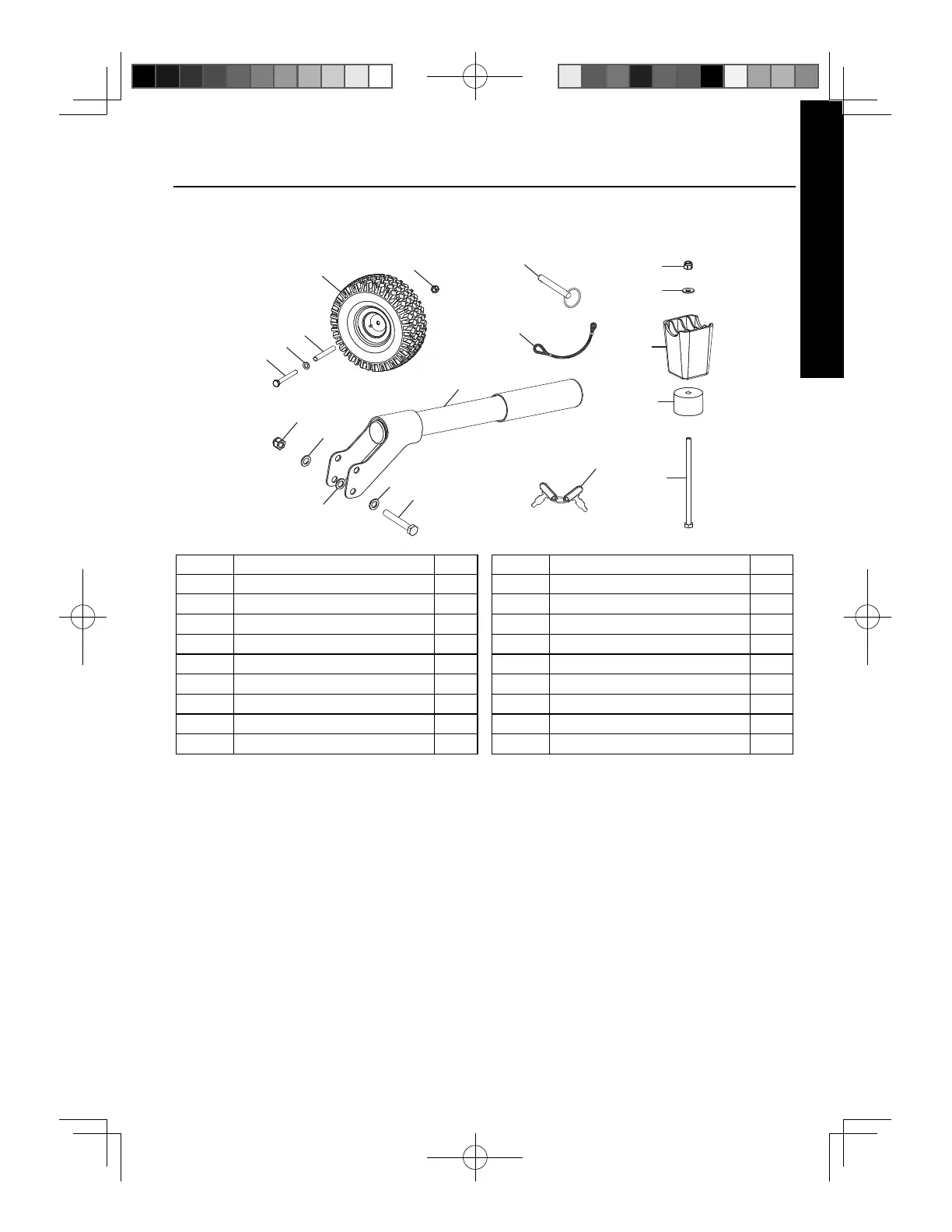

Check that following accessories come with your generator.
UNPACKING
This product requires assembly.

Carefully cut the box down the sides then remove the machine and any
accessories from the box. Make sure that all items listed in the packing list are
included.
NOTE:
This machine is heavy and requires a minimum of two people to lift. To avoid
back injury, lift with your legs and not your back.

Inspect the unit carefully to make sure no damage occurred during shipping.

Do not discard the packing material until you have carefully inspected and
satisfactorily operated the product.

If any parts are damaged or missing, please call local service center for assistance.
①
②
③
④
⑤
⑥
⑦
⑬
⑧
⑨
⑪
⑫
⑩
⑰
⑯
⑮
⑭
⑯
⑱
Key No. Description Qty. Key No. Description Qty.
①
Bolt(3/8-16×4-1/4in.) 2
⑩
Rubber support 2
②
Washer(3/8in.) 2
⑪
Rubber foot 2
③
Spacer(0.38in.ID) 2
⑫
Bolt(1/4-20×115mm) 2
④
Wheel 2
⑬
Nylon washer(5/16in.) 2
⑤
Lock nut(3/8-16) 2
⑭
Bolt(5/16-18×2-1/4in.) 2
⑥
Handle lock pin 2
⑮
Handle 2
⑦
Lanyard 2
⑯
Washer(5/16in.) 4
⑧
Lock Nut(1/4-20) 2
⑰
Lock nut(5/16in.) 2
⑨
Washer(M6) 2
⑱
Switch Keys(Just for SGX7500) 2
