Subaru SGX5000 - Install Generator Wheels

ENGLISHFRANÇAISEESPAÑOL
-
32
-

Do not use this product if it is not completely assembled or if any parts
appear to be missing or damaged.
Use of a product that is not properly and completely assembled could result
in serious personal injury.

Do not attempt to modify this product or create accessories not
recommended for use with this product.
Any such alteration or modification is misused and could result in a
hazardous condition.
WARNING
NOTE :
Do not put fuel or lubricant in the generator before installing the feet, wheels and
handles.

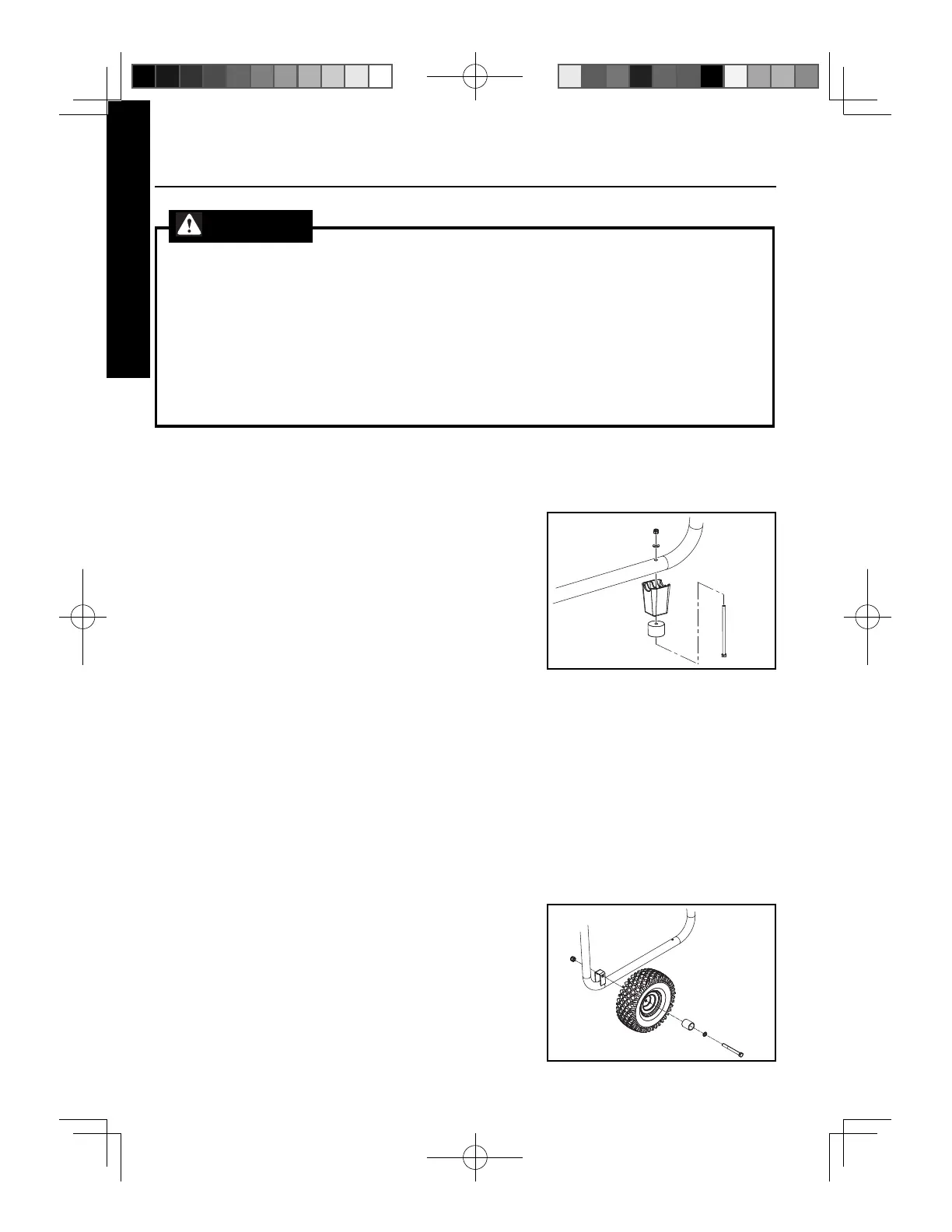

Locate the following items:
2 Rubber feet
2 Rubber support
2 Lock nuts(1/4-20)
2 Washers(M6)
2 Bolts(1/4-20×115mm)
Tightening torque: 2 to 3N·m (0.2 to 0.3kg·m)
Locate the following items:
2 Bolts(3/8-16 ×4-1/4in.)
2 Washers(3/8 in.)
2 Spacers(0.38in.ID)
2 Wheels
2 Lock nuts(3/8-16)
Tightening torque: 8 to 12N·m (0.8 to 1.2kg·m)

Insert bolt through rubber foot and rubber support, then through frame.

Thread washer over the bolt, then install nut. Tighten nut securely.
NOTE:
Be careful not to over tighten so that foot material collapses.

Repeat with remaining foot.
INSTALLING THE WHEELS
Wheels are provided to assist in moving the generator to the desired location and
should be installed on the opposite side of the handle.
