Subaru SGX5000 - Inflate Tires Correctly; Attach the Generator Handle

ENGLISHFRANÇAISEESPAÑOL
-
33
-
NOTE :
The tires should be inflated using a hand pump only. Do not use an air compressor.
Do not over-inflate the tires of this unit.
Locate the following items:
2 Handles
2 Bolts(5/16-8×2-1/4in.)
2 Washers(5/16in.)
2 Lock nuts(5/16in.)
2 Nylon washer(5/16in.)
Tightening torque: 4 to 6N·m (0.4 to 0.6kg·m)

Raise the end of the generator opposite the handle high enough to gain access
to the frame bottom; securely position props underneath to support.

Insert a wheel spacer into the center of the wheel.

Place a washer on the bolt, then slide bolt through the wheel.

Slide the bolt through the U-bracket frame on generator.

Install nut on bolt and tighten securely.

Repeat the process on the other side to install second wheel.


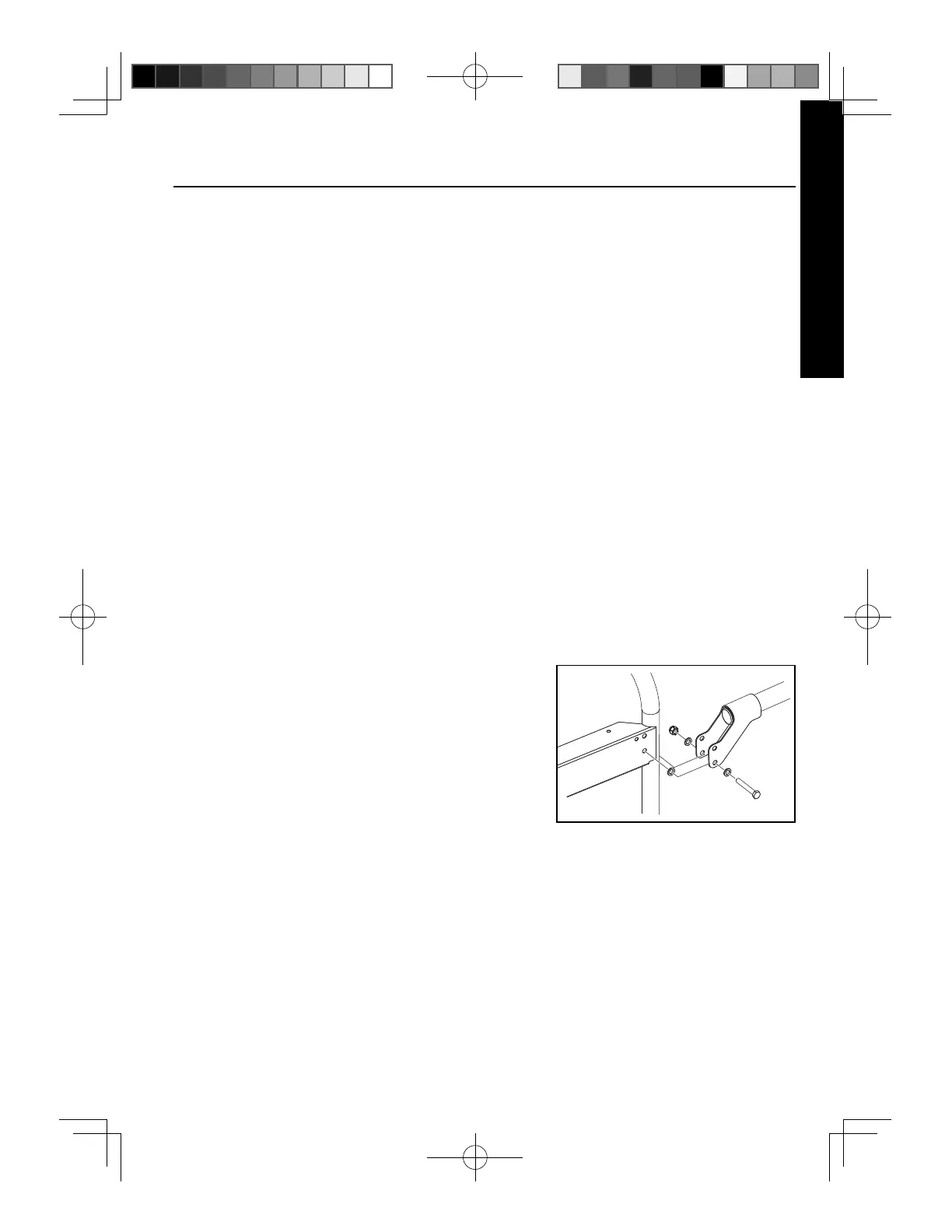

Place handle on the frame

Place a washer on the bolt, then slide bolt through the handle and the frame.

Place a washer on the bolt, then install nut on the bolt and tighten securely.

Repeat the process on the other side to install second handle.
INFLATING THE TIRES
ATTACHING THE HANDLE
