Models 424 and 424FS Installation 4
34
1
/2"
(876)
ROUGH
O
PENING
HEIGHT
34
1
/4"
(870)
MINIMUM
HEIGHT
REQUIRED
ROUGH OPENING
WIDTH
24"(610) MODEL 424
24
3
/8"(619) MODEL 424FS
15
1
/2"
(394)
24"
(610)
ROUGH
OPENING
DEPTH
LOCATE ELECTRICAL
WITHIN SHADED AREA
E
4
1
/2"
(
114
)
2
1
/2"
(64)
23
7
/8"
(606)
MODEL 424
ANTI-TIP BRACKET
MODEL 424FS
ANTI-TIP BRACKET
90˚
145˚
MAXIMUM
DOOR SWING
44" (1118)
DOOR CLEARANCE
26" (660)
DOOR CLEARANCE
25
3
/8"
(644)
25
3
/8"
(645)
FRONT VIEW
T
OP VIEW
Models 424 and 424FS Installation
T
he Sub-Zero model 424FS wine storage unit is designed
to be attractive in a stand alone setting. It can also be slid
into surrounding cabinetry with clearance dimensions
slightly different than the standard built-in model 424.

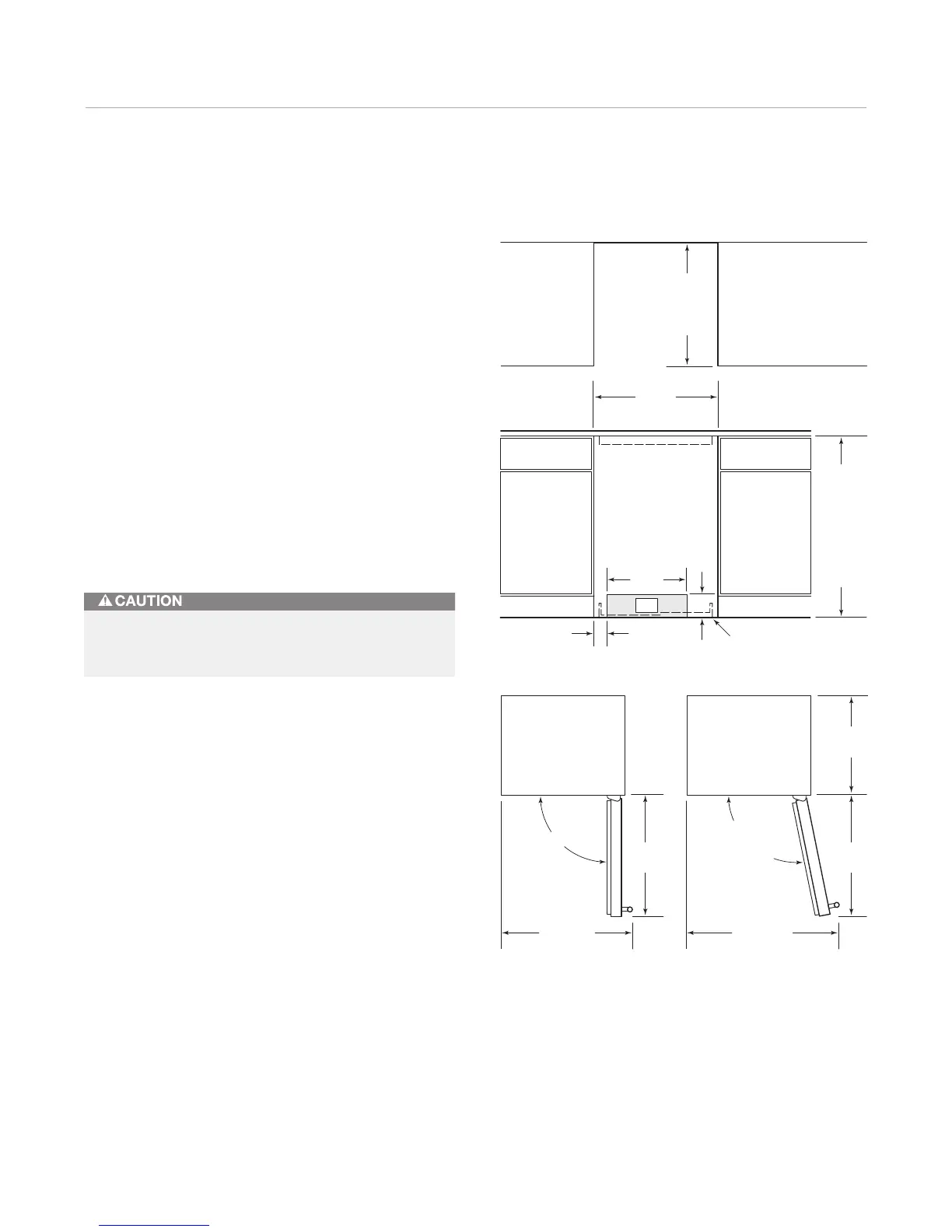

Make sure that the finished rough opening where the wine
storage unit is to be installed is properly prepared. Refer
to the installation specifications illustration for rough
opening dimensions, door swing clearance and electrical
placement for models 424 and 424FS.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 3" (76) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.
IMPORTANT NOTE: Make sure the floor under the unit is
level with the surrounding finished floor.
Do not load wine into the wine storage unit until the
installation is complete.
Door swing clearances are based on stainless steel door and
handle dimensions.
