2-13
7040127 - Revision C - May, 2015
Built-In (BI) Series
Built-In (BI) Series
(SWS #4250000)
(SWS #4250000)
Installation Information
SCREW COVER
HANDLE

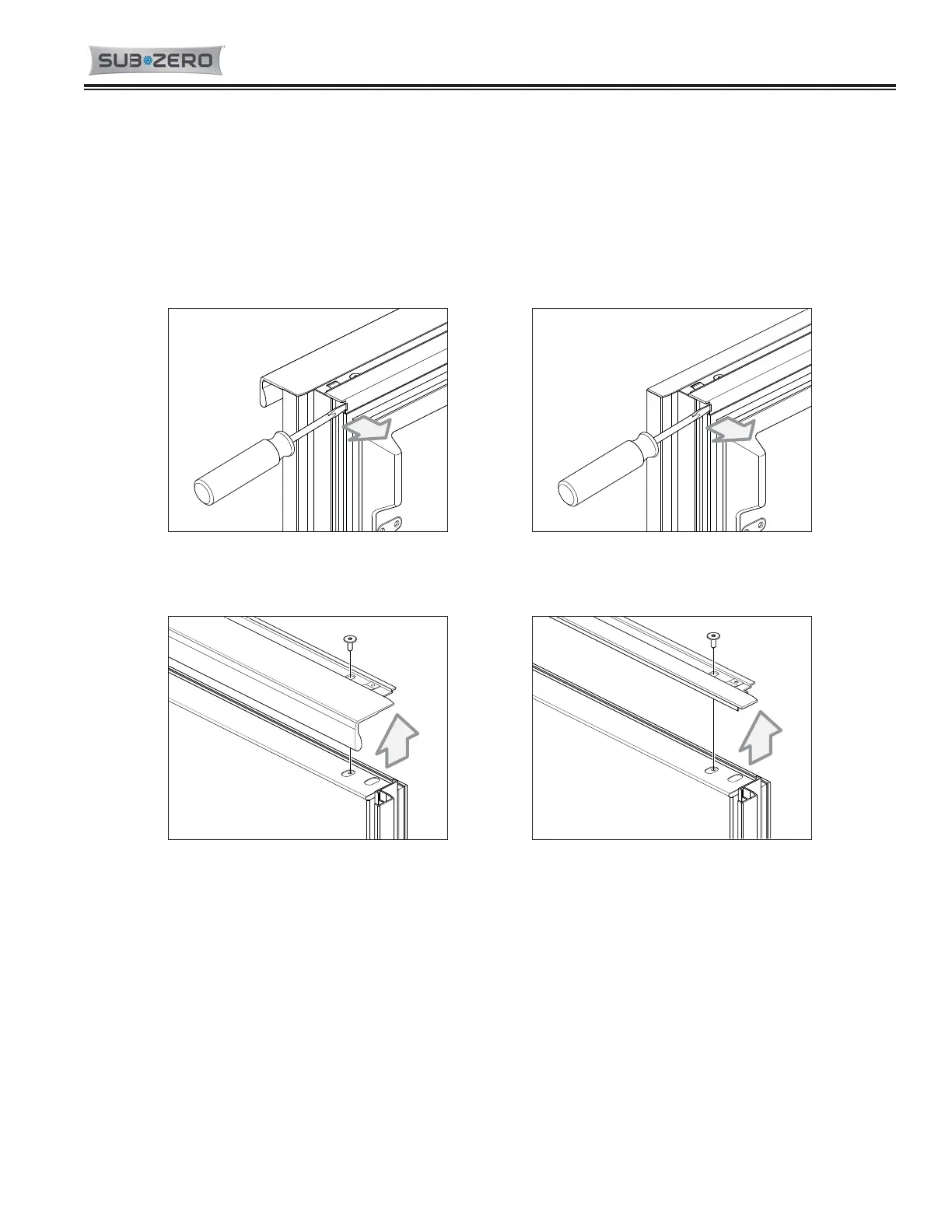

Figure 2-17A. Screw Cover Removal
with Handle
DRAWER
HANDLE
Figure 2-18A. Handle Removal
SCREW COVER
HANDLE-SIDE TRIM
Figure 2-17B. Screw Cover Removal
with Handle-Side Trim
DRAWER
HANDLE-SIDE TRIM
Figure 2-18B. Handle-Side Trim
Removal
Drawer Handle / Handle-Side Trim Removal Procedure:
1. At the back right-hand side of the drawer handle or handle-side trim, insert a flat blade screwdriver into the notch
in the screw cover and pry the cover away form the handle or handle-side trim, disengaging the screw cover
from the clips (See Figures 2-17A and 2-17B).
2. With a T-20, 6-lobe Torx type bit, extract the handle or handle-side trim mounting screws and pull the handle or
trim from the drawer (See Figures 2-18A and 2-18B).
