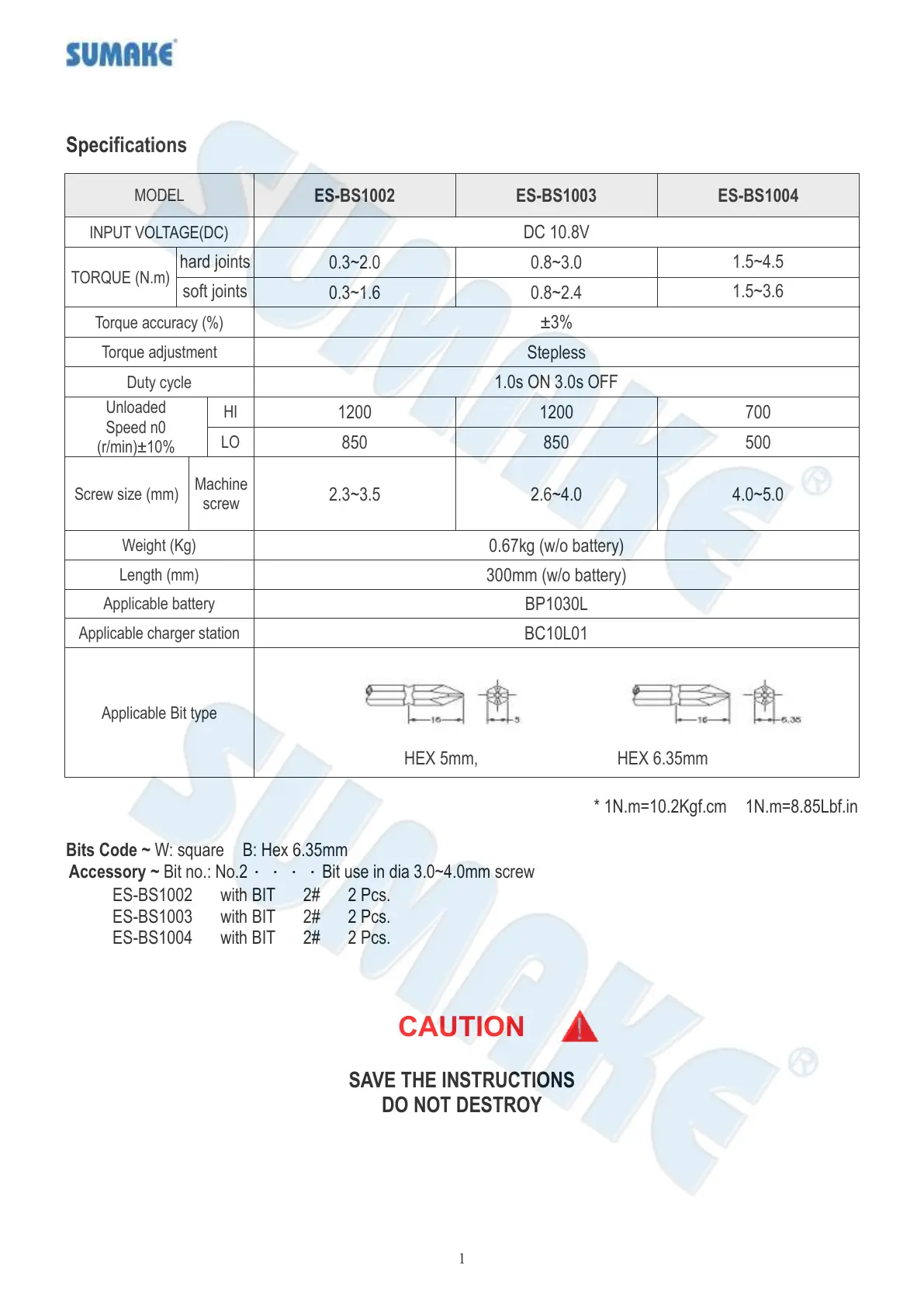

Sumake ES-BS1002 - Specifications

1
Specifications
* 1N.m=10.2Kgf.cm 1N.m=8.85Lbf.in
Bits Code ~ W: square B: Hex 6.35mm
Accessory ~ Bit no.: No.2．．．．Bit use in dia 3.0~4.0mm screw
ES-BS1002 with BIT 2# 2 Pcs.
ES-BS1003 with BIT 2# 2 Pcs.
ES-BS1004 with BIT 2# 2 Pcs.
CAUTION
SAVE THE INSTRUCTIONS
DO NOT DESTROY
MODEL
ES-BS1002
ES-BS1003
ES-BS1004
INPUT VOLTAGE(DC)
DC 10.8V
TORQUE (N.m)
hard joints
0.3~2.0
0.8~3.0
1.5~4.5
soft joints
0.3~1.6
0.8~2.4
1.5~3.6
Torque accuracy (%)
±3%
Torque adjustment
Stepless
Duty cycle
1.0s ON 3.0s OFF
Unloaded
Speed n0
(r/min)±10%
HI
1200
1200
700
LO
850
850
500
Screw size (mm)
Machine
screw
2.3~3.5
2.6~4.0
4.0~5.0
Weight (Kg)
0.67kg (w/o battery)
Length (mm)
300mm (w/o battery)
Applicable battery
BP1030L
Applicable charger station
BC10L01
Applicable Bit type
HEX 5mm, HEX 6.35mm
