Summer 07970C - Installation

4
installation
2

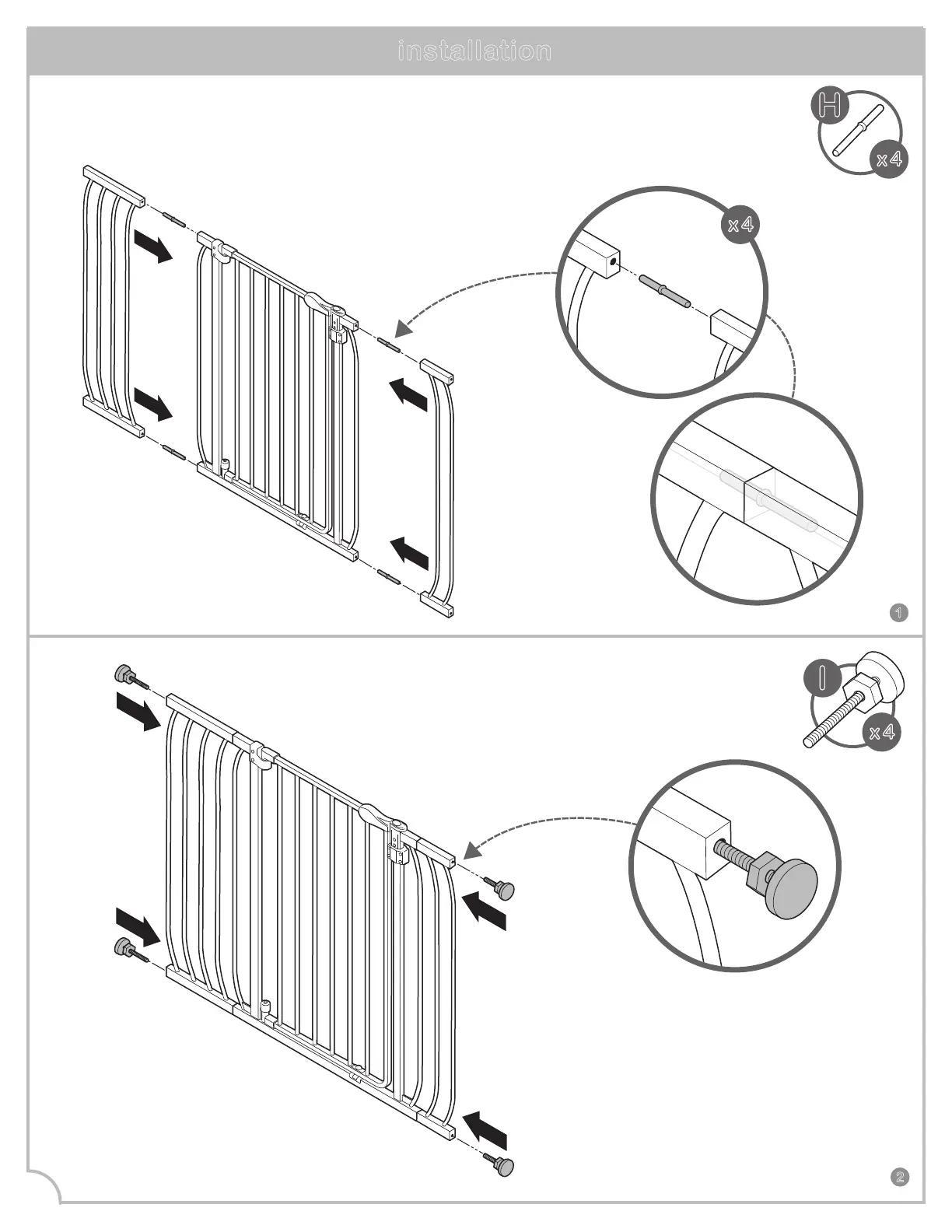

Slide tension bolts
into upper and lower holes
on both sides of
extension frames
(or into the gate frame if no extensions
are being used).
I
x 4
1
Connect the extension
frames to the gate frame by
inserting the extension pins into the holes.
H
x 4
x 4
