Summer 27980 - Gate Frame Installation; Step 1: Unlock and Open Foot Pedal; Step 2: Position Gate Frame

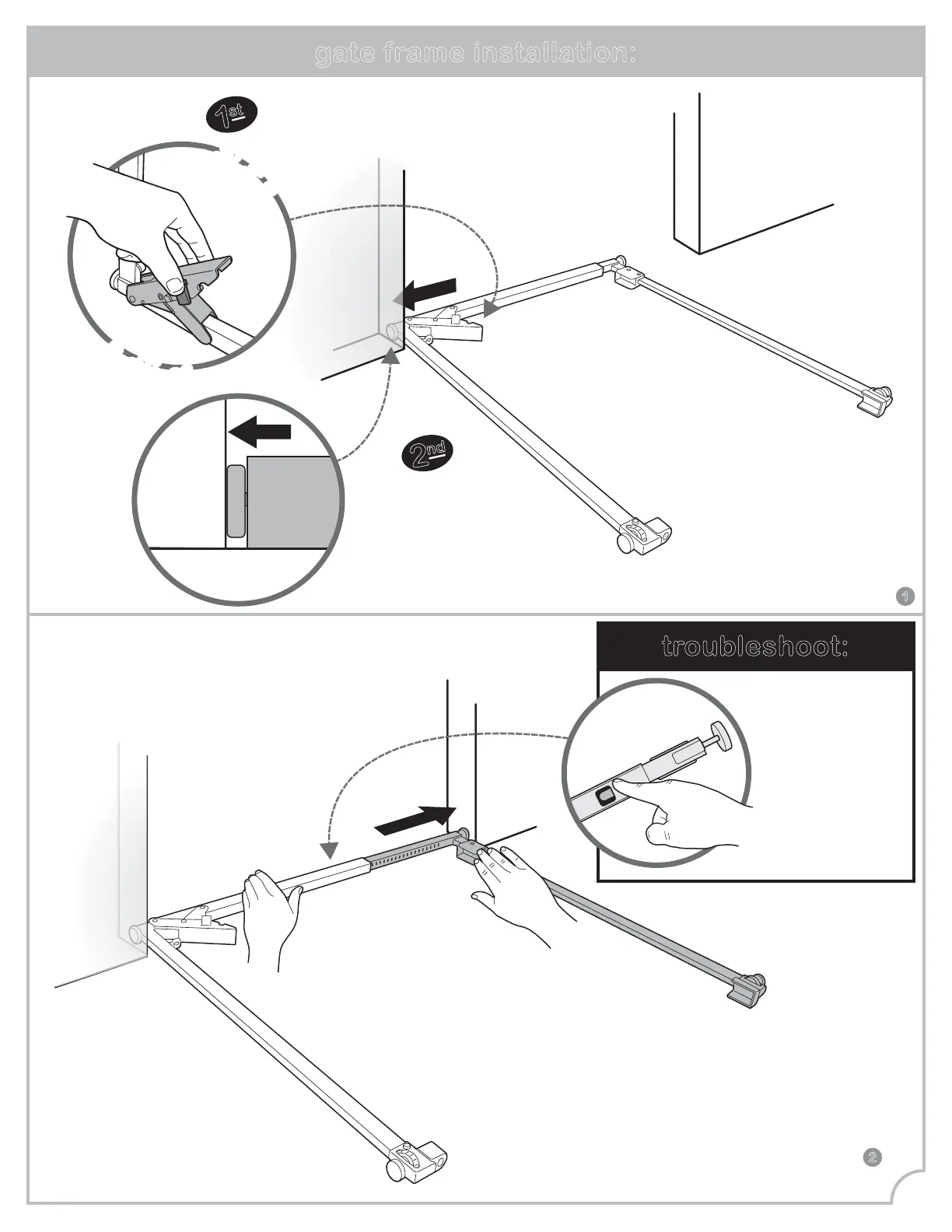

gate frame installation:
If you accidentally
extend the gate frame
out too far, use the
release button on the
bottom of the gate
frame to readjust. See
“troubleshooting”
section for more
details.
Extend gate frame
to doorway’s
opposite edge.
troubleshoot:
click!
click!
click!
1
st
Unlock and
open the
foot pedal.
Unlock and
open the
foot pedal.
2
3
1
2
nd
Lay gate frame
on floor with
foot pedal side
of the gate flush
against wall.
press release
button
Press and
lift foot
pedal latches.
Press and
lift foot
pedal latches.
