Summer SWADDLEME - Product Assembly Process; Frame Base Assembly; Crossbar Integration

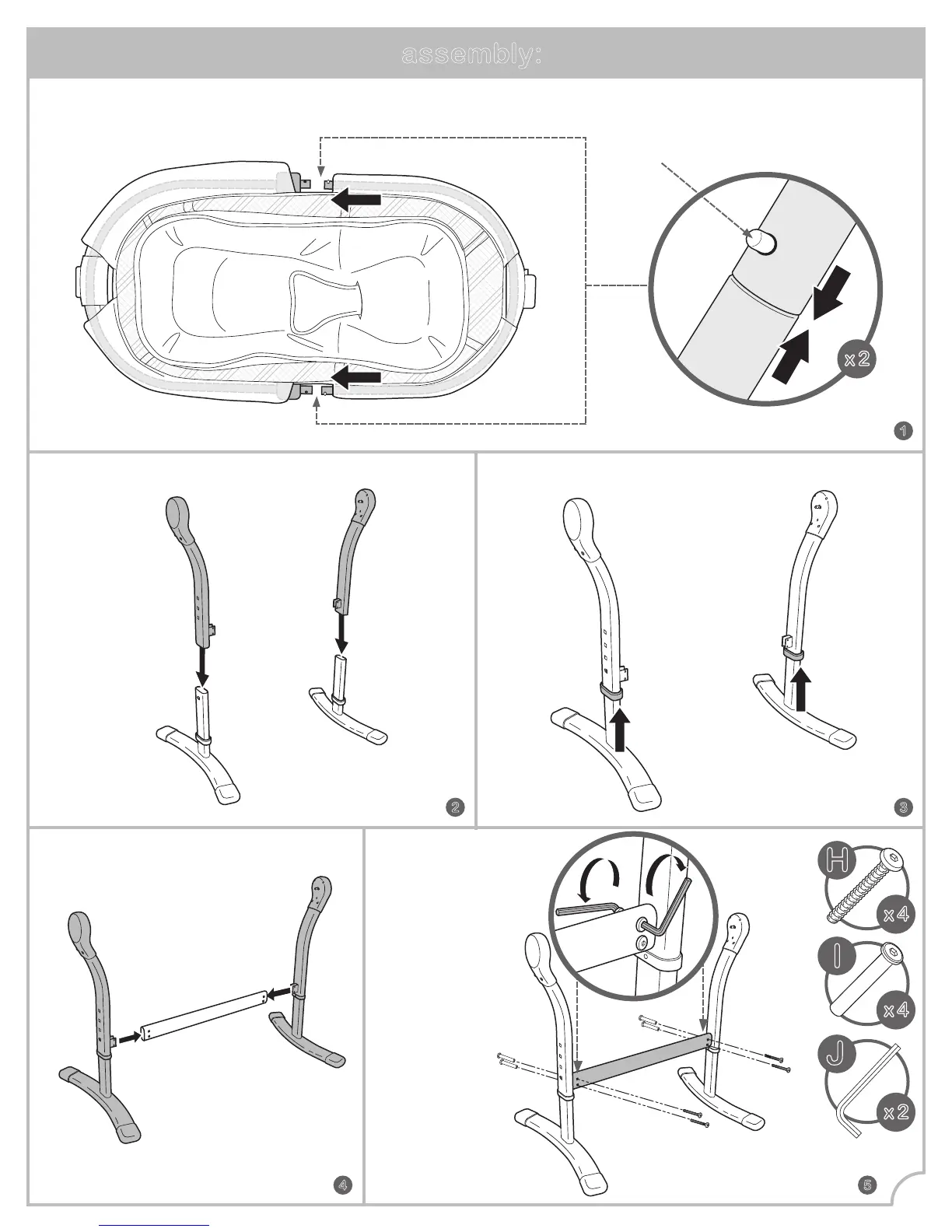

Slide the
Left and Right
Uprights onto
the Left and
Right Feet until
they click.
click!
click!
assembly:
Slide the
Gaskets up until
they connect
with the
Uprights.
Slide the
Uprights into
the Crossbar.
Using the 4
hex screws
and 4 binder
posts, attach
the Crossbar
to the Uprights.
Tighten until
uprights do
not wobble.
Unfold the Basket.
Use the lock-pin to
connect the frame tubing.
lock-pin
click!
click!
click!
H
x 4
x 2
I
x 4
1
2
3
4
5
3
J
x 2
