Applications
8
Summit Audio, Inc.
Applications
Tracking, Live Sound Mixing

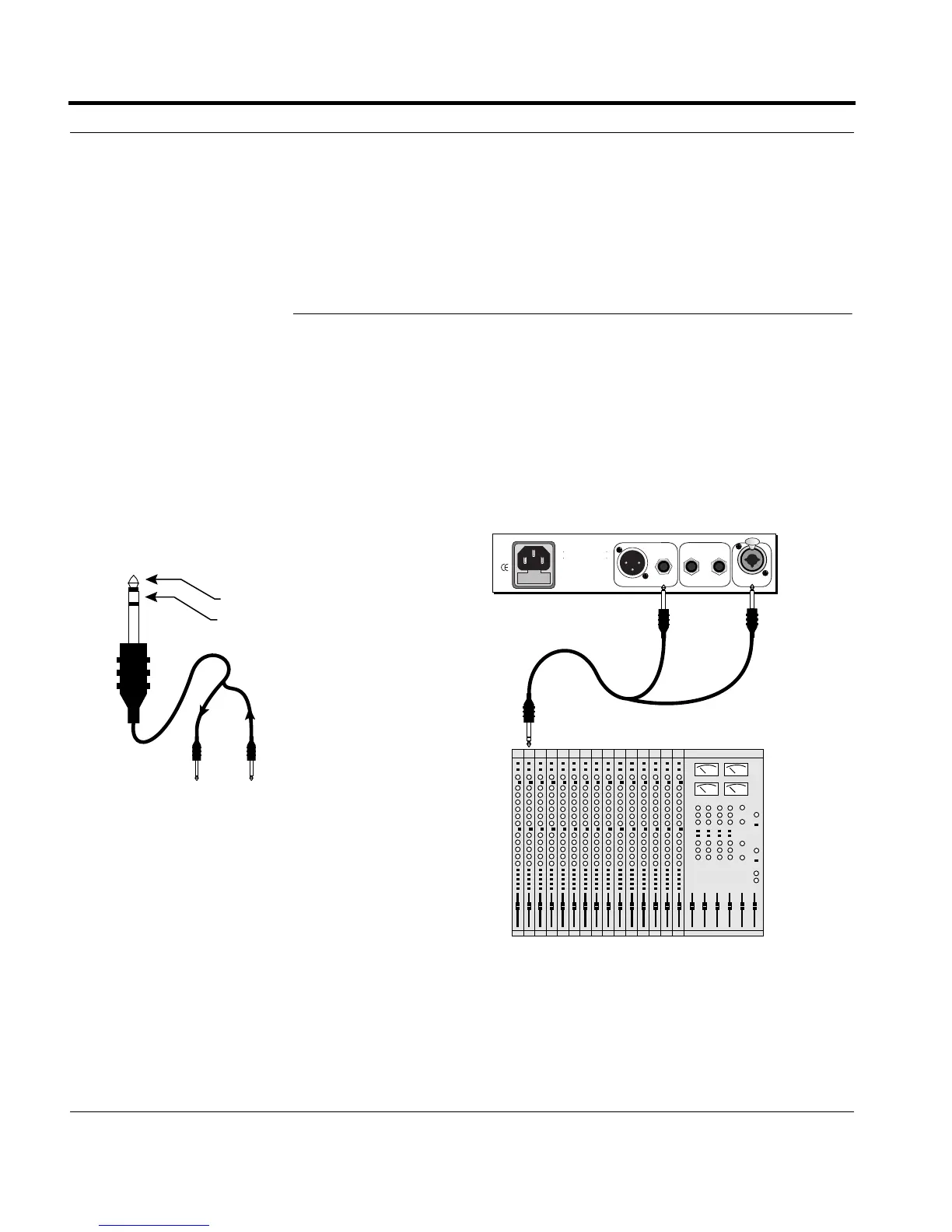

Plug the TLA-50 into the insert jack or patch bay of your
mixing console. If you’re using an external microphone
preamplifier, connect the TLA-50 directly after the preamp.
To TipTo Ring
Channel
Insert
TLA-50
Mixer
OUTPUTS
CLASS A -TUBE LEVELER
MODEL TLA-50
SUMMIT AUDIO INC.
CARMEL, CA USA
115V 50/60 HZ
100V 50/60 HZ
INPUT
+4 BAL. -10 UNBAL.
LINK
INSERT
SIDE
CHAIN
+4 BAL. -10 UNBAL.
20
WATTS
MAX
FUSE
PUSH
Signal Out of Mixer
Signal Return to Mixer
Tip Ring
TLA-50 Input TLA-50 Output
INSERT CABLE
Signal is sent out on tip of plug and
returned to mixer via ring of plug.
Insert Connection
