Step 3:
Mount Control Switch to or near the SCV lever that controls the SCV valve
the manifold is plugged into.
1. Route grey cable with the 2 connectors
to the manifold

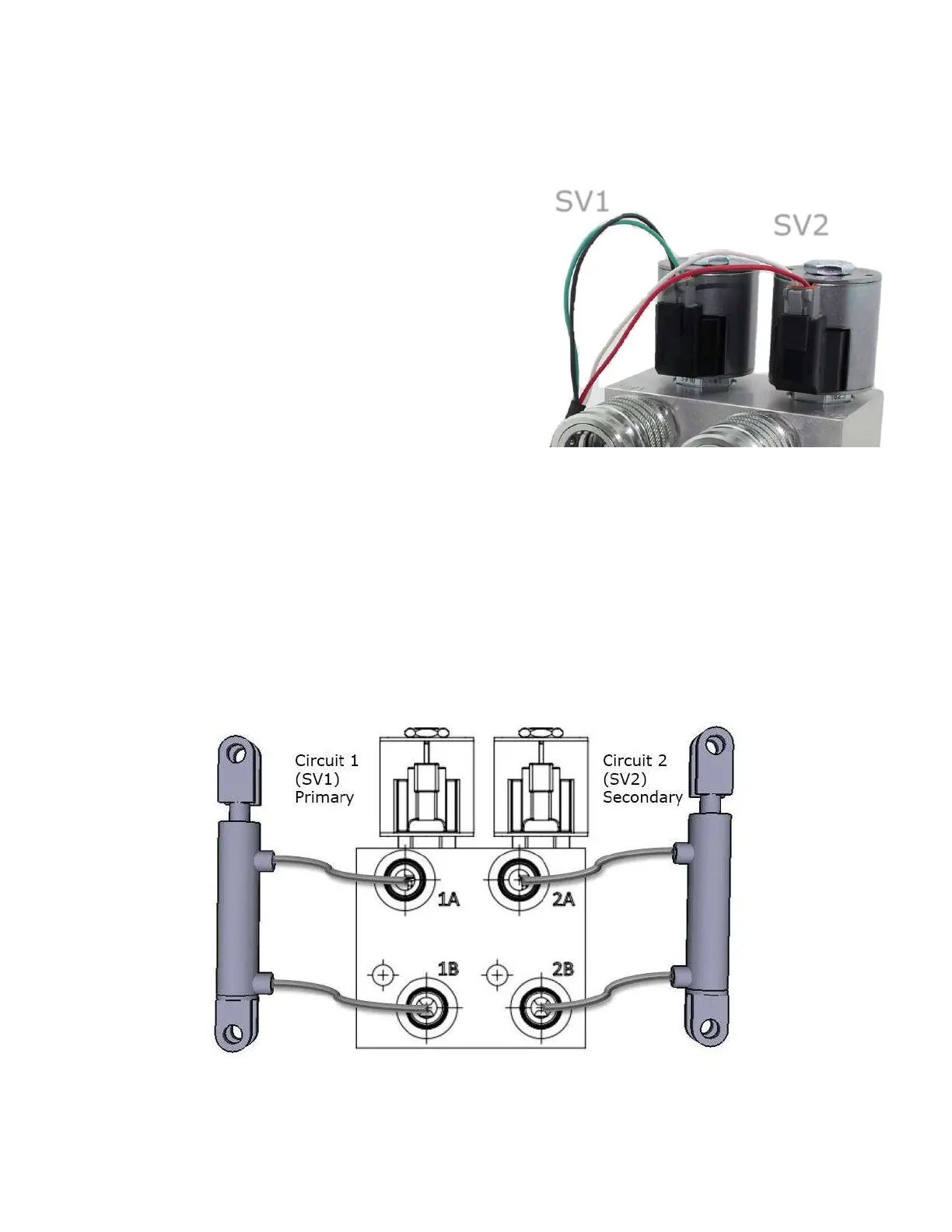

2. Connect the Green and Black wired
connector to the Circuit 1 solenoid,
Labeled SV1
3. Connect the Red and White wired
connector to Circuit 2 solenoid, Labeled
SV2
4. Attach the red power wire to a keyed
power source that is “hot” only when the
engine is running, such as an accessory
terminal.
5. Attach the black wire to a clean metallic
surface, for a metal to metal ground.
Operation (Switch Box Control):
The switchbox contains two switches, the large lighted Rocker switch at the top of
the box selects circuit 1 or circuit 2. Press the switch to the left to operate circuit 1
or to the right to operate circuit 2. Once the circuit is selected, the tractor remote
lever directs flow of oil.
The Red Push Button toggle switch on the side of the switchbox allows you to
“combine” 1 and 2, so you can operate both circuits simultaneously. The valve is
designed be run continuously or intermittently.
SV1
SV2
