17

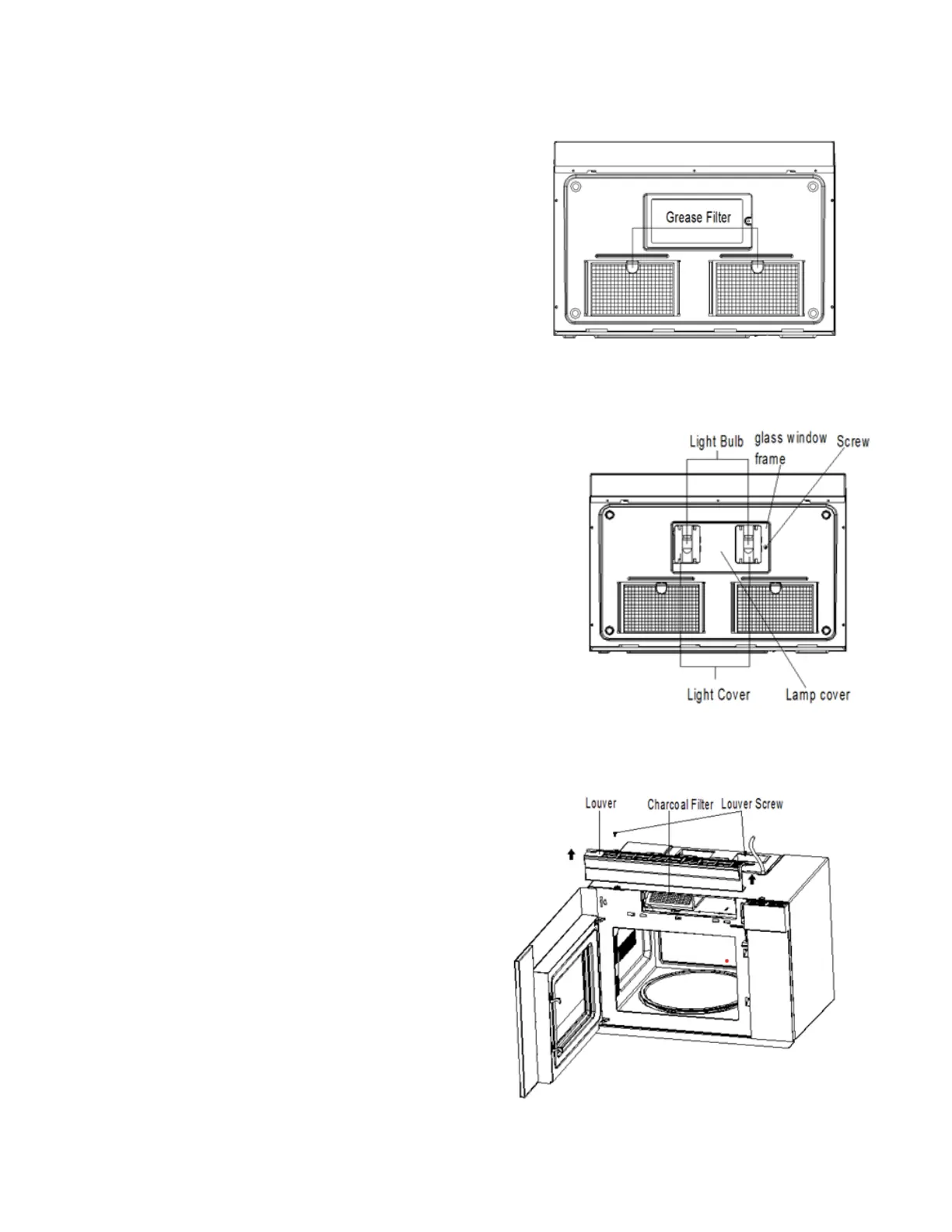

Grease Filters
The grease filters should be cleaned at least once a
month. Never operate the fan or oven without the filters in
place.
1. Pull down slightly on the tab toward the front of the
oven and remove the filter. Repeat for the other filter.
2. Soak the filter in a sink or dish pan filled with hot water
and detergent. DO NOT use ammonia or other alkali;
they will react with the filter material and darken it.
3. Agitate and scrub the filter with a brush to remove
embedded dirt.
4. Rinse thoroughly and shake dry.
5. Replace by fitting the filter back into the opening.
Light
1. Unplug or disconnect the power.
2. Remove the screw on the glass window frame.
3. Unscrew the bulbs from the lamp sockets carefully and
replace them. DO NOT USE A BULB LARGER THAN 30
WATTS.
4. Close the glass window frame and secure with screw
removed in step 2.
CAUTION: The light cover may be very hot. Do not touch the
lamp cover when light is on.
Charcoal Filter
The charcoal filter is used in a non-vented (recirculating) installation. The filter should be changed
every 6 to 12 months, depending on use.
1. Unplug or disconnect power.
2. Use a Phillips head screwdriver to remove the
two screws from the shell top and panel.
3. Open the door, and lift the louver up to separate
it from the oven.
4. Change the charcoal filter.
5. Carefully push the louver back into place, and
replace the screws removed in step 2.
