Summit Solo Pro - Treestand Assembly Guide; Platform and Yoke Assembly; Ladder Section and Platform Connection

PG 3
4
ASSEMBLY

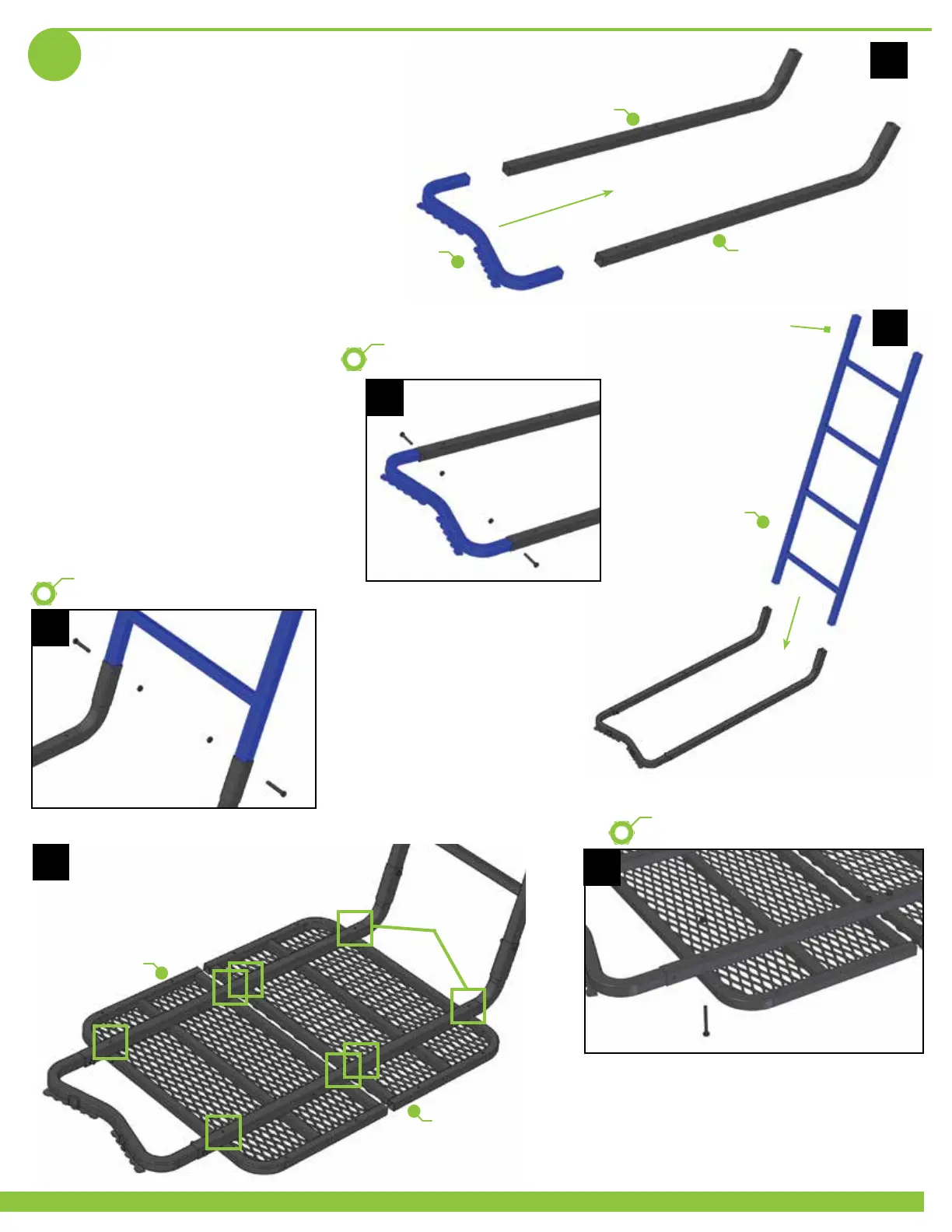

PLATFORM
1. Position two Platform Braces and
the Yoke as shown in figure 1. Note
that the teeth on the Yoke should face
down as shown.
2. Line up the bolt holes and secure
using one 1 3/4” bolt and lock nut per
side as shown in figure 2.
3. Position the Top Ladder Section as
shown in figure 3. Slide the ladder into
the ends of the Platform Braces.
4. Use two 1 3/4” bolts and lock nuts
to secure the ladder section (figure 4).
Leave these hand tight for now.
5. Position the two Platform sections
under the support bars as shown in
figure 5. The expanded metal on the
platforms should face down as shown.
6. Secure the two Platform sections
using eight 2 1/2” bolts and lock nuts at
the locations shown. Leave these bolts
hand tight until they are all started.
7. Wrench tighten all bolts from Step
4 and 6.
YOKE
(PN 82065.300)
1
PLATFORM
BRACE
(PN 82065.200)
PLATFORM
BRACE
(PN 82065.200)
TOP LADDER
SECTION
(PN 82065.910)
COUPLER
3
4
1 3/4” BOLTS, LOCK NUTS -
WRENCH TIGHTEN STEP 7
1 3/4” BOLTS, LOCK NUTS -
WRENCH TIGHTEN
2
2 1/2” BOLTS, LOCK NUTS -
WRENCH TIGHTEN STEP 7
6
BOLT
HOLES
5
PLATFORM
SECTION
(PN 82065.100)
PLATFORM
SECTION
(PN 82065.100)
