Summit Solo Pro - Seat Support and Armrest Installation

LEFT SEAT
SUPPORT
(PN 82065.400)
7
PG 4
www.summitstands.com
ARMREST

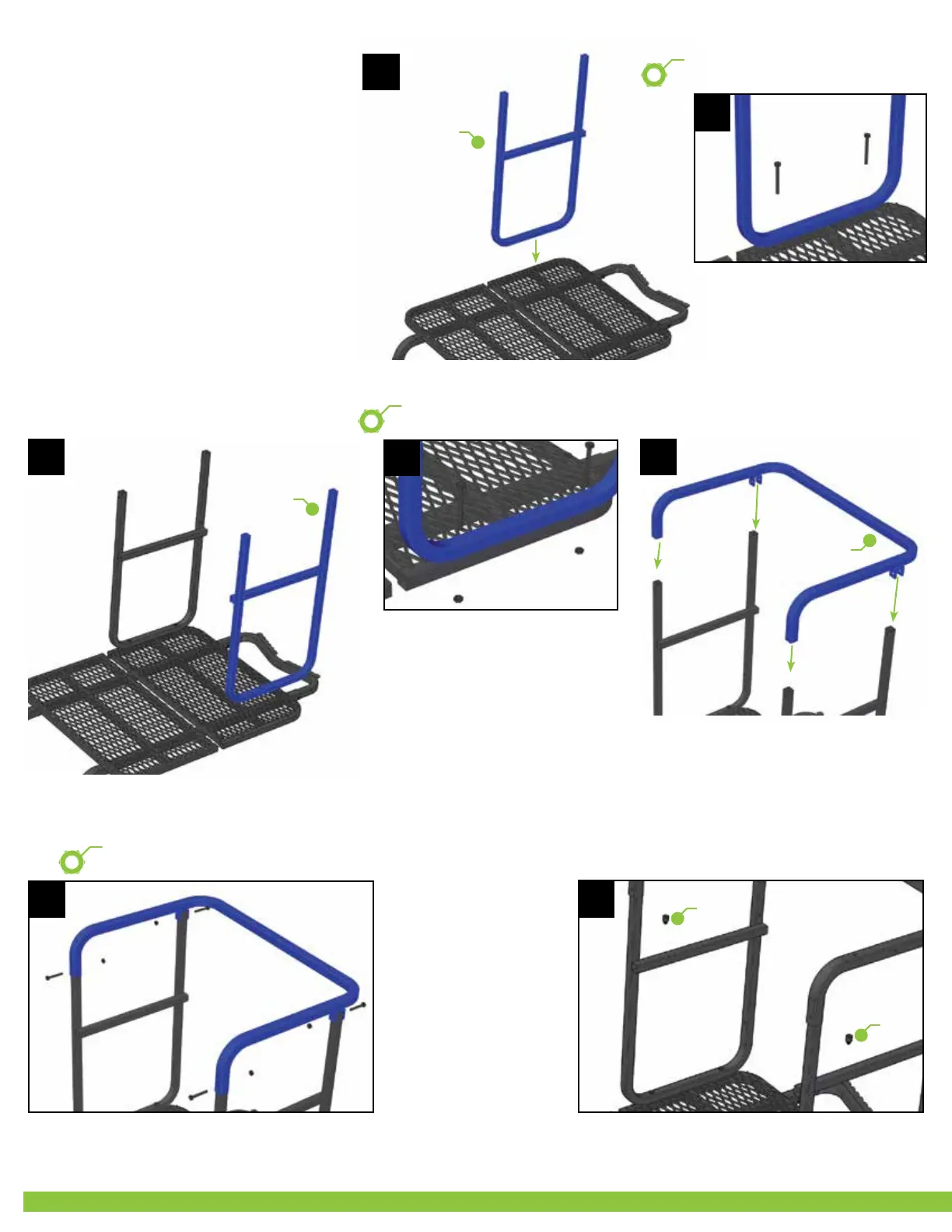

1. Position the Left Seat Support over the
finished platform assembly as shown in
figure 7.
2. Secure using two 2 1/2” bolts and lock
nuts as shown in figure 8. Leave these bolts
hand tight for now.
3. Position the Right Seat Support over the
platform assembly as shown in figure 9.
Secure using two 2 1/2” bolts and lock nuts
(see figure 10). Leave these bolts hand tight
for now.
4. Line up the Armrest as shown in figure 11.
Slide it down over the two Seat Supports and
secure each of the four bolt holes with 1 3/4”
bolts and lock nuts (figure 12).
5. Wrench tighten bolts from Steps 2 and 3.
6. Insert two rubber bumpers in the holes
on the Seat Supports as shown in figure 13.
Insert by pushing while twisting slightly.
8
2 1/2” BOLTS, LOCK NUTS -
WRENCH TIGHTEN STEP 5
9
RIGHT SEAT
SUPPORT
(PN 82065.450)
10
2 1/2” BOLTS, LOCK NUTS -
WRENCH TIGHTEN STEP 5
11
ARMREST
(PN 82065.500)
12
1 3/4” BOLTS, LOCK NUTS -
WRENCH TIGHTEN
RUBBER
BUMPERS
13
